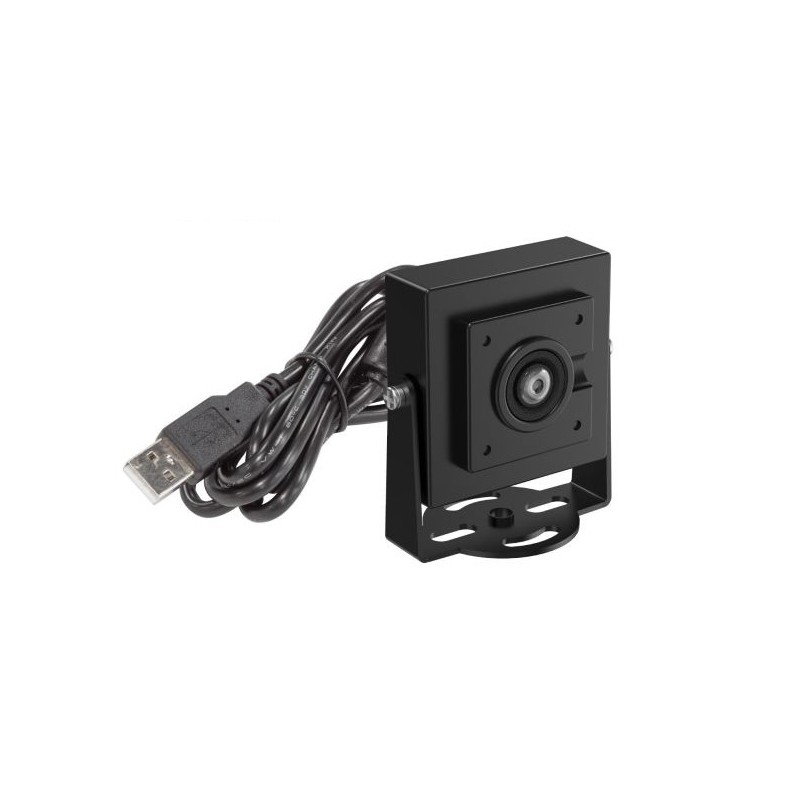

ArduCAM Global Shutter USB2 UVC - USB camera with a 640x480 monochrome sensor

Description

Arducam ezBOX GS is a compact industrial USB camera equipped with a monochrome global shutter sensor, designed for applications requiring extremely fast image capture and precise motion analysis. Thanks to global shutter technology, all sensor pixels are exposed simultaneously, eliminating distortions typical of rolling shutter sensors and enabling accurate capture of fast-moving objects. The camera can record video at up to 800 frames per second at QQVGA resolution, making it suitable for advanced motion analysis systems, quality inspection, and scientific research. The integrated wide-angle lens provides a very large field of view, allowing monitoring of a larger area without the need to install multiple cameras.

The device features a built-in image signal processor (ISP) responsible for real-time image processing and optimization of parameters such as brightness, contrast, and exposure. As a result, the camera delivers a stable and ready-to-use image without requiring intensive processing on the host computer. The camera operates using the USB2 UVC (USB Video Class) standard, ensuring full compatibility with popular operating systems without the need to install additional drivers. Simply connect it to a USB port to start working with image analysis software or machine vision systems.

The durable metal enclosure provides resistance to industrial working environments and ensures stable mounting. The camera also supports external triggering, enabling synchronization of image capture with other devices in measurement or production systems. Additionally, users can configure a Region of Interest (ROI), allowing capture of only a selected part of the image to improve processing performance and achieve even higher operating speeds. Thanks to these capabilities, the Arducam ezBOX GS B0632 camera can be used in applications such as robotics, machine vision, industrial automation, imaging systems, and rapid prototyping.

Features

• Sensor type: monochrome
• Maximum image resolution: VGA
• Active sensor area: 640(H) × 480(V)
• Optical sensor size: 1/7.5″
• Pixel size: 3 µm × 3 µm
• Output format: MJPG / YUV
• Shutter type: Global Shutter
• Color filter: monochrome
• MJPG video resolution:
  • 640 × 480 @ 200 fps
  • 320 × 240 @ 400 fps
  • 160 × 120 @ 800 fps
• YUV video resolution:
  • 640 × 480 @ 60 fps
  • 320 × 320 @ 160 fps
  • 160 × 120 @ 400 fps
• Lens: wide-angle
• Field of view (FOV): 166° (D) × 130° (H) × 100° (V)
• Focus type: fixed focus
• Infrared filter: integrated IR filter 650 nm
• Communication interface: USB 2.0
• Connector: B4B-ZR JST
• UVC standard: Plug & Play, no driver installation required
• External trigger mode support
• Fstrobe support (customizable)
• Supported operating systems: Windows, Linux
• Example software: Amcap (Windows), qv4l2 (Linux)
• UVC control: Brightness, Contrast, Sharpness, PowerLine Frequency, Backlight Compensation, Low Light Compensation, Gain, Exposure (Auto / Manual)
• Operating voltage: 5 V
• Power consumption: 0.8 W
• Operating temperature: 0 °C to 70 °C
• Minimum exposure time: 100 µs
• Dimensions: 32 × 32 × 1.6 mm

Kit contains

• ArduCAM ezBOX VGA GS MONO Wide Angle USB2 UVC camera
• USB2 to B4B-ZR JST cable, 1 m
