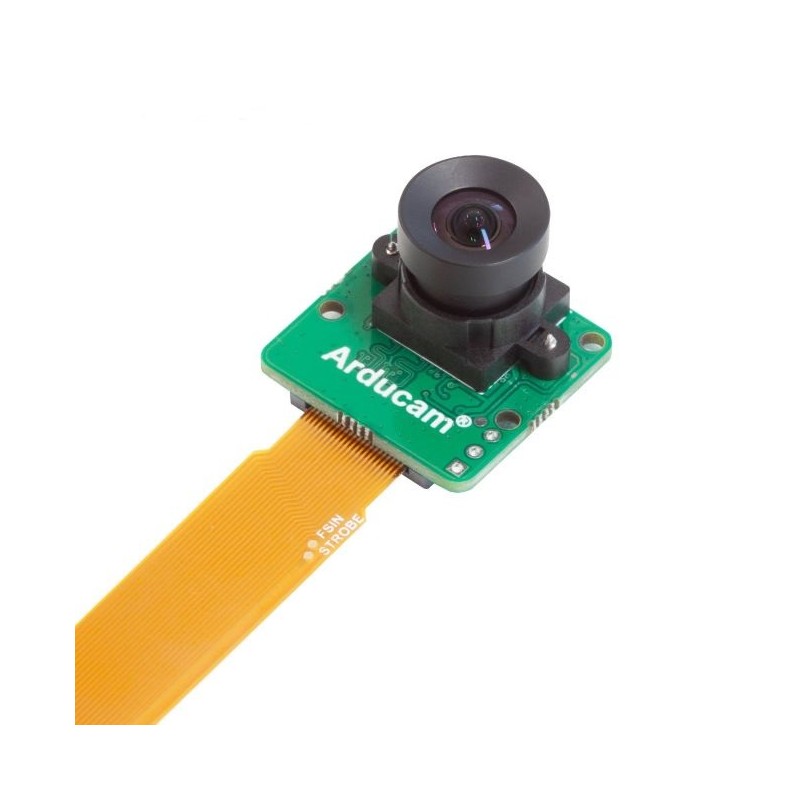

ArduCAM for DepthAI DM1090FFC 1MP OV9282 Global Shutter Mono MIPI Camera - camera with 1MP OV9282 sensor for DepthAI
ID: 586934
5906623404056
zł295.47
Tax included
zł240.22 tax excl.
Camera module with OV9282 sensor designed for DepthAI systems, including the DM1090FFC base board. ArduCAM B0334
Description
Monochrome camera module with a resolution of 1280 × 800 with an OV9282 sensor designed for DepthAI systems, including the DM1090FFC base board. The camera is equipped with a lens with a viewing angle of 75°. It can work at up to 120 fps, and the shutter and excellent low-light sensitivity allow the module to be used for any application that requires gesture detection, tracking, and depth and motion detection. Documentation of the DepthAI system is available on the manufacturer's website.
Features
- Sensor: mono OV9282
- Pixel size: 3 μm x 3 μm
- Resolution: 1280 x 800
- Optical size: 1/4 inch
- Focusing range: 20cm ~ infinity
- With IR filter, sensitive to visible light
- Output interface: MIPI 2-Lane
- Output formats: RAW8 / RAW10
- Maximum image transfer rate: 1280 x 800 at 120 fps
- Dimensions: 24 x 25mm
- Lens: M12 lens with low distortion
- EFL: 2.8mm
- F.N: 2.8
- HFOV: 75 °
Kit contains
- ArduCAM 1MP OV9282 Global shutter Mono MIPI Camera
- FPC cable 22-pin to 26-pin 150 mm
586934
Data sheet
- Resolution
- 1 MPx
- Interface
- MIPI CSI-2
- Sensor
- OV9282
- IR filter
- Yes
- Lens assembly
- M12
Responsible person BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
