USB 3.0 UVC camera with a 5 MP color global shutter sensor, a low-distortion M12 lens, and an onboard ISP, designed for vision systems, robotics, and applications requiring precise motion capture. ArduCam B0539

4 weeks
On request
Kamami is the official distributor of ArduCAM cameras and accessories. All products of this brand in our offer are original and come directly from the manufacturer.

Description

The ArduCam B0539 camera is designed for vision systems that require precise capture of fast-moving objects, high sensitivity, and stable image quality. The integrated 5 MP color OG05B10 image sensor (2592 x 1944) with a global shutter enables simultaneous exposure of the entire sensor area, eliminating motion artifacts typical of rolling shutter sensors.

The camera supports video streaming at up to 25 fps at full 5 MP resolution via the USB 3.0 interface and remains backward compatible with USB 2.0. An onboard ISP performs image processing directly on the device, including demosaicing, gamma correction, and color correction, ensuring consistent and repeatable image quality without additional load on the host system.

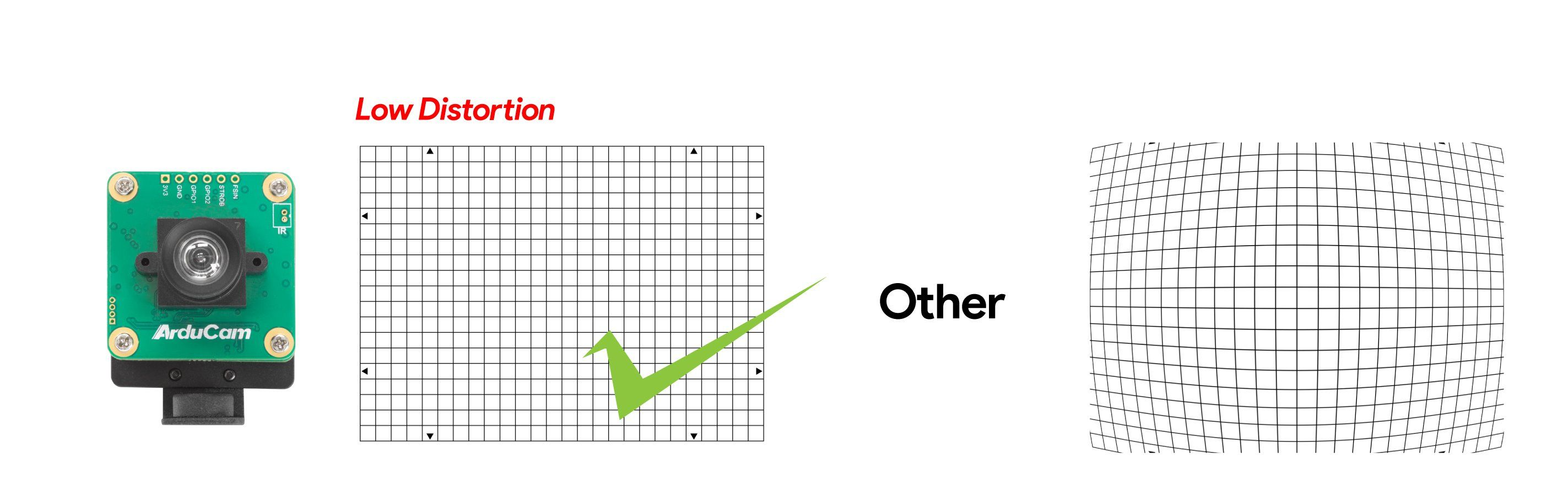

The low-distortion M12 lens provides a wide field of view and high image sharpness, making the camera suitable for stereo vision systems, structured light, object identification, SLAM, and robotic applications. UVC compliance allows direct connection to Windows and Linux systems without installing additional drivers.

Features

  • Image Sensor
    • Sensor: OG05B10
    • Sensor type: CMOS
    • Sensor resolution: 5 MP
    • Shutter type: Global shutter
    • Optical format: 1/2.53"
    • Pixel size: 2.2 µm x 2.2 µm
    • Active sensor area: 2592 x 1944
  • Video Output
    • Output format: YUY2
    • Resolution and frame rate (USB 3.0): 2592 x 1944 @ 25 fps
    • Resolution and frame rate (USB 2.0): 2592 x 1944 @ 5 fps
  • Lens
    • Focus type: Fixed
    • Lens mount: M12 (S-mount)
    • Focal length (EFL): 3.6 mm
    • Aperture: F2.8
    • Field of view (D/H/V): 95° / 82° / 66°
    • Focus range: 1 m – infinity
    • IR filter: Integrated IR-cut filter, visible light only
  • USB Interface
    • Interface: USB 3.2 Gen 1
    • Backward compatibility: USB 2.0
    • Connector: USB-C
    • Communication standard: UVC
    • Drivers: Not required
  • Functionality and Compatibility
    • Onboard ISP
    • Supported operating systems: Windows, Linux
    • UVC controls: brightness, contrast, saturation, white balance (auto/manual), gain, exposure (auto/manual)
    • Example applications: PotPlayer (Windows), qv4l2 (Linux)
  • Power and Mechanics
    • Operating voltage: 5 V ±5%
    • Power consumption: max. 1.6 W
    • Camera board dimensions: 34 x 34 mm
  • Environmental Conditions
    • Operating temperature: 0°C to 70°C

Kit Includes

  • 1x USB3 UVC Global Shutter 5MP Camera ArduCam B0539 with back cover and tripod adapter
  • 1x USB A to USB-C cable, length 1 m
1203015

Data sheet

Resolution
5MPx
Interface
USB 3.2
Sensor
OG05B10
IR filter
Yes
Lens assembly
M12x0.5
