USB Camera OV2735 2MP 96° Low Distortion - Waveshare 33122
ID: 1202967
zł66.27
Tax included
zł53.88 tax excl.
USB camera based on the OV2735 sensor with a resolution of 2 MP, equipped with a fixed-focus 96° FOV low-distortion lens, USB 2.0 Type-C interface and SH1.0 4-pin connector, intended for vision systems, monitoring and embedded applications. Waveshare OV2735 2MP USB Camera (A)
Description
Waveshare 33122 is a compact USB camera based on the OV2735 image sensor, offering a resolution of 2 MP and a maximum static resolution of 1920 × 1080. The device is designed for vision systems, monitoring, image analysis and embedded projects requiring stable operation, low resource usage and minimal image distortion.
The applied fixed-focus lens with a focal length of 2.88 mm and an aperture of F2.7 provides a wide 96° field of view while maintaining very low image distortion below −0.2%. This allows accurate scene reproduction and makes the camera suitable for applications where correct image geometry is important.
The camera is equipped with a USB 2.0 Type-C interface, offering Plug and Play functionality without the need to install drivers. It enables direct connection to PCs, Raspberry Pi platforms, NVIDIA Jetson kits and other devices supporting USB cameras.
The OV2735 sensor with a size of 1/2.7 inch supports video recording at Full HD 1920 × 1080 at 30 FPS, as well as 1280 × 720 at 30 FPS. The camera supports MJPG and YUY2 formats, ensuring broad compatibility with image processing software.
The module also includes an additional SH1.0 4-pin connector, enabling flexible camera connection in applications with limited installation space.
Features
- Image sensor
- Sensor model: OV2735
- Resolution: 2 MP
- Sensor size: 1/2.7 inch
- Lens
- Type: fixed-focus
- Focal length (EFL): 2.88 mm
- Aperture: F2.7
- Field of view: 96°
- Distortion: below −0.2%
- Focus: fixed
- Image and video
- Photo resolution: 1920 × 1080
- Video recording:
- 1920 × 1080 at 30 FPS
- 1280 × 720 at 30 FPS
- Image formats: MJPG, YUY2
- Interfaces
- Communication interface: USB 2.0
- Connector: USB Type-C

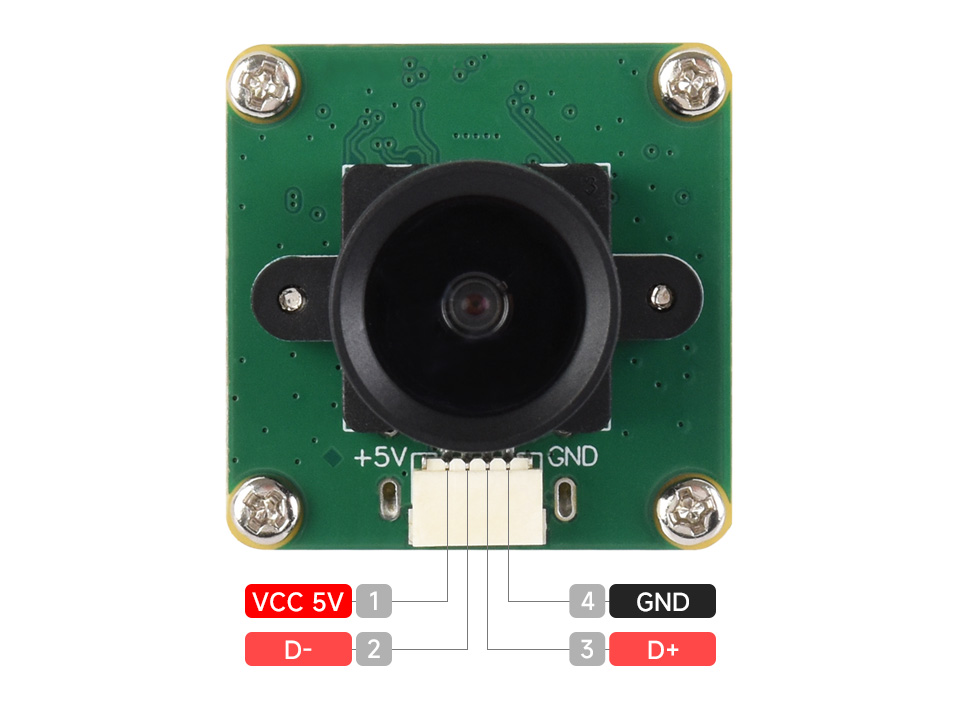

- Alternative connector: SH1.0 4-pin
- Power supply
- Supply voltage: 5 V ± 5%
- Operating conditions
- Operating temperature: 0°C ~ 50°C
- Dimensions
- Module dimensions: 25.00 × 25.00 mm
- Weight
- Weight: 0.015 kg
Kit includes
- 1x OV2735 2MP USB Camera (A)
- 1x SH1.0 4-pin dual-plug cable
1202967
Data sheet
- Resolution
- 2Mpx
- Interface
- USB typ C
- Sensor
- OV2735
- IR filter
- No
- Lens assembly
- none
