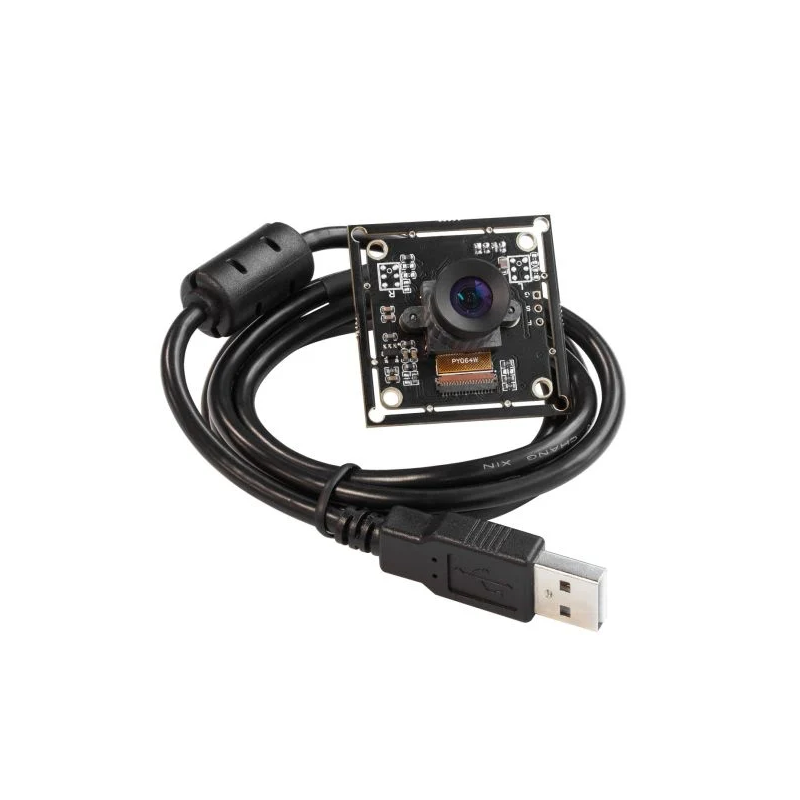

ArduCAM 2MP OV2311 Global Shutter USB Camera - USB camera with 2MP OV2311 sensor
ID: 1195318
5902186308053
zł514.26
Tax included
zł418.10 tax excl.
A monochrome camera with a 2MP OV2311 sensor and global shutter, ideal for capturing dynamic scenes without distortion. Equipped with a wide-angle M12 lens, it's suitable for applications such as eye tracking, biometrics, and AR/VR, while the lack of an IR filter allows for operation in low-light conditions. UVC compatibility and USB power ensure easy connection to a variety of devices, making it a versatile tool for professionals and hobbyists. ArduCAM B0322
Description
The ArduCAM 2MP Global Shutter USB camera is a monochrome USB camera based on the OV2311 sensor with a global shutter, delivering high-quality imaging in dynamic scenes. Thanks to global shutter technology, it eliminates distortions typical of rolling shutter cameras, enabling precise capture of fast-moving objects. The low-distortion M12 lens with a wide 75° field of view makes this camera ideal for applications such as eye tracking, gesture recognition, facial biometrics, and AR/VR. It does not have an IR filter, making it suitable for infrared-sensitive applications, such as low-light environments. With UVC compliance, it requires no additional driver installation—simply connect it via USB to a computer, Raspberry Pi, or Android device. USB power supply makes it convenient and portable. This is a reliable tool for professionals and enthusiasts in electronics and computer vision.
Features
- Sensor: 1/2.9" OV2311
- Monochrome with global shutter
- Resolution: 2MP (1600 x 1200)
- Data format: MJPG / YUY2
- Frame rate (MJPG): up to 50fps at various resolutions (1600x1200, 1280x960, 720p, etc.)
- Frame rate (YUY2): 5fps at 1600x1200, 720p, 800x600
- Lens: M12, fixed, low distortion
- Field of view: 75° (horizontal)
- No IR filter, infrared light sensitive
- USB interface: B4B-ZR(LF)(SN) connector
- Power supply: 5V via USB, current draw up to 200mA
- Adjustable parameters: exposure, white balance
- Compatibility: Windows, Linux, Mac (UVC-supported systems)
- Operating temperature: from -20°C to +70°C
- Dimensions: 38 x 38 mm
- USB cable length: 1 meter
Kit contains
- Arducam 2MP Global Shutter USB
- 1m USB cable
1195318
Data sheet
- Resolution
- 2Mpx
- Interface
- USB
- Sensor
- OV2311
- IR filter
- No
- Lens assembly
- M12
