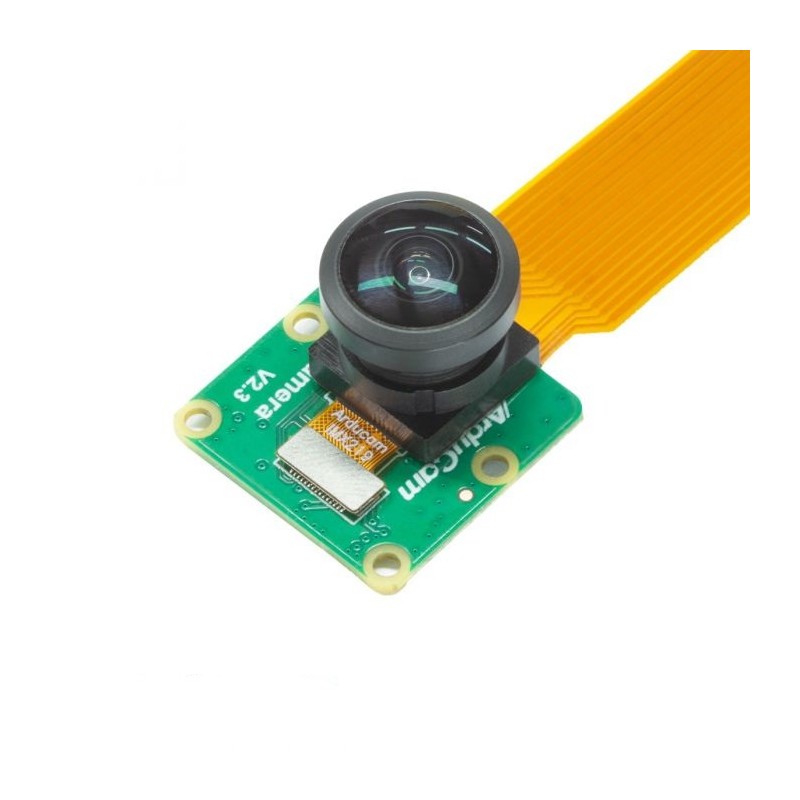

ArduCAM IMX219 Camera - module with IMX219 camera and "Fisheye" lens for Raspberry Pi CM
ID: 586861
5906623403684
zł115.66
Tax included
zł94.03 tax excl.
Module with 8 Mpx camera with IMX219 sensor and wide-angle "fisheye" lens. Designed for Nvidia Jetson Nano and Raspberry Pi Compute Module. ArduCAM B0287
Description
Module with IMX219 sensor designed for use with Raspberry Pi Compute Module or Nvidia Jetson Nano. The sensor used has an 8 Mpx matrix and allows you to record video at resolutions 30fps @ 8MP, 60fps @ 1080p, 180fps @ 720p. The camera is equipped with a wide-angle "fisheye" lens with a viewing angle of 220 ° with an M12 mount. It uses the MIPI CSI-2 interface specially designed to work with cameras. Can be used in drone, robot and 3D scanning applications. The set with the camera includes a 15-pin tape for connecting the camera to the Raspberry Pi model B and A, and a 22-pin tape for the Raspberry Pi Zero 2W and the Compute module.
Features
- Works with Raspberry Pi Compute Module or Nvidia Jetson Nano - not compatible with Raspberry Pi 3B, 3B+, 4B
- Matrix: IMX219
- Resolution: 8 Mpx
- Data format: 30fps @ 8MP, 60fps @ 1080p, 180fps @ 720p
- Optical size: 1/4 inch
- M32076M20 lens
- Viewing angle: 220 (H)
- EFL: 0.76mm
- F.NO: 2.1
- Output interface: MIPI CSI-2 2-lane/4-lane
- Output formats: 8/10-bit RAW
- Integrated IR filter
Kit contains
- Arducam IMX219 Camera Module with Fisheye lens
- 15-pin FPC cable 15 cm
- Adapter 15-pin to 22-pin 30 cm
586861
Data sheet
- Resolution
- 8MPx
- Interface
- MIPI CSI-2
- Sensor
- Sony IMX219
- IR filter
- Yes
- Lens assembly
- M12
