ArduCAM 5MP OV5647 Fisheye Camera - camera with 5MP OV5647 sensor for Raspberry Pi
ID: 1195251
5902186307902
zł144.93
Tax included
zł117.83 tax excl.
A compact 5MP Fisheye camera with an M8 lens, designed specifically for the Raspberry Pi, utilizes a fast CSI interface for lag-free image transmission. With an ultra-wide viewing angle of up to 210° and interchangeable lenses, it's ideal for drones, robotics, VR, and panoramic surveillance. It supports 2592x1944 still image formats and 1080p30, 720p60, and 640x480p90 video modes, while full compatibility with Raspberry Pi OS and libcamera simplifies system integration. ArduCAM B0404
Description

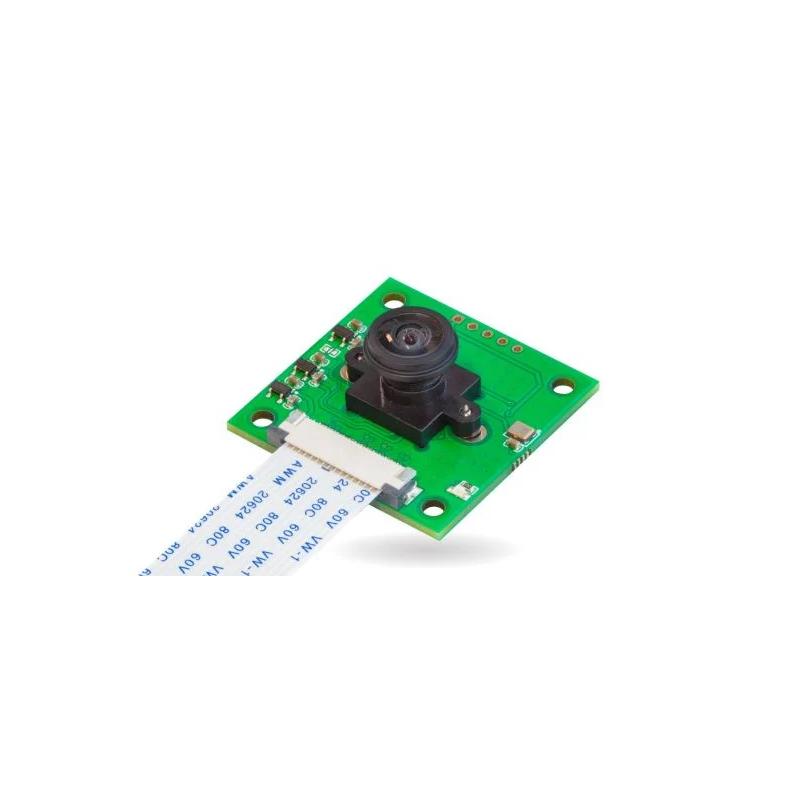

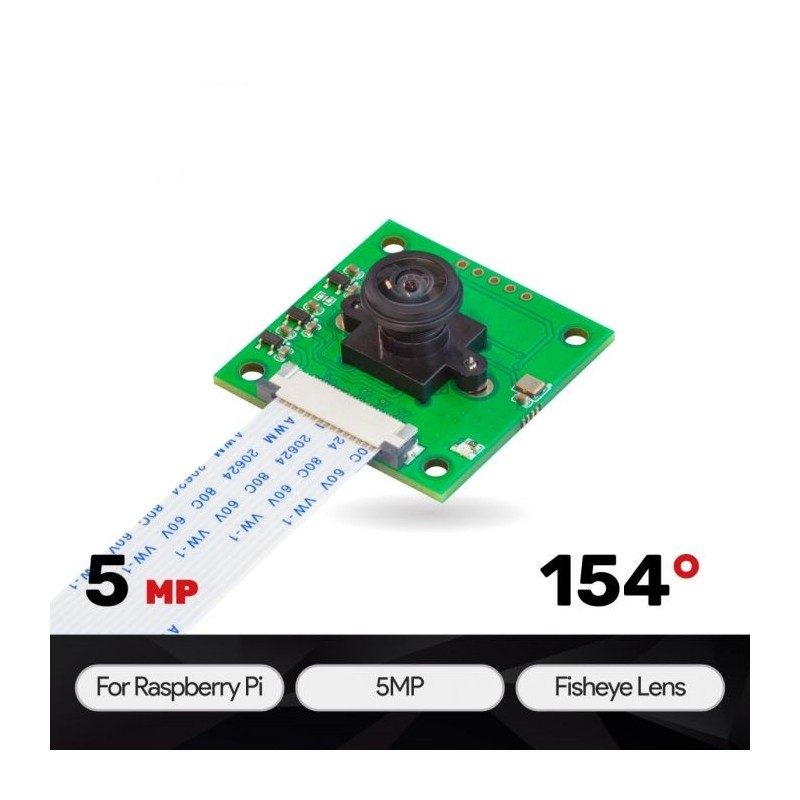

The ArduCAM OV5647 5MP Fisheye camera module with an M8 lens is specifically designed as an add-on for Raspberry Pi single-board computers. It connects via the high-speed CSI (Camera Serial Interface), optimized for low-latency image transmission and high bandwidth.
Its compact form factor and interchangeable lens design make it an excellent choice for mobile applications, drones, robotics, and vision systems that require a wide field of view. The integrated fisheye lens provides up to a 210° diagonal field of view, making it ideal for surveillance, panoramic imaging, and VR applications. The camera supports still images at a resolution of 2592 × 1944 and video recording in 1080p30, 720p60, and 640×480p60/90 modes. It is compatible with the latest Raspberry Pi OS and supported by libcamera and other camera frameworks.
Features
- Image sensor: OmniVision OV5647 (5MP)
- Optical size: 1/4''
- Shutter type: Rolling Shutter
- Focus type: Manual (adjustable focus)
- Max image resolution: 2592 × 1944 pixels
- Video modes: 1080p30, 720p60, 640×480p60/90
- Supported platforms: Raspberry Pi 5, 4B, 3B+, 3B, 2, Model A/B/B+, Zero, Zero W, Zero 2W
- Output formats: JPEG, JPEG + DNG, BMP, PNG, YUV420, RGB888
- Fisheye M8 lens with field of view:
- Diagonal: 210°
- Horizontal: 154°
- Vertical: 111°
- Effective focal length (EFL): 4.15 mm
- Back focal length (BFL): 2.87 ± 0.1 mm
- Built-in 650nm IR-cut filter (visible light only)
- Lens mount: M8 x P0.35
- Lens dimensions: 12.8 x 13.01 mm
- Weight: 3 g
Kit contains
- ArduCAM 5MP OV5647 camera module with Fisheye lens
- 15-pin to 15-pin FPC cable (15 cm)
- 15-pin to 22-pin FPC cable (15 cm)
1195251
Data sheet
- Resolution
- 5MPx
- Interface
- CSI
- Sensor
- OV5647
- IR filter
- Yes
- Lens assembly
- M8
Manufacturer BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
Responsible person BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
