A 12.3MP camera module based on the Sony IMX378 sensor and fully compatible with the Raspberry Pi (including the Pi 5, 4, 3, Zero, and Compute Module). It offers a 4056 x 3040 px image and a wide 82.4° viewing angle with an IR-cut filter, making it ideal for industrial applications, surveillance, and AI projects. With a bright lens and ready-to-go functionality, the camera delivers high image quality even in low light. ArduCAM B0412

24h
Available
Available quantity: 2
Kamami is the official distributor of ArduCAM cameras and accessories. All products of this brand in our offer are original and come directly from the manufacturer.

Description

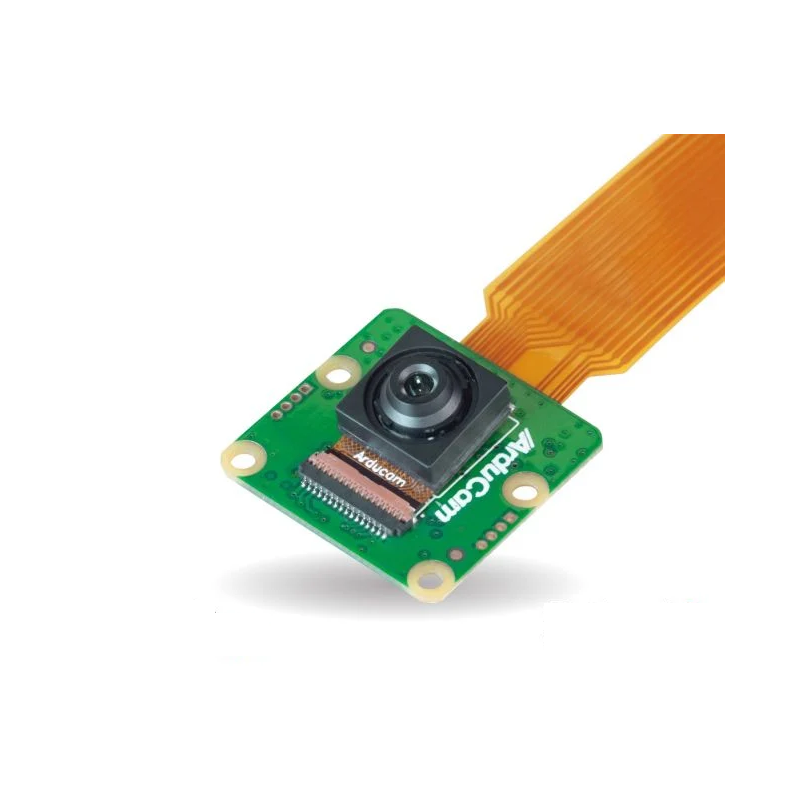

The ArduCAM IMX378 camera module is a high-quality vision solution based on the Sony IMX378 image sensor with a resolution of 12.3 MP. It is specifically designed for full compatibility with Raspberry Pi – including the latest models (Pi 5, Pi 4) as well as older ones like Pi 3, Zero, and Compute Modules. With its high resolution of 4056 × 3040 pixels and a wide diagonal field of view (82.4°), this camera is ideal for applications such as industrial vision systems, outdoor surveillance, and AI/ML projects. It delivers excellent image quality in daylight conditions thanks to the integrated 650nm IR-cut filter, which blocks infrared interference. The f/1.8 aperture lens ensures bright images even in lower light conditions. The module is ready to use out of the box – simply connect it to a Raspberry Pi and use the official software without additional configuration.

Features

  • Sensor model: Sony IMX378
  • Sensor type: 1/2.3'' (7.857 mm)
  • Maximum resolution: 4056 × 3040 (12.3MP)
  • Shutter type: Rolling Shutter
  • Pixel size: 1.55μm × 1.55μm
  • Color filter type: Bayer RGB
  • Output format: RAW10 / RAW12
  • Supported resolutions and frame rates:
    • RAW10: 1332x990 @ 120fps
    • RAW12: 2028x1080 @ 50fps
    • RAW12: 2028x1520 @ 40fps
    • RAW12: 4056x3040 @ 10fps
  • Lens: f/1.8, EFL: 4.74mm, FoV: 82.4° (diagonal)
  • Focus: Fixed Focus
  • Focusing range: 50 cm – infinity
  • Built-in 650nm IR-cut filter (visible light only)
  • Compatibility: Raspberry Pi 5/4/3/Zero/CM3/CM4
  • Dimensions: 25 x 24 mm

Kit contains

  • ArduCAM IMX378 camera module
  • FPC cable 15-pin to 22-pin, 150 mm
  • FPC cable 22-pin to 22-pin, 150 mm
1195248

Data sheet

Resolution
12 MPx
Interface
CSI
Sensor
Sony IMX378
IR filter
Yes
Lens assembly
none
