Raspberry Pi Camera Module 3 Wide NoIR
ID: 1183088
5056561800899
zł179.90
Tax included
zł146.26 tax excl.
The official camera module designed to work with Raspberry Pi minicomputers. Equipped with a Sony IMX708 sensor with a resolution of 12 Mpx and a lens with a viewing angle of 75 ° with autofocus. Version without IR filter. Raspberry Pi SC0875
Description
The Raspberry Pi Camera Module 3 NoIR camera module, equipped with a Sony IMX708 matrix with a resolution of 12 Mpx and a lens with a viewing angle of 120 degrees with autofocus controlled via the I2C interface. Due to the lack of an IR filter, the camera is adapted to work at night and is sensitive to infrared light. Compared to the previous module, sensitivity in difficult lighting conditions has been improved and hardware HDR support has been added. The PDAF (Phase detection auto focus) technology is responsible for smooth focusing. The camera is compatible with all Raspberry Pi models except the Raspberry Pi 400, however a special adapter will be required to connect to the Zero series. The module is supported by the Picamera2 Python library.
Kamami is an official distributor of Raspberry Pi minicomputers and dedicated accessories
Features
- Works with all Raspberry Pi computers except the 400 (Zero, Zero W and Zero 2W models require a special adapter)
- Sony IMX708 sensor with a diagonal of 7.4 mm
- Resolution 11.9 Mpx
- Autofocus controlled by I2C
- PDAF (Phase detection auto focus) - provides smooth focus adjustment
- Built-in lens with a viewing angle of 120°
- No IR filter
- High signal-to-noise ratio (SNR)
- DPC (Defect Pixel Correction) function
- Hardware HDR support (max. 3 Mpx)
- Pixel size: 1.4μm × 1.4μm
- Maximum photo size: 4608 x 2592 px
- Supported video formats: 1080p50, 720p100, 480p120
- Output format: RAW10
- Improved sensitivity in difficult lighting conditions
- Compatibility with Picamera2 library
- 15x1mm FPC connector
- Dimensions: 25x24x12.4mm
Kit Includes
- Camera module
- FFC tape
1183088
Data sheet
- Resolution
- 11,9 Mpx
- Interface
- MIPI CSI-2
- Sensor
- IMX708
- IR filter
- No
- Lens assembly
- none
Manufacturer BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
Responsible person BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
Other products in the same category (16)
2 MP camera module with OV2311 sensor, compatible with Raspberry Pi. Without IR filter, equipped with shutter and M12 lens mount. Acrylic housing included. ArduCAM B0381
zł448.86
4 weeks
No product available!
Monochrome VGA camera module with HM0360 sensor working with Raspberry Pi Pico. It uses 1 bit video interface and I2C to configure the registers. ArduCAM B0319
zł101.30
24h
Available quantity: 2
Available
1 MP monochrome camera module with OV9281 sensor working with Raspberry Pi. Equipped with shutter and IR filter. Waveshare OV9281-110 Camera
zł145.61
24h
Available quantity: 4
Available
The Pi NoIR is a Raspberry Pi camera module with no Infrared filter for night time and low light photography using an Infrared light. Useful for wildlife research, science projects, night time security or making artistic photo’s. B0036
zł207.17
24h
Available quantity: 5
Available
A miniature 16MP camera with a Sony IMX519 sensor, designed for projects requiring compact solutions. With autofocus and 16MP resolution, it offers high image quality, ideal for surveillance, robotics, and image recognition systems. Compatible with Raspberry Pi and Jetson platforms, it supports Full HD recording and connects via the MIPI CSI interface, ensuring easy integration with embedded systems. ArduCAM B0389
zł156.00
24h
Available quantity: 1
Available
IMX462 IR-CUT Camera (A) is a versatile camera with a starlight sensor and IR-CUT mechanism, delivering high image quality in both daytime and nighttime conditions. It is ideal for surveillance projects, image recognition systems, and applications using Raspberry Pi that require reliable performance under varying lighting conditions.
zł171.11
24h
Available quantity: 3
Available
Miniature camera module with OV5647 5MP sensor dedicated to Raspberry Pi Zero V1.3 and Zero W. Equipped with a lens with a viewing angle of 70°. Waveshare RPi Zero V1.3 Camera
zł51.29
24h
Available quantity: 17
Available

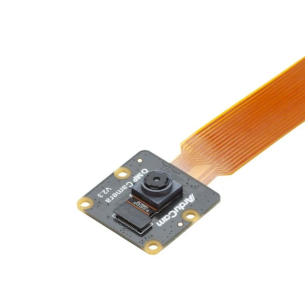

The 8MP NoIR camera is designed for low-light conditions and complete darkness. Utilizing a Sony IMX219 sensor without an IR filter, it captures images in infrared light, ideal for nighttime surveillance or wildlife observation. Compatible with the Raspberry Pi and equipped with a CSI connector, it provides high image quality and full support for standard resolutions and video modes. ArduCAM B0395
zł74.61
4 weeks
No product available!
Camera module with OV5647 sensor that works with Raspberry Pi. It has an integrated IR filter and a Fisheye lens with a 220° viewing angle. ArduCAM B0428
zł167.27
24h
Available quantity: 3
Available
5MP camera for Raspberry Pi minicomputers (1080p resolution). Equipped with OmniVision OV5647 sensor.
zł22.23
24h
Available quantity: 92
Available
The IMX378-79 camera module features a Sony 12.3 MP (4056x3040 px) sensor with a 79° viewing angle, ideal for industrial and inspection applications requiring the highest image quality. With MIPI-CSI-2Lane interface, Raspberry Pi compatibility and low distortion, it provides smooth and precise image capture. DFRobot SEN0632
zł129.27
24h
Available quantity: 2
Available
A set with four OV9281 cameras with a resolution of 1MP and an expansion module for Raspberry Pi, Jetson Nano and Xavier NX, which allows you to simultaneously connect four cameras to the minicomputer. ArduCAM B0267
zł1,544.72
4 weeks
No product available!

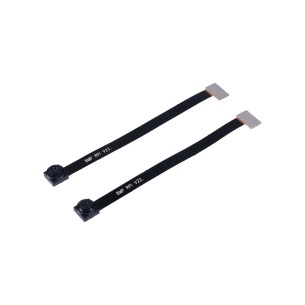

Camera module 8 MPx with IMX219 sensor and lens with a viewing angle of 77°. To be used as a replacement on the RPI Camera Board V2. ArduCAM B0182
