ArduCAM 16MP Autofocus USB Camera - USB camera with 16MP IMX298 sensor + case
ID: 1195315
5902186308046
zł257.38
Tax included
zł209.25 tax excl.
A compact USB camera with a Sony IMX298 sensor, offering high-resolution 16MP, autofocus, and smooth 4K video recording with audio. UVC compatibility means it works without installing drivers on Windows, Linux, macOS, and Android, with image parameter adjustments available directly from within the system. Its robust metal housing and energy efficiency make it an ideal choice for monitoring, 3D printing, machine vision, and DIY projects. ArduCAM B029001
Description
The ArduCAM 16MP Autofocus USB Camera is a compact UVC camera that combines 16 MP resolution with the convenience of a USB 2.0 “plug & play” interface. Powered by the Sony IMX298 1/2.8” sensor, it delivers exceptionally sharp images (4656 × 3496 px) and accurate color reproduction. The built-in autofocus automatically adjusts focus from 10 cm to infinity, eliminating the need for manual adjustment. The camera records smooth 4K video at 30 fps (MJPG 2320 × 1744/1080p/720p) and captures audio thanks to an integrated microphone.
The metal housing with a swivel mount enhances durability and simplifies installation in surveillance systems, 3D printers, or machine vision applications. Compatibility with native UVC drivers on Windows, Linux, macOS, and Android ensures immediate operation with no additional setup. The camera supports system-level control of exposure, white balance, saturation, and contrast. Its relatively low power consumption makes it energy-efficient, and the long (1 m) USB cable allows for flexible positioning. Thanks to its compact size, it easily integrates into DIY projects or professional setups. It’s the perfect solution for users seeking high-quality imaging, sound, and reliability in one small camera.
Features
- Sensor: Sony IMX298, 1/2.8”, color CMOS, 16 MP (4656 × 3496)
- Lens: Autofocus, FOV 60°, focus range 100 mm – ∞
- Integrated IR filter
- Video format: MJPG / YUY2
- Frame rate (MJPG): 10 fps @ 4656×3496, 30 fps @ 2320×1744 / 1080p / 720p
- Built-in microphone, mono or stereo audio supported (software-selectable channel)
- Interface: USB 2.0, UVC-compliant, 1 m cable
- Power supply: 5 V DC via USB, max current draw 200 mA
- Automatic functions: exposure, white balance, saturation, contrast, focus
- System compatibility: Windows, Linux, macOS, Android (OTG)
- Mini metal housing with swivel mount
- Operating temperature: –20 °C to 70 °C
- Dimensions: 38 × 38 × 44 mm
Kit contains
- ArduCAM 16MP Autofocus USB Camera in metal housing with mount
- USB 2.0 cable, 1 m
1195315
Data sheet
- Resolution
- 16 Mpx
- Interface
- USB
- Sensor
- IMX298
- IR filter
- Yes
- Lens assembly
- none
Manufacturer BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
Responsible person BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
You might also like
16 MP camera with USB interface. Equipped with a Sony CMOS IMX298 sensor, a lens with a viewing angle of 60° and a microphone. Dedicated to be used with a computer. ArduCAM B0290
zł253.20
24h
Available quantity: 1
Available
Module with IMX298 sensor that works with all versions of the Raspberry Pi. The sensor used has a 16 MP matrix and allows video recording at resolutions 4640x3472/10fps. ArduCAM B0323
zł395.69
24h
Available quantity: 2
Available
Module with IMX298 sensor working with NVIDIA Jetson Nano. The sensor used has a 16 MP matrix and allows you to record video at resolutions of 16MP/30fps. Acrylic case included. ArduCAM B0214
zł301.90
24h
Available quantity: 1
Available
Other products in the same category (16)

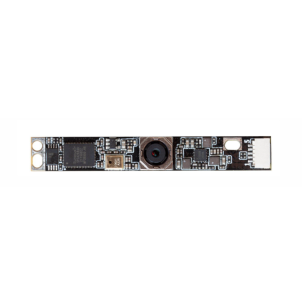

Camera module with USB interface. It is equipped with an IMX179 CMOS sensor with a resolution of 8 MP and a lens with a 63° viewing angle with autofocus function. It has a built-in digital microphone. ArduCAM B0447
