The OV5640 camera module is equipped with a 5 MP sensor and a lens with a wide viewing angle of 120 degrees and minimal distortion. It is perfect for applications related to security systems, monitoring or recording large areas. Adafruit 5839

4 weeks
Awaiting delivery
Kamami is the official distributor of Adafruit modules and development kits. All boards of this brand in our offer are original and come directly from the manufacturer.

Description

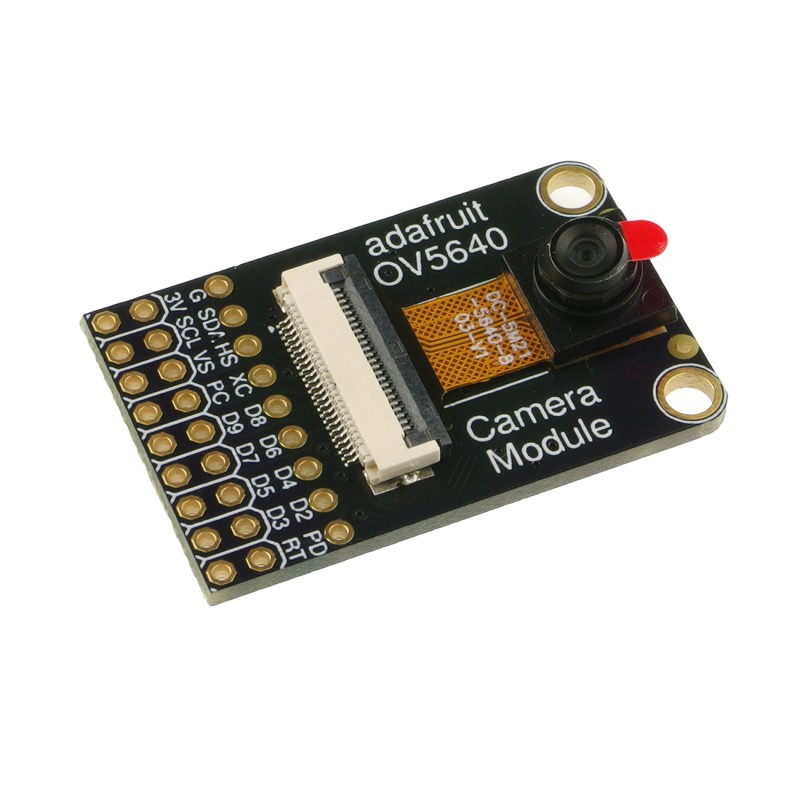

The Adafruit OV5640 camera module is a high-quality camera, equipped with a 5 MP sensor and a lens with a wide 120-degree viewing angle. It offers a complete electronic system necessary for integration in various projects. The lens, which provides a low distortion image, is perfect for applications related to security systems, monitoring or recording large areas.

Compared to existing camera modules, this board breaks standards while offering compatibility with existing solutions. It has a standard 2x9 pin connector, but also an additional connector that allows easy connection to prototype boards. The module allows you to select an external or internal clock with a frequency of 24 MHz ("XCLK"). This feature not only saves GPIO pins, but also ensures a stable 24MHz signal even if the microcontroller is unable to generate it.

The board is also equipped with a camera cooling area and numerous holes for effective heat transfer. This is especially useful during long-term use, preventing overheating and maintaining optimal image performance. For greater flexibility, the module has an optional VMotor 3.3V power connector on DATA1, dedicated to autofocus camera modules. Additionally, the 3.3V good power LED on the back of the module can be turned off when not in use.

Whether you're working on surveillance projects, panoramic imaging, or other creative applications, the Adafruit OV5640 120-degree camera module offers advanced features, flexibility, and reliable performance for any field.

Features

  • Sensor type: OV5640
  • Resolution: 5 MP, 2592 x 1944 px
  • Lens: 1/4"
  • F.NO: 2.6
  • Viewing angle: 120°
  • Image area: 3673.6um x 2738.4um
  • Pixel size 1.4um x 1.4um
  • IR filter
  • 2x9 pin connector
  • Possibility to select the clock signal source
  • Heat dissipation area
  • Configurable power LED
  • Autofocus power supply jumper
  • Dimensions: 35.7 x 23 x 17.5 mm

Kit contains

  • OV5640 Camera Breakout Module
  • 2 x straight male goldpin connectors
1188467

Data sheet

Resolution
5MPx
Interface
Parallel
Sensor
OV5640
IR filter
Yes
Lens assembly
none
