USB 3.0 2MP HDR IMX390 Camera with Enclosure - ArduCam B0476C

Description

The ArduCam B0476C is designed for applications that require high-quality HDR imaging in vision systems and industrial environments. The camera uses a 2-megapixel Sony IMX390 CMOS sensor, providing Full HD 1920×1080 resolution at up to 30 frames per second over a USB 3.0 connection. HDR technology enables accurate capture of scenes with a wide dynamic range, preserving detail in both bright and dark areas of the image.

An integrated on-board ISP performs advanced image processing, including gamma correction, white balance, automatic exposure, backlight compensation, and color space conversion. The camera is equipped with a wide-angle fisheye M12 lens offering a 140° diagonal field of view, allowing large scenes to be captured without additional optics.

The USB 3.2 Gen 1 interface with a USB-C connector ensures fast data transfer and easy connection to Windows and Linux systems without driver installation, thanks to UVC compliance. The camera is also backward compatible with USB 2.0 ports. The enclosure and included tripod adapter enable stable mounting in both test setups and final installations.

Features

• Image sensor: Sony IMX390 CMOS
• Resolution: 2 MP
• Video resolution: 1920 × 1080 px
• Shutter type: Rolling shutter
• Video output format: YUY2
• Pixel size: 3.0 µm × 3.0 µm
• Optical sensor size: 1/2.7"
• Frame rate: Up to 30 fps at 1920 × 1080
• Lens: M12 fisheye
• Focal length: 2.72 mm
• Aperture: F2.5
• Focus range: 50 cm – infinity
• Field of view: 140° (D) × 130° (H) × 118° (V)
• IR filter: Integrated IR-cut
• Interface: USB 3.2 Gen 1
• USB compatibility: Backward compatible with USB 2.0
• Connector: USB Type-C
• Power supply: 5 V
• Maximum power consumption: 1.4 W
• Operating temperature: 0–70°C
• Supported operating systems: Windows, Linux
• Camera board dimensions: 34 × 34 mm

Kit includes

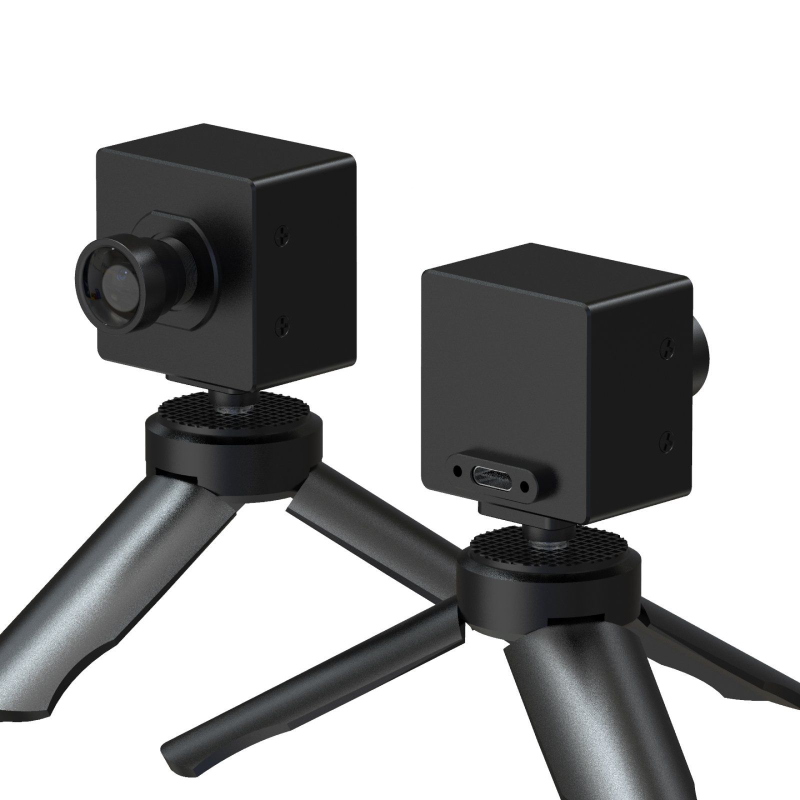

• ArduCam IMX390 USB 3.0 camera module with enclosure and tripod adapter
• 1 m USB-A to USB-C cable
