Arducam UB0240 – USB camera module with autofocus, Sony IMX179, 8 MP, 1/3.2", 3264×2448@30 fps, with microphone
ID: 1195313
5902186308350
zł202.58
Tax included
zł164.70 tax excl.
Arducam UB0240 with Sony IMX179 sensor offers 8 MP image at 30 fps and autofocus, ensuring high-quality capture in industrial, educational, and hobby applications. Thanks to UVC compliance and support for multiple operating systems, it can be easily integrated with computers and embedded devices.
Description

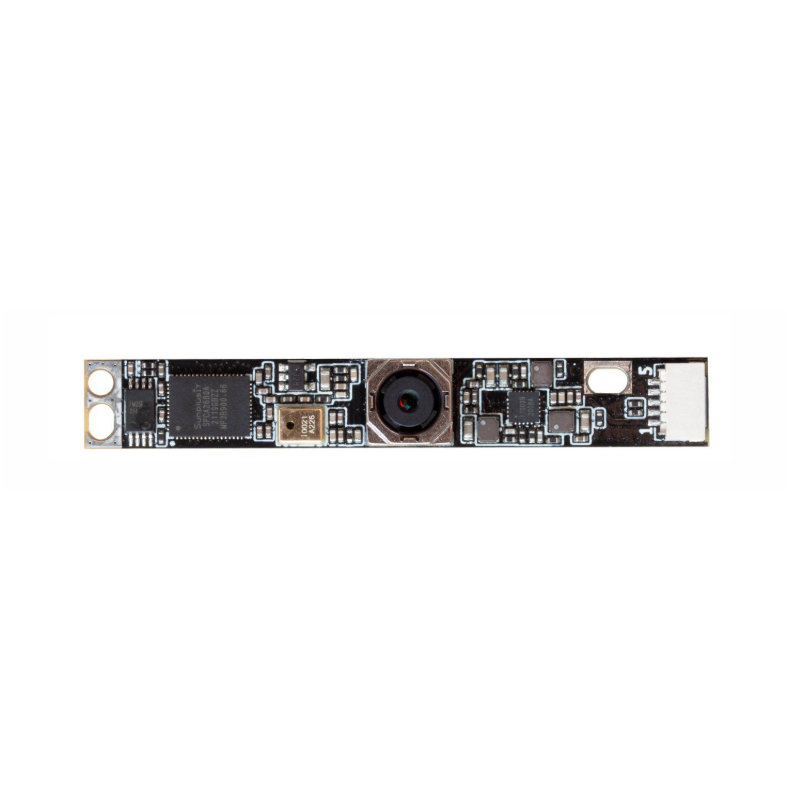

Compact USB camera module based on the Sony IMX179 image sensor with a resolution of 8 MP, equipped with an autofocus lens and a 65° (H) field of view. It enables image capture at a maximum resolution of 3264×2448 pixels at 30 fps in MJPEG format and offers a range of other operating modes in MJPEG or YUY2 format. The camera is UVC-compliant, so no drivers are required for Windows, Linux, macOS, and Android systems. A built-in microphone allows recording audio along with video. The module is suitable for use in vision systems, 3D scanners, VR cameras, electronic microscopes, medical devices, and engraving machines.
Properties
- Sensor: Sony IMX179, CMOS, 8 MP
- Optical format: 1/3.2"
- Shutter type: rolling shutter
- Maximum resolution: 3264×2448 pixels (MJPEG, 30 fps)
- Available operating modes (YUY2):
- 1 fps @ 3264×2448
- 2 fps @ 2592×1944 / 2048×1536
- 5 fps @ 1920×1080 / 1600×1200
- 7.5 fps @ 1280×960
- 10 fps @ 1280×720
- 15 fps @ 1024×768
- 25 fps @ 800×600
- 30 fps @ 640×480
- Output format: MJPEG / YUY2
- Lens: autofocus, focal length 3.543 mm ±5%, F/2.0 ±5%
- Field of view: 65° (H)
- Distortion: <1%
- Lens mount: M6.5×P0.25 mm
- Interface: USB 2.0, SM05B-SRSS-TB connector
- Power supply: 5 V DC ±5%, current consumption up to 300 mA
- Operating temperature range: –20°C to 70°C
- Board dimensions: 62×9×6 mm
- Built-in microphone: 1 pc
- Compliance: UVC (driverless), Windows, Linux, macOS, Android
- UVC controls: brightness, contrast, hue, saturation, sharpness, gamma, white balance, gain, exposure

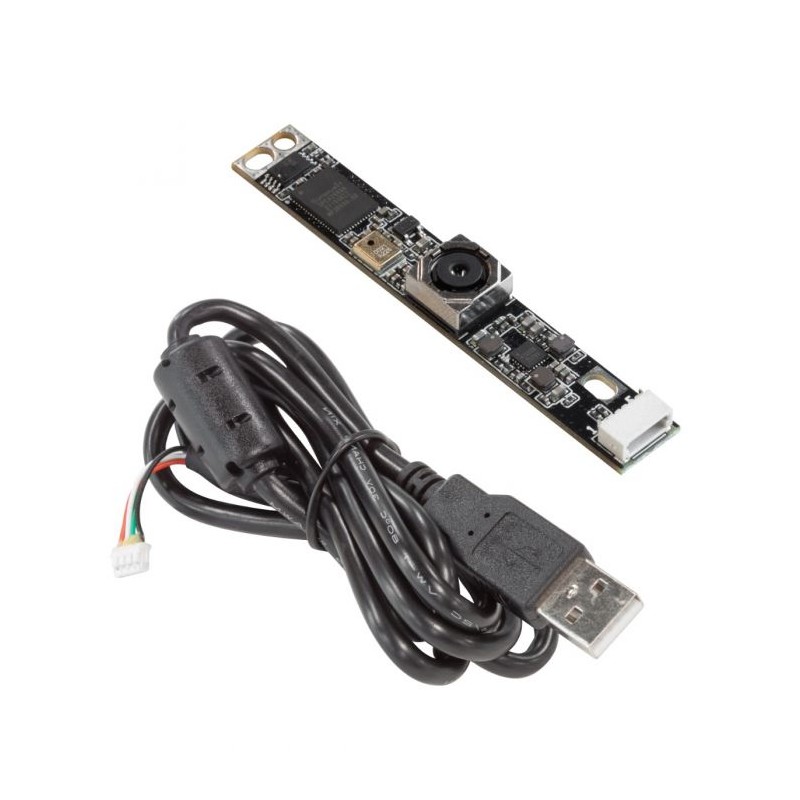

Included
- Arducam IMX179 8 MP autofocus camera module
- USB cable (1 m)
1195313
Data sheet
- Resolution
- 8MPx
- Interface
- USB 2.0
- Sensor
- IMX179
- IR filter
- Yes
- Lens assembly
- M6.5
