Set with a monochrome camera with a resolution of 0.3 MPx with an OV7251 sensor and a USB 2.0 adapter. Without IR filter. ArduCAM EK027

24h
Available
Available quantity: 1
Kamami is the official distributor of ArduCAM cameras and accessories. All products of this brand in our offer are original and come directly from the manufacturer.


Free shipping

free shipping in Poland for all orders over 500 PLN



Same day shipping

If your payment will be credited to our account by 11:00



14 days for return

Each consumer can return the purchased goods within 14 days

Description

A set with a monochrome camera and USB2 Camera Shield that allow you to connect the module via USB. The camera is equipped with an OV7251 sensor with a matrix of 0.3 MPx and allows you to record video at a resolution of 640×480/30fps. It uses the OmniPixel3-GS technology and does not have an IR filter, therefore it is sensitive to infrared light and can be used to work in the dark. Perfect for applications that do not require high resolution, such as toys or applications based on ARM and FPGA systems.

Features

  • Matrix: OV7251 (monochrome)
  • Resolution: 0.3 Mpx (640x480 pixels)
  • Optical size: 1/7.5 inch
  • Pixel size: 3 μm x 3 μm
  • EFL: 1.3mm
  • F.NO: 2.2
  • No IR filter
  • FOV: D 86.5°, H 72.9°, V 57.7°
  • Focusing range: 65 mm to infinity
  • Output interface: 1-lane MIPI
  • Output formats: 8/10-bit BW RAW
  • Maximum sampling rate: 100 fps at 640x480 px
  • Dimensions: 40 x 40 mm

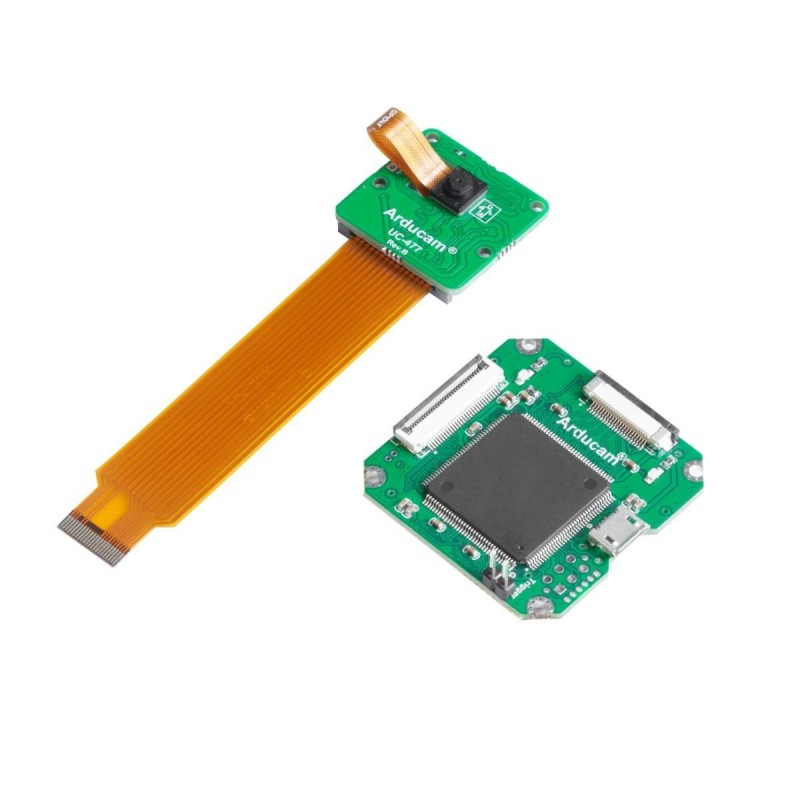

Kit contains

  • Arducam OV7251 1/7.5-inch Monochrome Camera Module
  • USB2 Camera Shield adapter
  • USB 2.0 cable
587006

Data sheet

Resolution
0.3MPx
Interface
USB 2.0
Sensor
OV7251
IR filter
No
Lens assembly
none
