ID: 1209886
zł184.50
Tax included

zł150.00 tax excl.

RGB USB camera with a resolution of 1280 x 720 px, equipped with a 1 MP OV9732 CMOS sensor and a wide-angle lens with a 100° field of view. Supports manual focus adjustment and UVC-compliant USB 2.0 connectivity, enabling plug-and-play operation without dedicated drivers. Designed for robotic vision systems, including the SO-ARM101 Pro robotic arm, as well as object recognition and monitoring projects. Compatible with Windows, macOS, Linux, and Android. Includes a 2 m connection cable. Seeed Studio 100079619

24h
Available
Available quantity: 3
Kamami is the official distributor of Seeed Studio modules and development kits. All products of this brand in our offer are original and come directly from the manufacturer.

Description

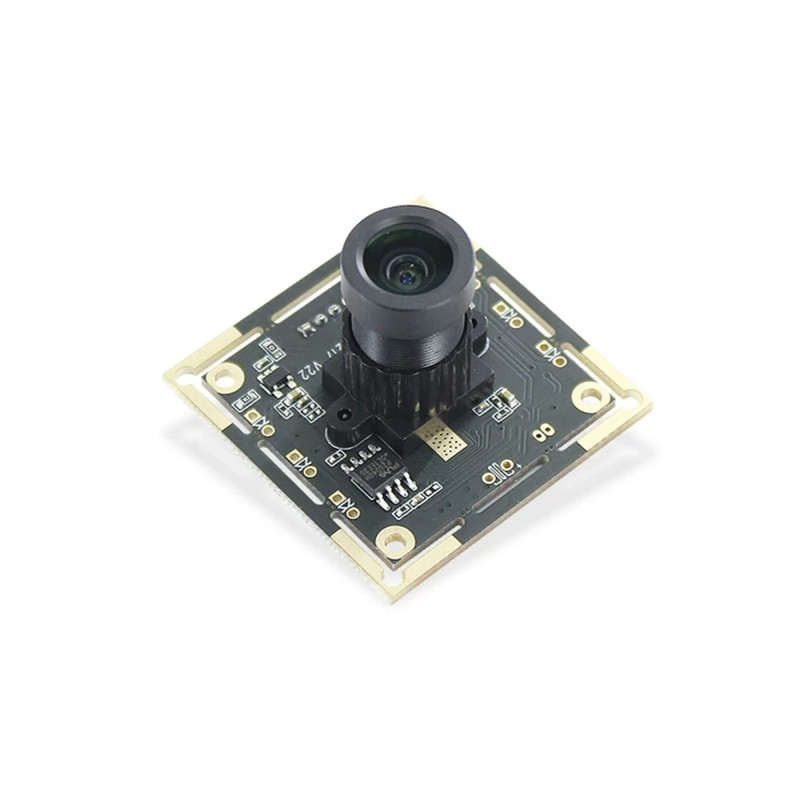

RGB USB camera with a resolution of 1280 x 720 px (HD 720p), equipped with a 1 MP OmniVision OV9732 CMOS sensor and a wide-angle lens offering a 100° field of view. The RGB USB Camera-100°-720P module captures color images and transmits them to a computer via USB 2.0. Compliance with the UVC (USB Video Class) standard allows the camera to operate without dedicated drivers on compatible Windows, macOS, Linux, and Android systems. The lens features manual focus adjustment, allowing image sharpness to be adapted to the distance of observed objects. The wide field of view enables coverage of a larger workspace, reducing the need for multiple cameras.

The camera is designed for robotic vision systems, object recognition prototyping, and image data collection for training control algorithms. It can be used with the SO-ARM101 Pro robotic arm to provide an additional view of the gripper, manipulated objects, and the robot's surroundings. Other applications include robot learning through demonstration, monitoring manipulation tasks, and testing image processing algorithms. Its compact dimensions of approximately 38 x 38 x 16.05 mm simplify installation within a research workstation, while the included 2 m connection cable allows the camera to be positioned at a suitable distance from a computer or robot controller.

Features

  • Manufacturer: Seeed Studio
  • Model: RGB USB Camera-100°-720P
  • Manufacturer part number: 100079619
  • Product type: RGB USB camera for robotic vision systems
  • Image sensor: OmniVision OV9732
  • Sensor technology: CMOS
  • Sensor resolution: 1 MP
  • Image resolution: 1280 x 720 px
  • Resolution standard: HD 720p
  • Image type: color (RGB)
  • Lens field of view: 100° diagonal
  • Focus adjustment: manual
  • Focus range: from close distances to infinity
  • Communication interface: USB 2.0
  • Communication standard: UVC (USB Video Class)
  • Plug-and-play support
  • Driver-free operation on compatible operating systems
  • Supported operating systems: Windows 7/8/10/11, macOS, Linux, Android
  • Module dimensions: approximately 38 x 38 x 16.05 mm
  • Connection cable length: 2 m
  • Compatibility: SO-ARM101 Pro and other robotic systems supporting USB UVC cameras
  • Image capture for computer vision algorithms
  • Monitoring of the robotic manipulator workspace
  • Designed for robotics prototyping and research

Kit Includes

  • 1x RGB USB Camera-100°-720P
  • 1x 2 m USB connection cable
1209886

Data sheet

Resolution
1280 x 720 px
Interface
USB 2.0
Sensor
OV9732
IR filter
No
Lens assembly
none
