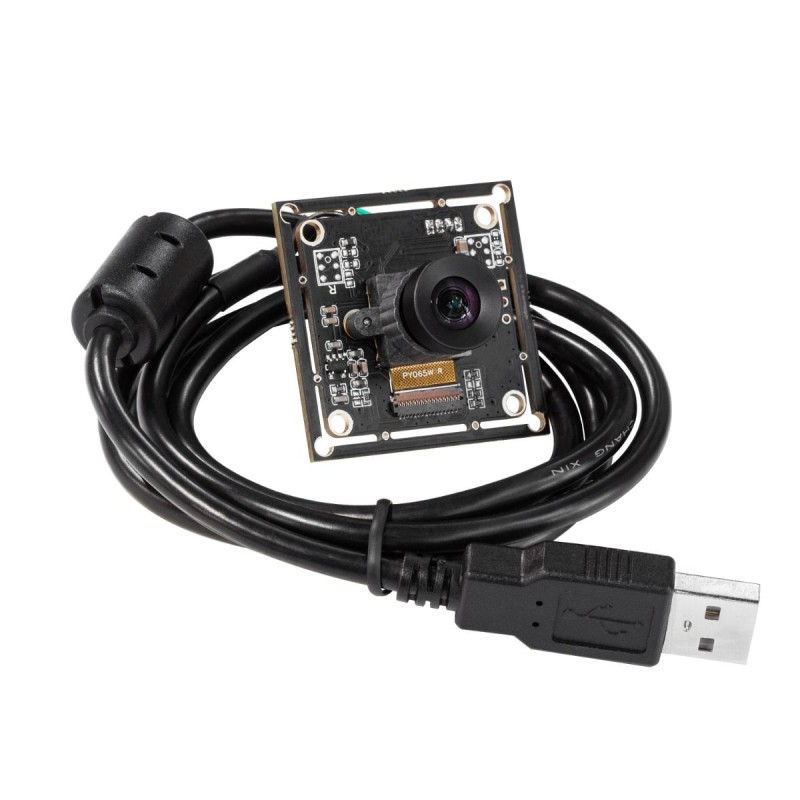

ArduCAM 120fps Global Shutter USB Camera - 1MP USB camera with OV9281 sensor
ID: 586952
5906623404131
zł243.54
Tax included
zł198.00 tax excl.
Camera with a resolution of 1 MPx with a USB interface. Equipped with an OV9281 CMOS sensor with a 70° angle of view lens and a global shutter. ArduCAM B0332
Description
Monochrome camera with USB interface, equipped with a CMOS sensor OV9281 1/4” with a resolution of 1 MPx. It has a 70° field of view lens and a global shutter that allows you to record fast-moving objects while keeping the image sharp. The camera can take pictures with a resolution of 1280x800 and record videos at 120fps@1280x800. It is powered from the USB port. The module works with native drivers (compatible with UVC) built into Windows, Linux, Mac and Android, making the installation of the camera easy and intuitive. It will be used in applications for face recognition, astrophotography and deep vision.
Features
- Sensor: 1/4” CMOS OV9281
- Resolution: 1MP 1280x800
- Color: black and white
- Data format: MJPG / YUY2
- Frame rate: MJPG 120fps @ 1280 x 800 / 720P / 800 x 600/640 x 480/320 x 240, 100fps @ 1280 x 800/800 x 600/640 x 480/320 x 240; YUY2 10fps @ 1280 x 800/1280 x 720
- Field of View (FOV): 70 ° (H)
- Lens mount: M12
- No IR filter
- Automatic calibration of white balance, exposure
- System Compatibility: Windows, Linux, Mac and Android with UVC
- Can be triggered by an external signal
- USB 5V power supply
- Working current: 200 mA
- Working temperature: -20 to 70°C
- Dimensions: 38 x 38 mm
- USB cable length: 1 m
Kit contains
- ArduCAM 120fps Global Shutter USB Camera module
- USB 2.0 cable 1 m
586952
Data sheet
- Resolution
- 1 MPx
- Interface
- USB 2.0
- Sensor
- OV9281
- IR filter
- No
- Lens assembly
- M12
Manufacturer BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
Responsible person BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
