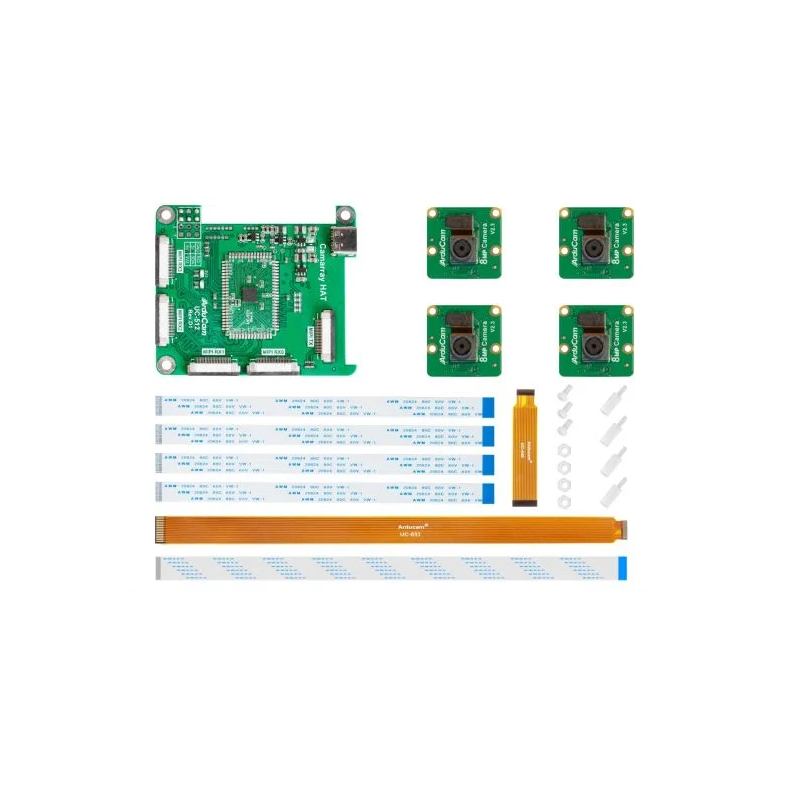

ArduCAM 8MP*4 IMX219 Quadrascopic Camera Bundle Kit - a set with a base board and 4 8MP IMX219 cameras
ID: 1195258
5902186307957
zł674.96
Tax included
zł548.75 tax excl.
A comprehensive multi-camera solution designed for Raspberry Pi and NVIDIA Jetson platforms. The kit includes four synchronized IMX219 cameras and a Camarray HAT module, which allows for data transfer via a single CSI-2 interface. The system is ideal for applications such as SLAM, AR/VR, stereo vision, object tracking, and 3D reconstruction. ArduCAM B0396
Description
The ArduCAM 8MPx4 IMX219 Quadrascopic Camera Kit is an advanced multi-camera solution designed to work with single-board computers such as the Raspberry Pi and NVIDIA Jetson AGX Orin/Orin NX/Orin Nano. The kit includes four synchronized camera modules based on the Sony IMX219 sensor and a modern Camarray HAT, which allows simultaneous data transmission from four cameras through a single CSI-2 interface.
The device supports synchronized video recording and image capture at a maximum resolution of 3280x2464, making it ideal for applications such as SLAM, AR/VR, object tracking, or 3D vision systems. It works with the libcamera library and Jetson software (JetPack 4.6 / L4T 32.x and 35.x). Thanks to its adjustable stereo baseline, users can adapt the camera layout to the specific needs of their project. With advanced image processing, this package offers high quality and flexibility without requiring expensive hardware multiplexers. It is an ideal solution for engineers, robotics developers, researchers, and vision system enthusiasts.
Features
- Sensor: Sony IMX219 (4 x 8MP)
- Image resolution: 3280x2464 (photo), 1920x1080 (video)
- Interface: 2-lane MIPI CSI-2
- Output: RAW8/RAW10
- CSI-2 speed: 1.0 Gbps/lane
- Compatibility: Raspberry Pi, Jetson AGX Orin/NX/Nano
- ISP support on Raspberry Pi
- Combining mode: 1/4 Spelling Combine
- Frame rates (Raspberry Pi): up to 103fps@640x480, 10fps@3280x2464
- Frame rates (Jetson): up to 30fps@1280x720
- Sensor size: 1/4", pixel 1.12μm x 1.12μm
- Lens: Standard, 3.04mm focal length
- Field of view: 62.2° (H), 48.8° (V)
- IR filter: Integrated, visible light only
- Camera dimensions: 24 x 25mm
- Camarray HAT dimensions: 65 x 55mm
Kit contains
- 4 × IMX219 camera modules
- Arducam Camarray HAT
- 4 × 22-22pin FPC cables (15 cm)
- 1 × 15-22pin FPC cable (30 cm)
- 1 × 22-22pin FPC cable (30 cm)
- 1 × 15-22pin FPC cable (7 cm)
- Screw set
1195258
Data sheet
- Resolution
- 8MPx
- Interface
- MIPI CSI-2
- Sensor
- Sony IMX219
- IR filter
- Yes
- Lens assembly
- none
