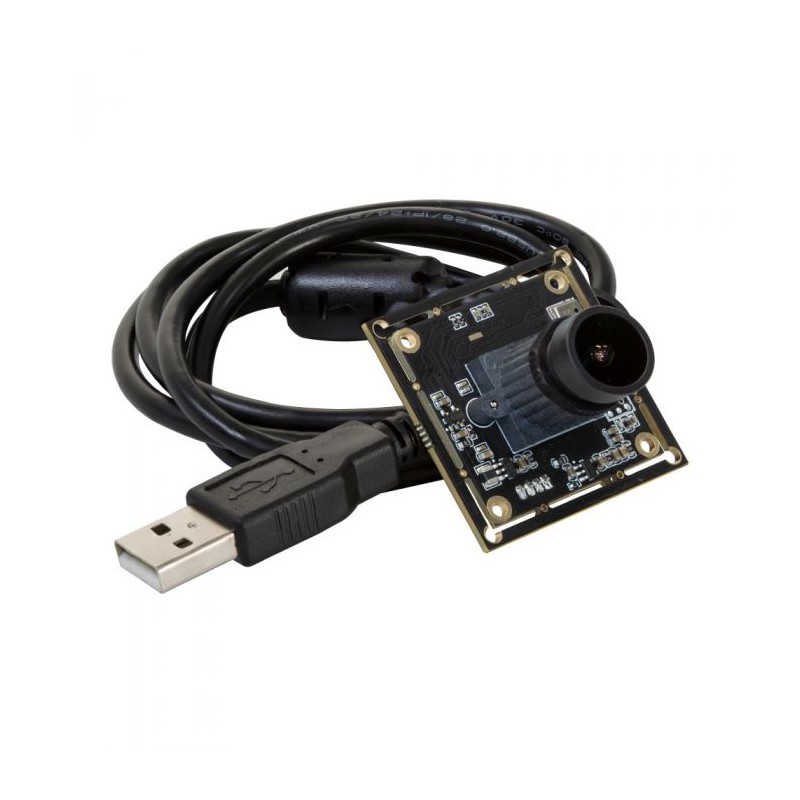

2MP USB camera module with Sony CMOS IMX291 sensor and microphones
ID: 581875
5906623481392
zł298.00
Tax included
zł242.28 tax excl.
Camera module with USB interface with a resolution of 2MP. Camera with Sony CMOS IMX291 sensor, the module is equipped with two microphones. ArduCAM B0201
Description
Camera module with USB interface with 2MP resolution with Sony CMOS IMX291 sensor. The module is equipped with two microphones and has an integrated IR filter and a lens with a field of view of 120 °. The camera can take pictures with a resolution of 1920x1080 and record videos in 1080p. It is powered from the USB port.
The module works with native drivers built into Windows, Linux, Mac and Android, making the installation of the camera easy and intuitive. It will be used for monitoring 3D printing, videoconferences or in projects of mobile robots.
Features
- Sensor: 1/2.8 ”Sony CMOS IMX291
- Resolution: 2MP 1920 x 1080
- Data format: H.264 / MJPG / YUY2
- Frame rate: H.264 30 fps @ 1080p; MJPG 30 fps at 1080p; YUY2 30 fps @ 640 x 480
- Field of View (FOV): 120 ° (H)
- Lens mount: M12
- Integrated IR filter, only visible light
- Automatic calibration of saturation, contrast, sharpness, white balance, exposure
- Two microphones
- System Compatibility: Windows, Linux, Mac and Android with UVC
- USB 5V power supply
- Working current: 300 mA
- Working temperature: -20 to 75°C
- Dimensions: 36 x 36 mm
- USB cable length: 1 m
Kit contains
- 2MP USB camera module with Sony CMOS IMX291 sensor
- USB 2.0 cable 1 m
581875
Data sheet
- Resolution
- 2Mpx
- Interface
- USB
- Sensor
- Sony IMX291
- IR filter
- Yes
- Lens assembly
- M12
