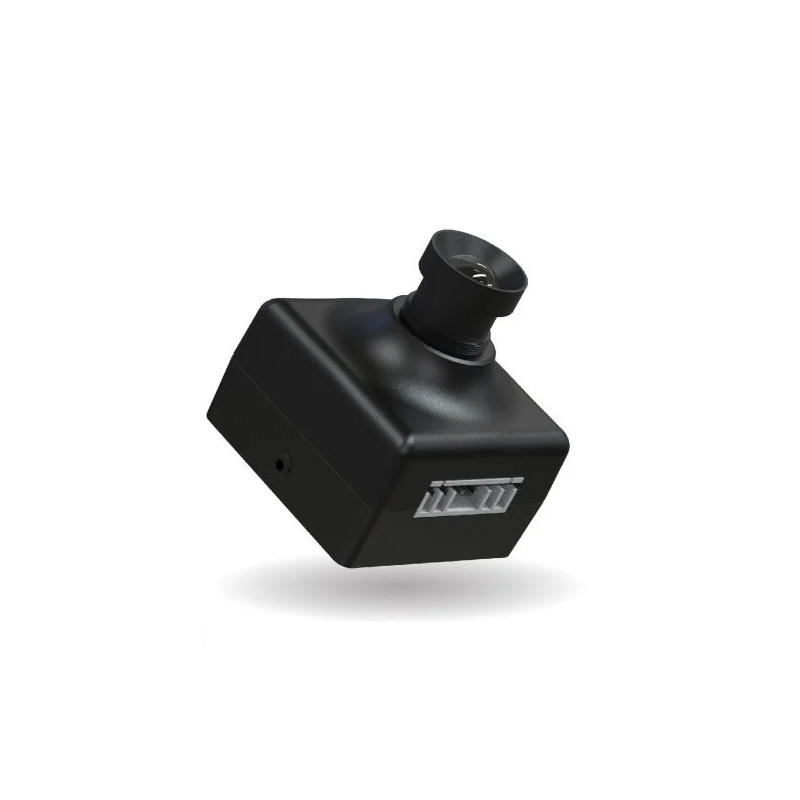

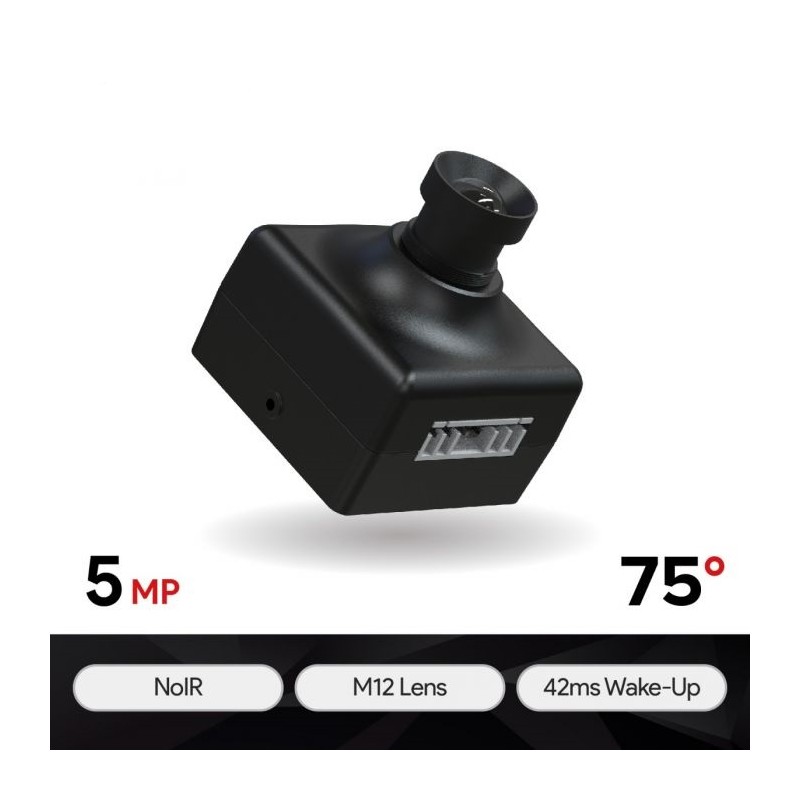

ArduCAM Mega 5MP SPI Camera Module - 5MP NOIR camera with SPI interface
ID: 1195231
5902186307810
zł188.74
Tax included
zł153.45 tax excl.
An advanced 5MP camera with an SPI interface, it boasts low power consumption, high image quality, and broad compatibility with popular microcontrollers such as Arduino, ESP32, STM32, and RISC-V. This model is equipped with an M12 NoIR lens with manual focus, enabling image capture at night and in low-light environments. An open API and MIT-licensed SDK make the camera ideal for IoT systems, industrial automation, educational, and environmental projects. ArduCAM B0437
Description
ArduCAM Mega 5MP is the latest camera model offering exceptional stability, precise performance, and an open API interface, making it an ideal choice for advanced IoT, automation, or environmental monitoring projects. It features low power consumption and delivers highly detailed, sharp images. Unlike the standard Mega 5MP version, this camera comes equipped with an M12 NoIR lens (distortion below 1.53%) that allows manual focus adjustment and is suitable for low-light or night conditions.
Thanks to its broad compatibility and SPI interface, the camera is compatible with virtually all microcontrollers—from Arduino and ESP32 to STM32 and RISC-V systems. The user-friendly interface and fully open-source SDK (MIT license) enable rapid deployment in industrial, hobby, and educational applications. Additionally, up to four cameras can be connected simultaneously via a special adapter board, allowing synchronized image capture from multiple sources.
Features
- Resolution: 2592 x 1944 pixels
- Sensor: color
- No IR-cut filter (infrared-sensitive)
- Shutter type: Rolling Shutter
- Lens: M12 NoIR, manual focus (distortion <1.53%)
- Field of View (FOV): 90°(D) x 75°(H) x 56.4°(V)
- Image formats: RGB / YUV / JPEG
- Operating frequency: up to 8 MHz
- Interface: SPI (4-wire)
- Power supply: 3.3V / 5V
- Power consumption (idle / active): max 0.3W / 1.58W
- Current (idle / active): max 63mA / 316mA
- Minimum focus distance: 0.8 m to infinity
- Connector type: XH2.54-6P
- Compatibility: Arduino, STM8/STM32, ESP8266/ESP32, MSP430, RISC-V, Raspberry Pi, Nvidia Jetson, and others
- SDK: open source (MIT), supports any microcontroller with SPI interface
- Dimensions: 33 x 33 x 35 mm
Kit contains
- ArduCAM Mega 5MP SPI camera with M12 NoIR lens
- 6-pin cable, 300 mm long
1195231
Data sheet
- Resolution
- 5MPx
- Interface
- SPI
- Sensor
- Inna
- IR filter
- No
- Lens assembly
- M12
Manufacturer BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
Responsible person BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
