A low-power, 3MP rolling shutter camera module designed to work with virtually any microcontroller via its SPI interface. Equipped with a NoIR M12 lens with manual focus, it delivers high image quality even in low light, making it ideal for IoT, monitoring, and automation applications. With low latency, an open SDK (MIT), and the ability to connect up to four cameras simultaneously, this module offers a flexible and scalable solution for advanced machine vision projects. ArduCAM B0435

24h
Available
Available quantity: 2
Kamami is the official distributor of ArduCAM cameras and accessories. All products of this brand in our offer are original and come directly from the manufacturer.

Description

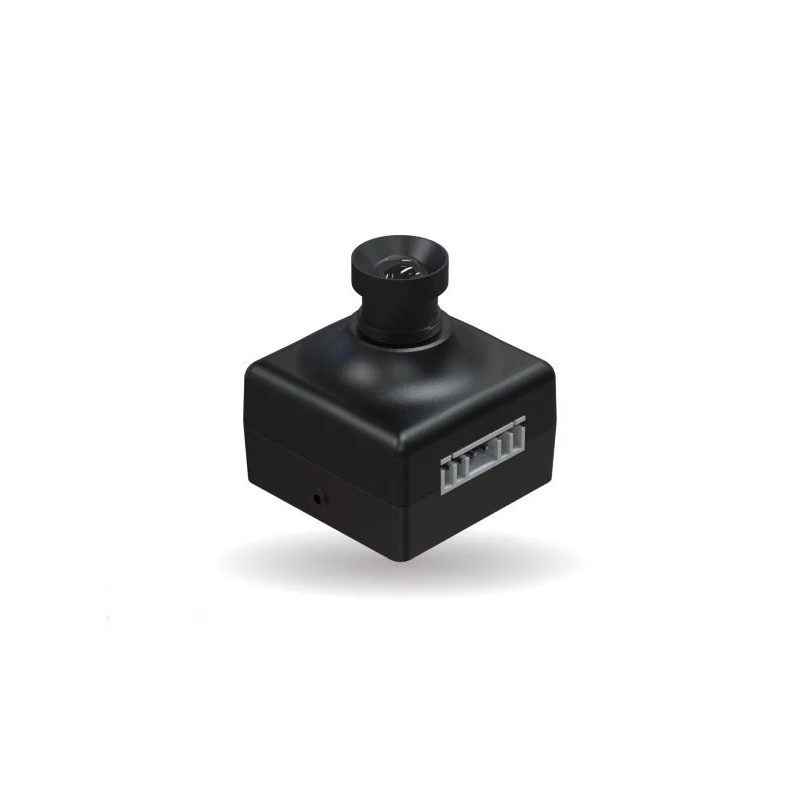

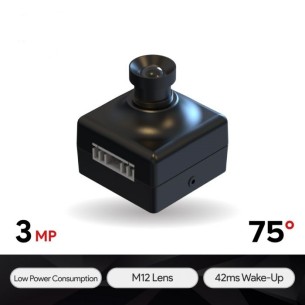

The ArduCAM Mega 3MP is a modern camera module with a rolling shutter, designed for use with virtually any microcontroller. Thanks to its low latency (42 ms), low power consumption (under 200 mW), and high stability and precision, it is ideal for IoT applications, security systems, and environmental monitoring. The camera is equipped with a M12 NoIR lens featuring low distortion (<1.53%) and manual focus, making it suitable for low-light conditions. It supports a wide range of microcontrollers—from Arduino to STM32, ESP32, and RISC-V—using an SPI interface. With its open-source SDK under the MIT license, integration into custom projects is fast and flexible. Moreover, the adapter allows up to 4 cameras to be connected in parallel to a single microcontroller, enabling simultaneous image capture from multiple sources. This makes it a perfect solution for automation, surveillance, and image acquisition in challenging environments.

Features

  • Resolution: 2048 x 1536 pixels
  • Sensor: color
  • No IR-cut filter
  • Shutter type: Rolling Shutter
  • Lens: M12 NoIR, manual focus adjustment (distortion <1.53%)
  • Field of View (FOV): 90°(D) x 75°(H) x 56.4°(V)
  • Image format: RGB / YUV / JPEG
  • Operating frequency: up to 8 MHz
  • Interface: SPI (4-wire)
  • Power supply: 3.3V / 5V
  • Power consumption (idle / active): max 0.3W / 1.58W
  • Current (idle / active): max 69mA / 317mA
  • Minimum focusing distance: 0.6 m to infinity
  • Connector type: XH2.54-6P
  • Compatibility: Arduino, STM32, ESP32, MSP430, RISC-V, Raspberry Pi, and other platforms
  • SDK: open-source (MIT), compatible with various MCU architectures
  • Dimensions: 33 x 33 x 35 mm

Kit contains

  • ArduCAM Mega 3MP SPI camera with M12 NoIR lens
  • 6-pin cable, 300 mm long
1195234

Data sheet

Resolution
3 MPx
Interface
SPI
Sensor
Inna
IR filter
No
Lens assembly
M12
