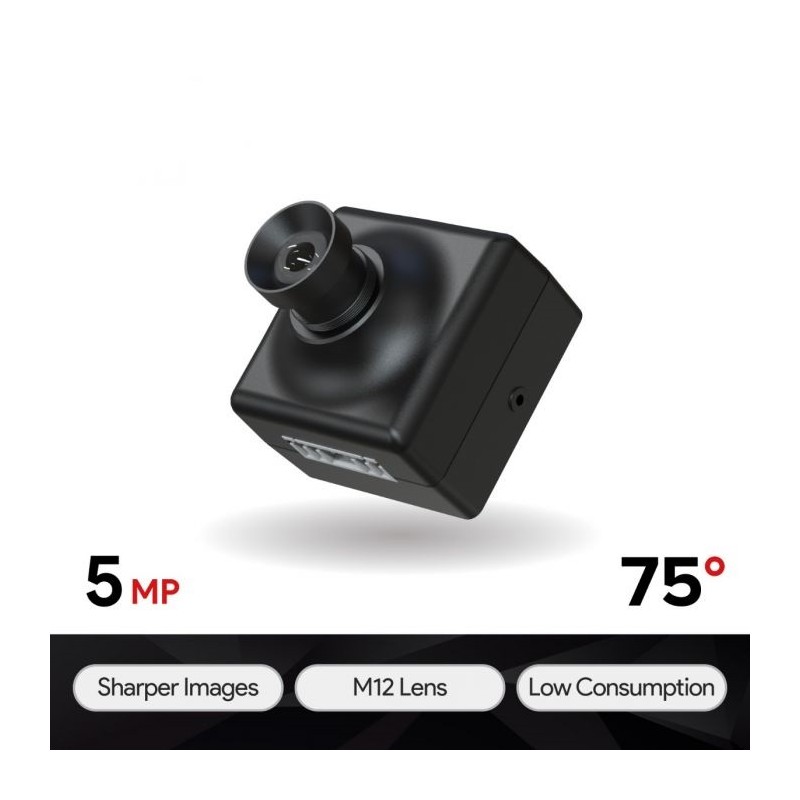

ArduCAM Mega 5MP SPI Camera Module - 5MP camera module with SPI interface
ID: 1195232
5902186303270
zł207.56
Tax included
zł168.75 tax excl.
5 MP CMOS camera with M12 lens and Rolling Shutter, designed for IoT, monitoring and automation. Communicates via SPI interface, works with popular microcontrollers (Arduino, ESP32, STM32, Raspberry Pi Pico), offers low power consumption and high image quality with <1.53% distortion. Supports JPEG, RGB, YUV formats and allows you to connect up to 4 cameras simultaneously; integration facilitated by open SDK under MIT license. ArduCAM B0436
Description
Arducam Mega 5MP with M12 Lens is an advanced camera featuring a 5-megapixel CMOS sensor with a Rolling Shutter, designed for IoT projects, monitoring, and automation. Thanks to its stable operation and accurate image reproduction, this camera performs excellently in diverse environments—from space applications to natural environment observation. The SPI interface allows compatibility with almost any microcontroller, such as Arduino, ESP32, STM32, or Raspberry Pi Pico. The device offers low power consumption and very sharp image quality. With the included M12 lens featuring low distortion (below 1.53%), focus can be adjusted depending on distance. The camera supports multiple output formats, such as JPEG, RGB, and YUV, and it allows connection of up to four cameras simultaneously using an expansion board. Thanks to the open MIT-licensed SDK and well-designed architecture, integration with new microcontrollers is fast and straightforward. This is an ideal tool for electronics enthusiasts, automation experts, and monitoring system developers.
Features
- Resolution: 2592 × 1944 (5MP)
- Shutter type: Rolling Shutter
- Lens type: M12 (distortion < 1.53%)
- Field of view: 90° (Diagonal), 75° (Horizontal), 56.4° (Vertical)
- Focal length/working distance: 2.8mm / 2.6mm
- Aperture: F2.8
- Output formats: RGB, YUV, JPEG
- Power supply: 3.3V or 5V
- Power consumption: max 0.3W (standby), 1.58W
- Interface: SPI (4-pin)
- Connector type: XH2.54-6P
- Compatible with: Arduino, ESP8266/ESP32, STM32, RISC-V, Raspberry Pi, and others
- Dimensions: 33 × 33 × 35 mm
Kit contains
- Arducam Mega 5MP SPI camera with M12 lens
- 6-pin 300 mm cable
1195232
Data sheet
- Resolution
- 5MPx
- Interface
- SPI
- Sensor
- Inny
- IR filter
- Yes
- Lens assembly
- M12
