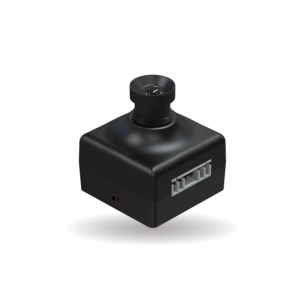

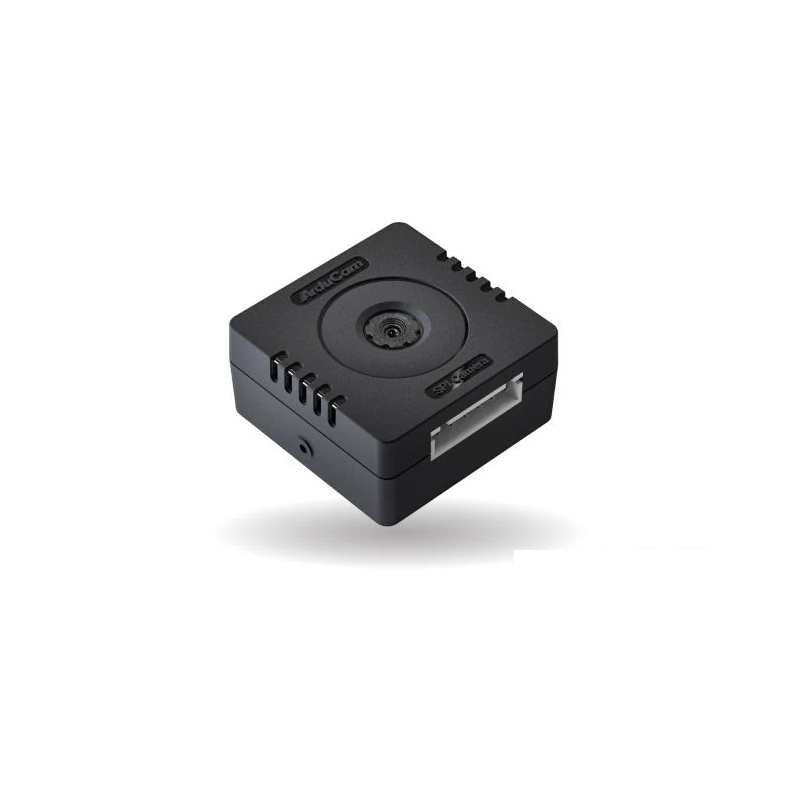

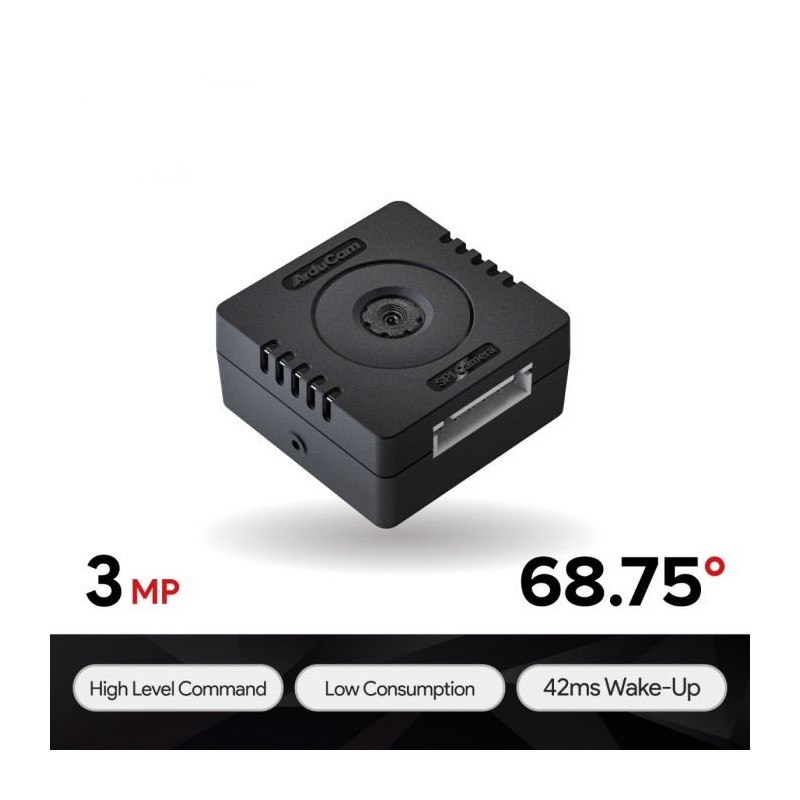

ArduCAM Mega 3MP SPI Camera Module - camera with 3MP sensor and SPI interface
ID: 1195235
5902186307841
zł122.20
Tax included
zł99.35 tax excl.
This camera features a 2048x1536 px sensor and a rolling shutter, designed to interface with microcontrollers via an SPI interface. Its low power consumption (<200 mW), fast wake-up time (42 ms), and support for multiple platforms (Arduino, STM32, ESP32) make it ideal for IoT, monitoring, and automation projects. Simple API commands, the ability to connect up to four cameras, and an open SDK make it a universal tool for engineers and hobbyists. ArduCAM B0400
Description
The ArduCAM Mega 3MP SPI is a modern camera module with a rolling shutter, specifically designed to work with a wide range of microcontrollers via the SPI interface. Equipped with a 2048x1536 pixel (3MP) image sensor, it delivers high image quality, while the stock lens provides sufficient focus for a broad spectrum of applications. With support for an open SDK and easy integration with popular platforms like Arduino, STM32, ESP32, MSP430, and many others, this module is ideal for resource monitoring, environmental observation, IoT automation, and even space projects. The camera also supports up to four units on a single microcontroller via multiplexing.
This model is distinguished by its low power consumption – under 200 mW during operation – and instant wake-up capability in just 42 ms. It operates using simple API commands, significantly simplifying its use even in advanced projects. Its compact form factor and versatility make it an ideal choice for vision system developers.
Features
- Sensor resolution: 3MP (2048x1536)
- Shutter type: Rolling Shutter
- Optical size: 1/4''
- Lens type: Stock Lens
- Focal length: 3.3 mm
- Focus range: 0.6 m – infinity
- Field of view: 68.75° (Diagonal)
- Aperture: f/2.8
- Output formats: RGB, YUV, JPEG
- Interface: SPI (4-wire)
- Transmission speed: 8 MHz

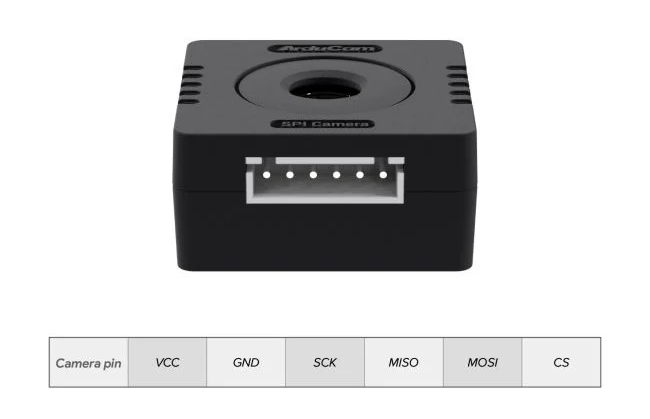

- Connector: XH2.54-6P
- Power supply: 3.3V / 5V
- Current consumption: 56 mA (idle), 136 mA (active)
- Power consumption: 185 mW – 585 mW
- Dimensions: 33 x 33 x 17 mm
Kit contains
- ArduCAM Mega 3MP SPI camera
- 6-pin cable (300 mm)
1195235
Data sheet
- Resolution
- 3 MPx
- Interface
- SPI
- Sensor
- Inna
- IR filter
- No
- Lens assembly
- none
Manufacturer
- BTC Korporacja sp. z o. o.
- Ludwinowo Zegrzyńskie 52G
- 05-140 Ludwinowo Zegrzyńskie
- Poland
- [email protected]
- 22 767 36 20
Responsible person
- BTC Korporacja sp. z o. o.
- Ludwinowo Zegrzyńskie 52G
- 05-140 Ludwinowo Zegrzyńskie
- Poland
- [email protected]
- 22 767 36 20
You might also like

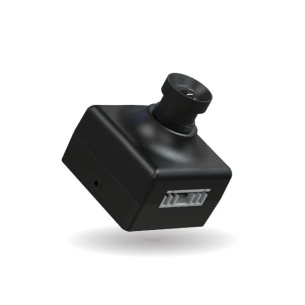

An advanced 5MP camera with an SPI interface, it boasts low power consumption, high image quality, and broad compatibility with popular microcontrollers such as Arduino, ESP32, STM32, and RISC-V. This model is equipped with an M12 NoIR lens with manual focus, enabling image capture at night and in low-light environments. An open API and MIT-licensed SDK make the camera ideal for IoT systems, industrial automation, educational, and environmental projects. ArduCAM B0437
