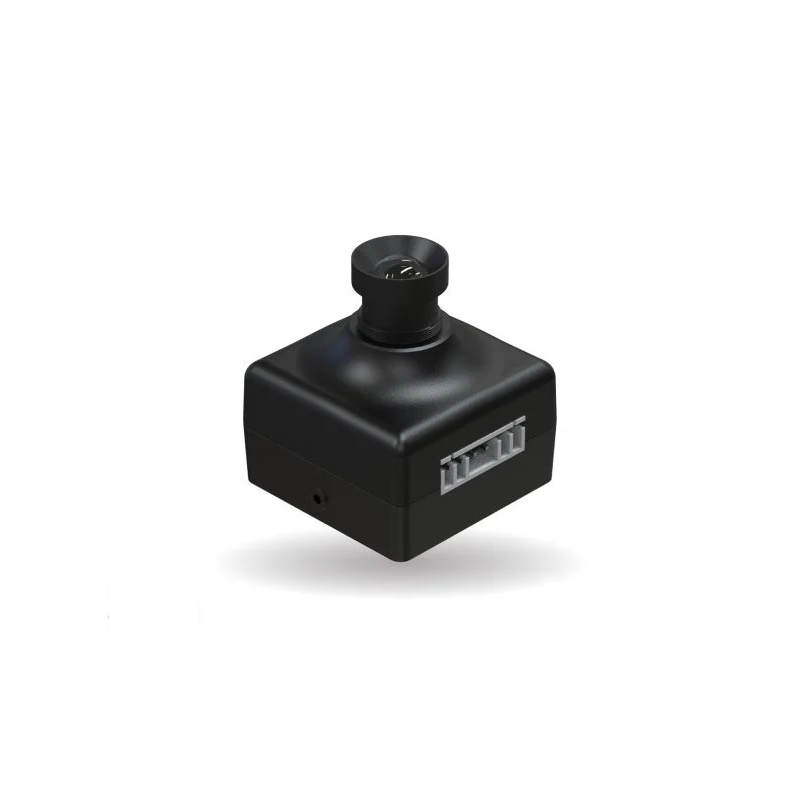

A low-power, 3MP rolling shutter camera module designed to work with virtually any microcontroller via its SPI interface. Equipped with an M12 lens with manual focus, it delivers high image quality, making it ideal for IoT, monitoring, and automation applications. With low latency, an open SDK (MIT), and the ability to connect up to four cameras simultaneously, this module offers a flexible and scalable solution for advanced machine vision projects. ArduCAM B0434

24h
Available
Available quantity: 2
Kamami is the official distributor of ArduCAM cameras and accessories. All products of this brand in our offer are original and come directly from the manufacturer.

Description

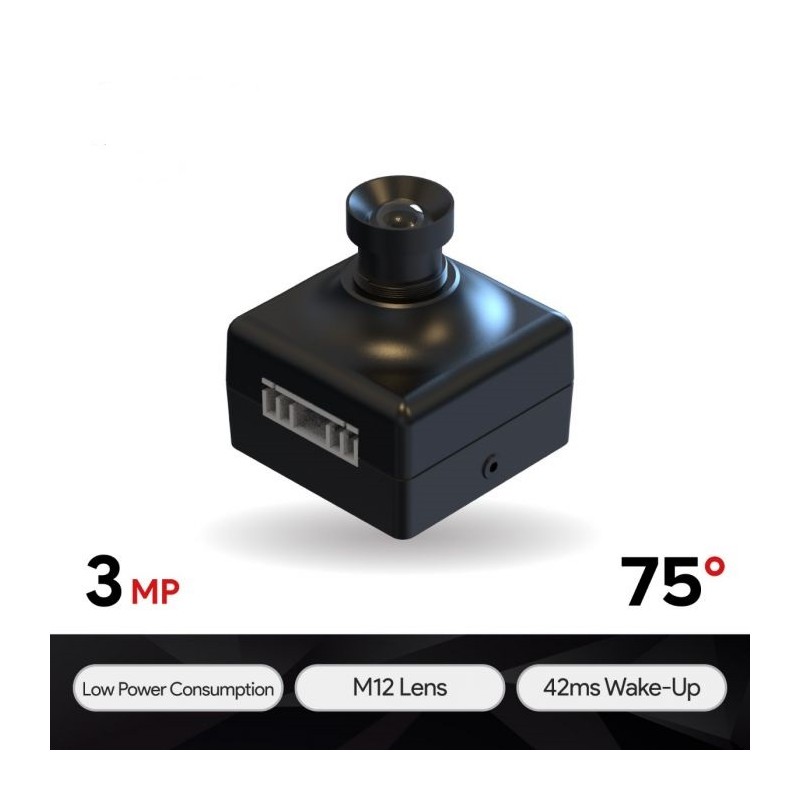

The ArduCAM Mega 3MP is a modern camera module with a rolling shutter, designed for projects based on any microcontroller. With its low latency (42 ms), low power consumption (below 200 mW), and high stability and precision, it is perfectly suited for IoT applications, security systems, and environmental monitoring. The camera features an M12 lens with low distortion (<1.53%) and manual focus adjustment. The module supports a wide range of microcontrollers—from Arduino and STM32 to ESP32 and RISC-V—via the SPI interface. Thanks to the open-source SDK under the MIT license, integration into custom projects is quick and flexible. Moreover, an adapter allows up to 4 cameras to be connected in parallel to a single microcontroller, enabling simultaneous image capture from multiple sources. This makes it an excellent choice for automation, monitoring, and image acquisition in challenging environments.

Features

  • Resolution: 2048 x 1536 pixels
  • Sensor: color
  • Built-in IR-cut filter
  • Shutter type: Rolling Shutter
  • Lens: M12 NoIR, manual focus adjustment (distortion <1.53%)
  • Field of View (FOV): 90°(D) x 75°(H) x 56.4°(V)
  • Image format: RGB / YUV / JPEG
  • Operating frequency: up to 8 MHz
  • Interface: SPI (4-wire)
  • Power supply: 3.3V / 5V
  • Power consumption (idle / active): max 0.3W / 1.58W
  • Current (idle / active): max 69mA / 317mA
  • Minimum focusing distance: 0.6 m to infinity
  • Connector type: XH2.54-6P
  • Compatibility: Arduino, STM32, ESP32, MSP430, RISC-V, Raspberry Pi, and other platforms
  • SDK: open-source (MIT), compatible with various MCU architectures
  • Dimensions: 33 x 33 x 35 mm

Kit contains

  • ArduCAM Mega 3MP SPI camera with M12 lens
  • 6-pin cable, 300 mm long
1195233

Data sheet

Resolution
3 MPx
Interface
SPI
Sensor
Inny
IR filter
Yes
Lens assembly
M12
