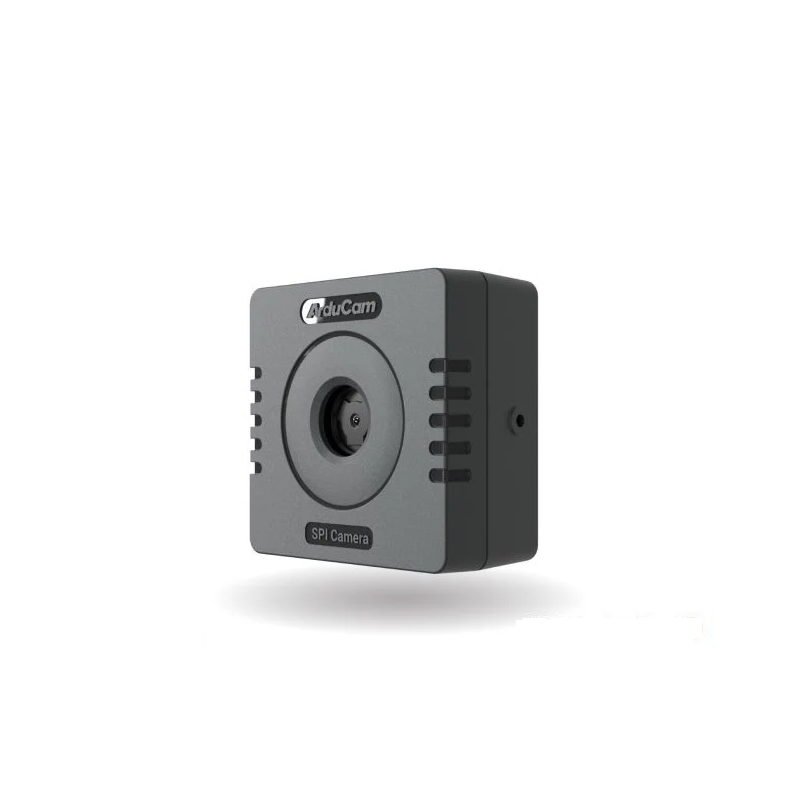

ArduCAM Mega 5MP SPI Camera Module - camera with 5MP sensor and SPI interface
ID: 1195236
5902186307858
zł163.38
Tax included
zł132.83 tax excl.
A rolling shutter camera designed for use with microcontrollers equipped with an SPI interface. Equipped with a 5MP sensor and autofocus, it captures detailed images. With a simple API, low power consumption, and support for multiple platforms (Arduino, ESP32, STM32), it's ideal for applications in surveillance, IoT, education, and automation. ArduCAM B0401
Description
The ArduCAM Mega 5MP SPI is a modern camera module with a rolling shutter, designed to work with any microcontroller equipped with an SPI interface. Featuring an autofocus lens and a high-resolution 2592x1944 pixel (5MP) image sensor, it delivers exceptionally detailed images. The device is extremely easy to operate – it can be controlled using simple API commands, much like a digital SLR camera. It is ideal for projects such as surveillance, environmental monitoring, IoT automation, and both educational and industrial applications. The built-in autofocus supports a focusing range from 8 cm to infinity, making this camera a versatile solution for a wide variety of tasks. The device supports up to four cameras connected to a single microcontroller, enabling simultaneous image capture.
The optimized SDK architecture with a hardware abstraction layer allows for rapid integration across multiple platforms, including Arduino, ESP32, STM32, and many others. The camera is low-power, making it an excellent choice for portable and battery-powered projects. It is a complete and compact vision solution for embedded system developers.
Features
- Sensor resolution: 5MP (2592x1944)
- Shutter type: Rolling Shutter
- Optical size: 1/4''
- Autofocus lens
- Focal length: 3.3 mm
- Focus range: 8 cm to infinity
- Field of view: 68.75° (Diagonal)
- Aperture: f/2.0
- Output formats: RGB, YUV, JPEG
- Interface: SPI (4-wire)
- Transmission speed: 8 MHz
- Connector: XH2.54-6P
- Power supply: 3.3V / 5V
- Current consumption: 55 mA (idle), 154 mA (active)
- Power consumption: 182 mW – 650 mW
- Dimensions: 33 x 33 x 17 mm
Kit contains
- ArduCAM Mega 5MP SPI camera
- 6-pin cable (300 mm)
1195236
Data sheet
- Resolution
- 5MPx
- Interface
- SPI
- Sensor
- Inny
- IR filter
- Yes
- Lens assembly
- none
