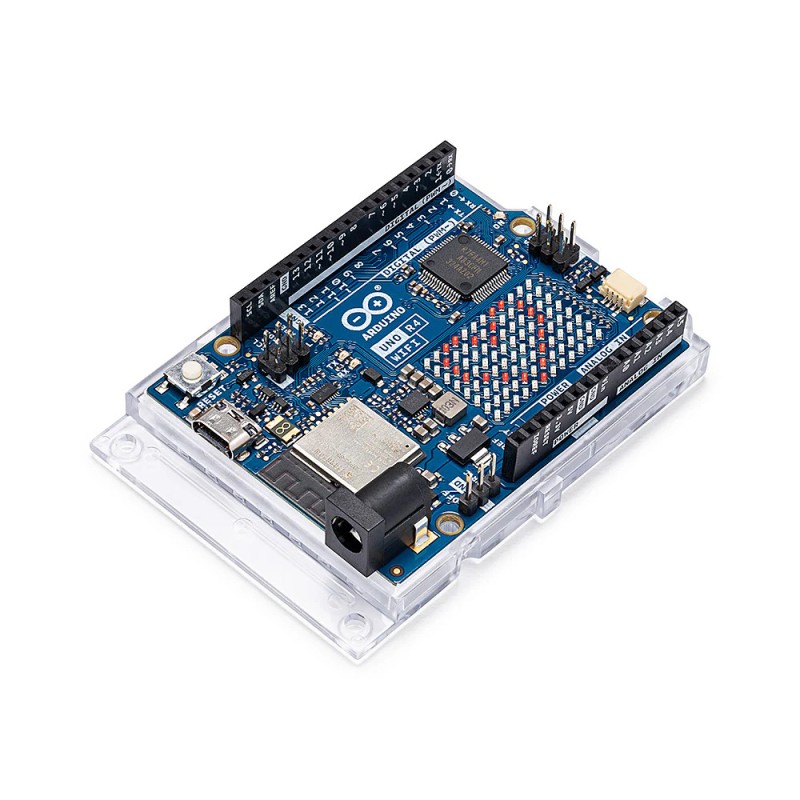

Arduino Uno R4 WiFi - ABX00087
search
  • Arduino Uno R4 WiFi - ABX00087
  • Arduino Uno R4 WiFi - ABX00087
  • Arduino Uno R4 WiFi - ABX00087
ID: 1185670
7630049204591
zł119.00
Tax included

zł96.75 tax excl.

The new Arduino Uno, the latest revision of the world's most popular development kit, allows developers to pursue more advanced projects. The Arduino Uno now features the Renessas RA4M1 32-bit ARM Cortex M4 microcontroller, as well as the ESP32-S3-MINI for WiFi and Bluetooth LE connectivity. A key feature of the new Arduino Uno is compatibility with all shields from previous versions, allowing you to easily upgrade your old projects. Arduino Uno is now even more secure thanks to extensive security systems, as well as compatibility with existing guides and projects. Arduino Uno, thanks to its flexibility and accessibility, is an ideal tool for beginners and experienced makers. Arduino ABX00087

24h
Available
Available quantity: 23
Arduino UNO version:
R3 R4 MINIMA
R4 WiFi
Kamami is the official distributor of Arduino development kits and accessories. All boards of this brand in our offer are original and come directly from the manufacturer.

Description

With its new revision, Arduino Uno is entering the world of 32-bit microcontrollers. The Renesas RA4M1, which is the heart of this kit, is equipped with an ARM Cortex M4 core with a clock speed of 48 MHz, 256 kB of flash memory, 32 kB of SRAM memory, and 8 kB of EEPROM memory. It operates at a voltage of 5 V, making the R4 hardware compatible with UNO Shields available on the market. Like the R3, the refreshed UNO has 14 digital ports, of which 6 support PWM, 6 analog ports (ADC) with resolution increased to 14-bits, and support for SPI, I2C, and UART interfaces. A novelty is the 12-bit digital-analog converter (DAC) and support for the CAN interface. Additionally, the WiFi version is equipped with the ESP32-S3-MINI, which provides WiFi and Bluetooth LE wireless connectivity. The power supply voltage range has been extended to 6 - 24 V, and the rarely encountered USB type A connector these days has been replaced with a modern and convenient USB type C.


Compatibility with existing projects - Arduino UNO enjoys strong community support, which means there are many tutorials, guides, and projects available to use. This community is also very helpful in problem-solving and advice giving. The new version of UNO is compatible with existing projects.

Increased clock speed and expanded memory - allow for more precise and complex calculations, making it easy to create much more advanced projects

14-bit Analog-Digital Converters (ADC) increase the measurement accuracy of analog ports 16 times compared to Rev3

12-bit Digital-Analog Converter (DAC) allows for precise generation of voltages in the range of 0 - 5 V without the need for external components. The converter's output is led to port A0. It can be used to control analog circuits or, combined with an amplifier, to generate sound.

CAN-BUS The RA4M1 microcontroller has built-in support for the CAN interface, which allows data to be transmitted over long distances at high speed and reliability. It is suitable for applications that require a critical reaction time. To use this interface, only an external transceiver is needed, eliminating the need for expensive converters.

The MINIMA version is equipped with an SWD port that allows connecting an external debugger like J-link EDU mini or J-link Base and debugging code directly from Arduino IDE 2.0. This allows for quick analysis with the possibility of stopping the code and viewing variable values in real time.

Durable and practical USB type C connector. It allows easy and convenient cable connection, does not require holding unusual cables just for programming Arduino.


HID support allows for the creation of custom keyboard, mouse, game controller, and control panel projects communicating with the computer via the USB interface. This feature gained huge popularity with Arduino Leonardo, and is now also available in UNO R4.

Arduino UNO Rev4 is 100% compatible with all shield expansion modules for UNO produced by Arduino. Due to the compatibility of logic voltages and pinout, modules from other manufacturers are also compatible with the new version, but before buying unofficial extensions, it is worth making sure that the libraries have been tested with the new revision of the board.

LED matrix - The WiFi version is additionally equipped with a 12x8 matrix of red LEDs, which will be used in the visualization of sensor data, displaying animations and in many other creative projects.

Support for battery powered RTC - UNO R4 WiFi has a connector that allows you to connect a battery supporting the operation of the real time clock and a connector that allows you to turn off the board without disconnecting the power supply.

Error diagnosis while the program is running - the WiFi version has built-in mechanisms that allow detecting the most common errors during program operation, such as division by zero or stack overflow. Thanks to this, you can find the cause of the program's malfunction much faster and significantly reduce the time needed to complete the project.

Comparison of Arduino UNO Rev4 MINIMA and WiFi with UNO Rev3

UNO Rev3 UNO Rev4 MINIMA UNO Rev4 WiFi
Mikrokontroler Atmega 328 RA4M1 RA4M1 + ESP32-S3-MINI
Clock speed 16 MHz 48 MHz 48 MHz
Flash memory 32 kB 256 kB 256 kB
SRAM memory 2 kB 32 kB 32 kB
EEPROM memory 1 kB 8 kB 8 kB
Logic level 5 V 5 V 5 V
Digital ports 14 14 14
PWM 6 6 6
Analog ports (ADC) 6 (10bit) 6 (14bit) 6 (14bit)
SPI/I2C/CAN 1/1/0 1/1/1 1/1/1

Wireless connectivity

 No No WiFi / Bluetooth LE
HID No

Yes

 Yes
SWD No  Yes No
LED matrix No No 12 x 8 czerwona
Qwiic No No Yes
USB USB type A USB type C USB type C

Supply voltage

 6 - 12 V 6 - 24 V 6 - 24 V

Features

  • Microcontroller: Renesas R7FA4M1AB3CFM#AA0
  • Core: ARM Cortex M4
  • Clock speed: 48 MHz
  • Flash memory: 256 kB
  • SRAM memory: 32 kB
  • EEPROM memory: 8 kB
  • Logic level: 5 V
  • ESP32-S3-MINI module for WiFi and Bluetooth wireless connectivity
  • Hardware compatibility with all Shields for older versions of UNO
  • 14 digital ports
  • 6 ports with PWM support
  • 6 analog ports with 14bit ADC
  • 12bit DAC
  • SPI, I2C and CAN interfaces (connection of a transceiver is necessary to use the CAN interface)
  • USB type C connector for programming
  • Default bootloader allowing for programming directly via USB without an external programmer
  • Qwiic connector
  • 12x8 LED matrix
  • HID support
  • Built-in operational amplifiers
  • Maximum single port load: 8 mA
  • A series of protections against reverse polarization and short circuits
  • Microcontroller built-in protection against excessive current on GPIO ports
  • Extended power supply voltage: 6 - 24 V

1185670

Data sheet

Microcontroller
Renesas RA4M1
Core
Cortex-M4
Frequency
48MHz
Flash memory
256kB
RAM
32kB
EEPROM memory
8kB
Number of digital pins
14
Number of PWM channels
6
Ilość wejść analogowych
6
ADC
1x 14-bit
DAC
1x 12bit
CAN
1
USB
1
Ethernet
none
WiFi/BT module
Yes
Bluetooth module
Yes
GSM/GPRS module
No
Logic voltage
5 V
MicroSD slot
No
Supply voltage min
6 V
Supply voltages max
24 V
