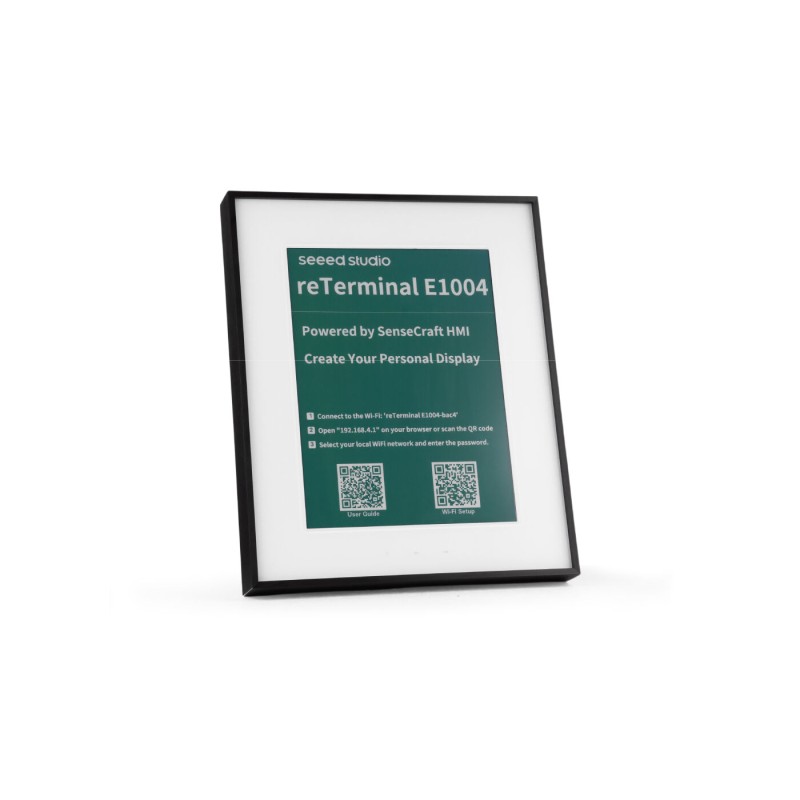

reTerminal E1004 13.3" Full-color - 13.3" ePaper display with ESP32-S3 - SeeedStudio 100064156
ID: 1203709
zł1,379.00
Tax included
zł1,121.14 tax excl.
A 13.3-inch color ePaper display powered by E Ink Spectra™ 6 technology, providing excellent readability and low power consumption. The device is equipped with an ESP32-S3 processor, Wi-Fi and Bluetooth connectivity, and a built-in 5000 mAh battery that provides up to 6 months of operation on a single charge. Thanks to the SenseCraft HMI platform, it allows for quick content creation and remote updating without programming. SeeedStudio 100064156
Description
reTerminal E1004 is a modern 13.3-inch full-color ePaper display, designed for energy-efficient and visually appealing applications. The device is based on E Ink Spectra™ 6 technology, delivering impressive visual quality, vivid colors, and excellent readability even in bright lighting conditions. The display is a fully integrated HMI panel housed in an elegant aluminum frame, ready for use straight out of the box. At its core is a powerful ESP32-S3 processor, enabling wireless connectivity and intelligent functionality.
reTerminal E1004 natively supports the SenseCraft HMI platform, allowing users to design interfaces without writing code. This makes creating dashboards, information boards, or digital photo frames fast and intuitive. Users can take advantage of ready-made templates, drag-and-drop elements, or AI-assisted tools. Images and data can be updated remotely, including via web APIs. The built-in 5000 mAh battery enables up to 6 months of operation on a single charge in low-power mode. The device supports automatic slideshows and real-time data synchronization. Its wireless design allows flexible placement—on a desk or mounted on a wall. The screen orientation can also be switched between portrait and landscape modes with a single click. reTerminal E1004 is ideal as a digital photo frame or information display in homes, offices, retail environments, and public spaces. It is the perfect solution for users seeking a combination of design, technology, and ultra-low power consumption.
Features
- Display: 13.3" E Ink® Spectra™ 6, full color
- Resolution: 1200 × 1600 pixels
- Processor: ESP32-S3 with 8 MB PSRAM
- Memory: 32 MB Flash + 16 GB microSD card (included)
- Connectivity: Wi-Fi 2.4 GHz 802.11 b/g/n, Bluetooth 5.0
- Power supply: built-in 5000 mAh battery
- Operating time: up to 6 months on a single charge (low-power mode)
- Power connector: USB-C 5 V / 1 A
- Sensors: temperature and humidity
- Controls: touch buttons for image switching
- Audio signal: built-in buzzer
- Supported software: SenseCraft HMI
- Operating temperature: 0–40°C
- Dimensions: 376 × 311 × 40 mm
Kit contains
- reTerminal E1004 – 13.3" ePaper display
- USB Type-C cable
- Display stand with screw
- Screwdriver
- Frame mounting hooks (2 pcs)
1203709
Data sheet
- Screen type
- E-Ink/Epaper
- Diagonal (inch)
- 13,3
- Resolution
- 1600 x 1200 px
- Interface
- WiFi/BT
- Touch
- No
