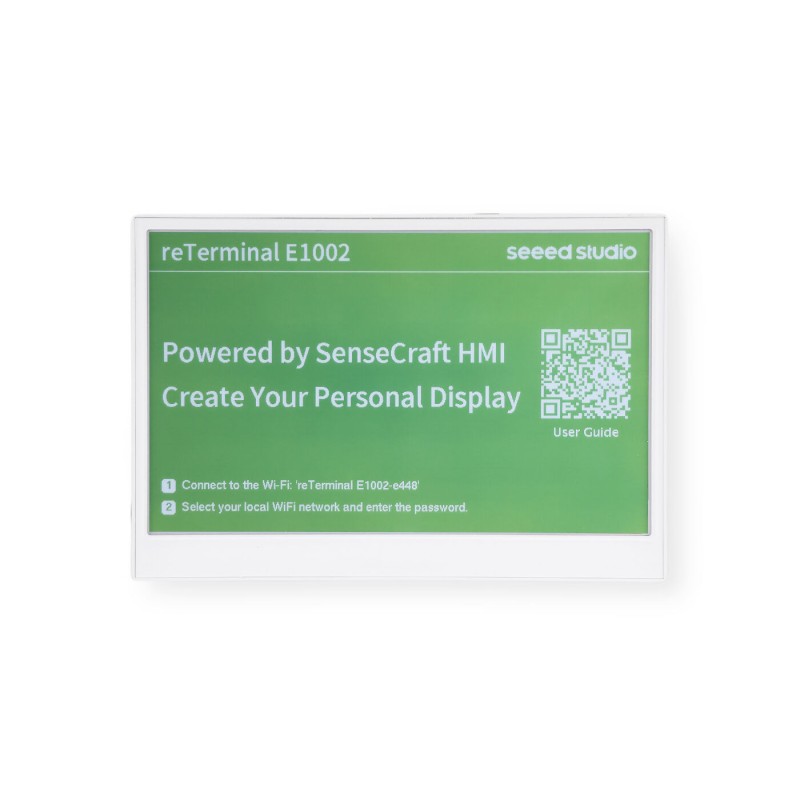

reTerminal E1002 Full-color ePaper - 7.3" ePaper display with ESP32-S3 module
ID: 1202932
zł475.32
Tax included
zł386.44 tax excl.
An HMI device with a 7.3-inch, color ePaper E Ink Spectra 6 display with a resolution of 800 x 480 pixels, ideal for dashboards and data visualization. The built-in ESP32-S3 microcontroller with 8 MB of RAM, along with Wi-Fi and Bluetooth connectivity, enables easy integration with IoT systems and platforms such as SenseCraft HMI, Home Assistant, and Arduino. The device includes temperature and humidity sensors and a 2000 mAh battery, providing up to 3 months of operation in power-saving mode. Seeed Studio 100017057
Description
reTerminal E1002 is a 7.3-inch full-color ePaper display, designed as a ready-to-use HMI device for data visualization and modern dashboards. It features an E Ink® Spectra™ 6 display with a resolution of 800 × 480 pixels, delivering vivid colors, excellent readability, and a print-like appearance—ideal for digital frames and information panels. At its core is an ESP32-S3 with 8 MB PSRAM, ensuring smooth interface performance and extensive expandability.
The device natively supports SenseCraft HMI—a no-code platform that enables drag-and-drop interface design without programming. This allows users to create and deploy custom dashboards based on sensor data or internet APIs within minutes. The reTerminal E1002 also works with Home Assistant (ESPHome), TRMNL E-ink Dashboard, and development environments such as Arduino, PlatformIO, and ESP-IDF. An integrated 2000 mAh battery combined with an energy-efficient design provides up to 3 months of operation on a single charge in deep sleep mode. This makes it easy to place on a desk, mount on a wall, or install anywhere without frequent recharging.
The reTerminal E1002 includes built-in temperature and humidity sensors, as well as a buzzer and microphone for future voice-enabled applications. Its solid enclosure, true out-of-the-box readiness, and options for hardware and software customization make it suitable for home, educational, and industrial use. It is an ideal solution for color IoT dashboards, information systems, data monitoring, and aesthetically pleasing, ultra-low-power ePaper displays.
Features
- Display: 7.3" E Ink® Spectra™ 6, full color
- Resolution: 800 × 480 pixels
- Processor: ESP32-S3 with 8 MB PSRAM
- Memory: 32 MB Flash, microSD card support up to 32 GB (FAT32)
- Wireless connectivity: Wi-Fi 2.4 GHz 802.11 b/g/n, Bluetooth 5.0
- Battery: 2000 mAh, up to 3 months of operation in low-power mode
- Power supply: USB-C 5V / 1A
- Sensors: temperature and humidity
- Additional components: buzzer, microphone
- Supported software: SenseCraft HMI, ESPHome (Home Assistant), Arduino, PlatformIO, ESP-IDF
- Operating temperature range: 0–40°C
- Dimensions: 176 × 120 × 53 mm
Kit contains
- reTerminal E1002 full-color ePaper display
- USB Type-C cable
- Display stand with screw
- Screwdriver
1202932
Data sheet
- Screen type
- E-Ink/Epaper
- Diagonal (inch)
- 7,3
- Resolution
- 800 x 480 px
- Interface
- WiFi/BT
- Touch
- No
Manufacturer BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
Responsible person BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
