3.6inch e-Paper Display E Ink Spectra 6 600x400 SPI - Waveshare 32651
ID: 1202594
zł150.52
Tax included
zł122.37 tax excl.
Full-color 3.6 inch e-Paper display based on E Ink Spectra 6 technology with a resolution of 600x400 pixels, SPI communication, supplied in a version without a driver board. Waveshare 3.6inch e-Paper (E)
Description
The Waveshare 32651 e-Paper display is intended for projects requiring energy-efficient presentation of full-color graphical and textual content. The 3.6 inch panel with a resolution of 600x400 pixels uses E Ink Spectra 6 (E6) technology, enabling six-color image display with high contrast and a very wide viewing angle. The displayed image remains visible without power, and energy is consumed almost exclusively during screen refresh.
The product includes only the e-Paper panel with an FPC ribbon cable, without a HAT-type driver board or any intermediary electronics. The display is designed for direct integration with a custom control system via the SPI interface. Proper operation requires an external e-Paper controller and suitable power supply circuitry.

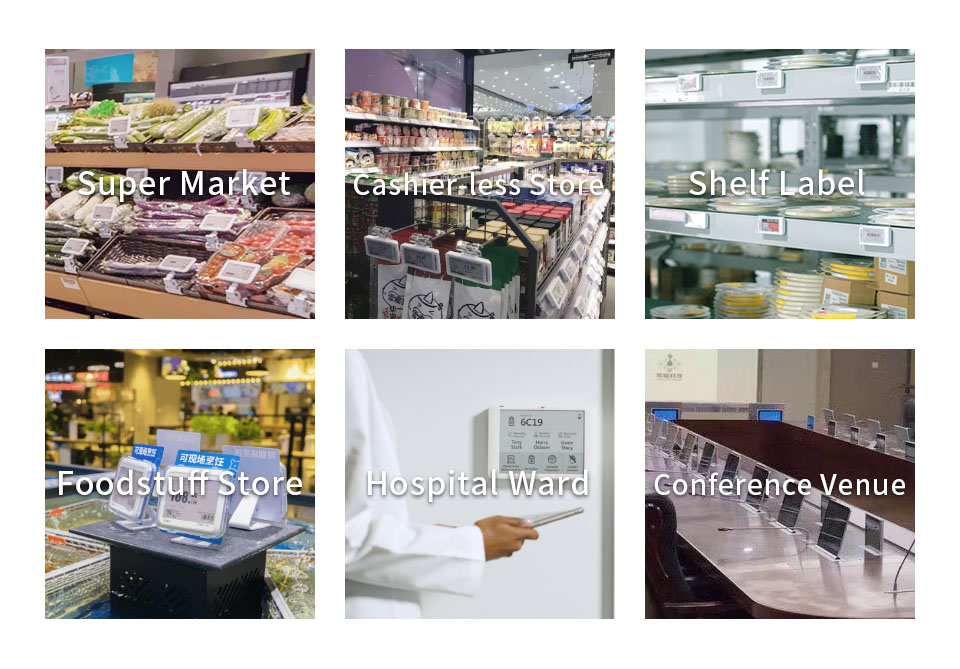

The solution is suitable for price tags, shelf labels, asset identification, information systems, industrial panels, and devices operating continuously with minimal power consumption.

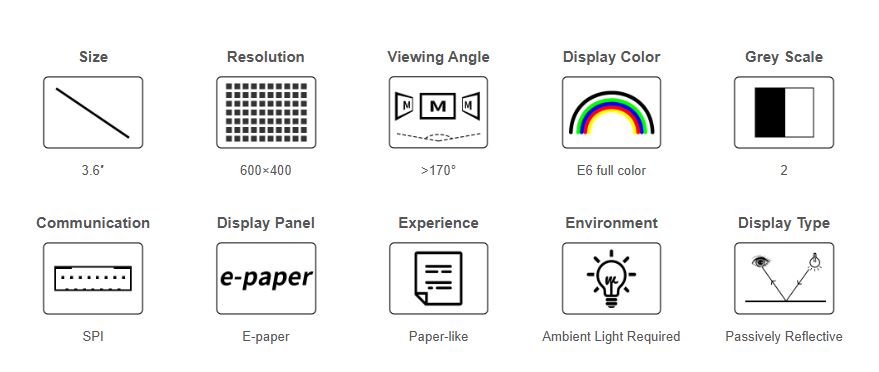

Features
- Display type: e-Paper
- Technology: E Ink Spectra 6 (E6)
- Screen size: 3.6 inch
- Resolution: 600 x 400 pixels
- Display color: Full color (E6)
- Grayscale: 2
- Communication interface: 3-wire SPI, 4-wire SPI
- Operating voltage: 3.3 V
- Viewing angle: >170°
- Full refresh time: approx. 15 s
- Refresh power consumption: <100 mW
- Standby current: <0.01 µA
- Active area size: 76.20 x 50.80 mm
- Pixel pitch: 0.127 x 0.127 mm
- Panel dimensions: 86.60 x 56.00 x 0.78 mm
- Operating principle: Passively reflective, no backlight
- Version: Without driver board
1202594
Data sheet
- Screen type
- E-Ink/Epaper
- Diagonal (inch)
- 3,6
- Resolution
- 600 x 400 px
- Interface
- SPI
- Touch
- No
