HD Camera (I) wide-angle for Raspberry Pi with manual focus - Waveshare 11388
ID: 562325
5906623439270
zł105.85
Tax included
zł86.06 tax excl.
5 MP camera module with OV5647 sensor for Raspberry Pi with MIPI CSI-2 interface (including Raspberry Pi 5, 4B, 3B+, 3A+, Zero, Zero 2W), fisheye lens 1.55 mm, field of view 185°, manual focus adjustment. Waveshare RPi Camera (I)
Description
5 MP camera module with OV5647 sensor designed for Raspberry Pi boards equipped with a CSI connector. The camera supports video recording at 1080p30, 720p60 and 640x480p60/90, as well as still images at a resolution of 2592 x 1944 pixels. Communication is handled via the MIPI CSI-2 interface, enabling high-speed image data transfer.
The module features a fisheye lens with a focal length of 1.55 mm and F2.0 aperture. The field of view is approximately 185° (diagonal), allowing capture of an ultra-wide scene. The lens supports manual focus adjustment.
The camera does not include IR illumination or night vision capability and is intended for operation in visible light conditions. The very wide field of view makes it suitable for robotics, monitoring systems and panoramic imaging applications.
Compact dimensions of 32 x 32 mm and connection via FFC cable allow integration into various embedded systems.
Features
- Compatibility: Raspberry Pi with CSI connector (including Raspberry Pi 5, 4B, 3B+, 3A+, Zero, Zero 2W)
- Sensor: OV5647 (CMOS)
- Resolution: 5 MP (2592 x 1944)
- Video resolution: 1080p30, 720p60, 640x480p60/90
- Interface: MIPI CSI-2
- Sensor size: 1/4"
- Aperture: F2.0
- Focal length: 1.55 mm
- Field of view: 185° (diagonal)
- Focus: manual
- IR illumination: none

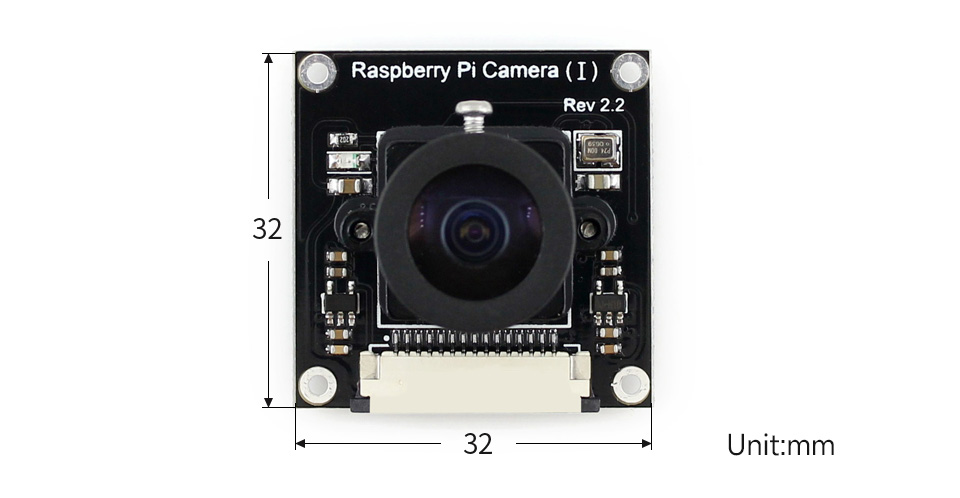

- Dimensions: 32 x 32 mm
Kit includes
- OV5647 camera module
- FFC cable 15-pin 16 cm
- FFC cable for Raspberry Pi Zero ~15 cm
562325
Data sheet
- Resolution
- 5MPx
- Interface
- MIPI CSI-2
- Sensor
- OV5647
- IR filter
- No
- Lens assembly
- none
Manufacturer BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
Responsible person BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
