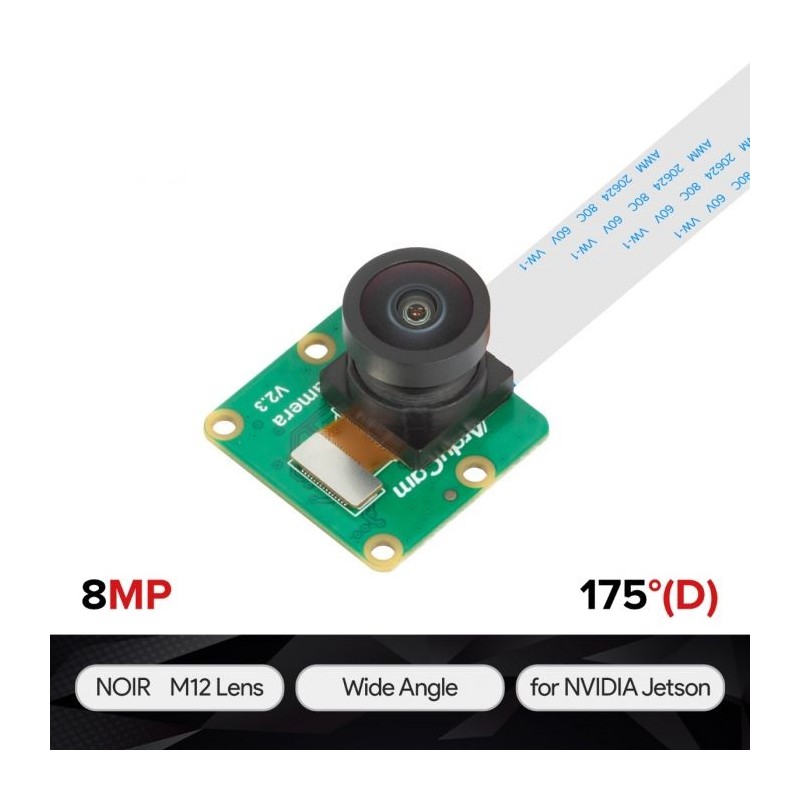

ArduCAM IMX219 Wide Angle IR Sensitive (NoIR) Camera - camera module with IMX219 8MP sensor

Description

The Arducam IMX219 NoIR camera module is an advanced solution primarily designed for NVIDIA Jetson boards, but its versatility allows it to be widely used in other systems such as ARM, DSP, or FPGA. With its wide field of view and high-quality sensor, it is an ideal choice for projects requiring precise image analysis, monitoring, as well as applications utilizing computer vision technology, robotics, or autonomous vehicles.

The IMX219 sensor boasts a high 8-megapixel resolution, allowing for clear and detailed images. This makes it perfect for applications requiring high-quality images for analysis, detection, or object recognition. Thanks to its high resolution, the module can be used in fields like facial recognition, security monitoring, visual inspections, and anomaly detection. The built-in 1.3 mm focal length lens offers an extremely wide field of view of 155° horizontally, 115° vertically, and 175° diagonally. This allows for wide-area image capture, making it a great choice for applications such as space monitoring, obstacle detection in robotics, or recording large scenes in real-time.

The Arducam IMX219 NoIR camera module is particularly unique because of its lack of an IR-cut filter, making the camera highly sensitive to infrared (IR) light. This makes it ideal for applications involving invisible IR light, such as night vision systems, heat detection, or various vision techniques that require capturing infrared radiation. This feature opens up new possibilities across a wide range of applications. Additionally, the module comes equipped with a manual focus system, allowing for precise adjustment of the image based on distance and project requirements. It is an excellent tool for both professionals and enthusiasts, offering ease of use and exceptional image quality. The module is compatible with various platforms, making it a flexible and future-proof product suitable for many different visual systems.

Features

• Image Sensor:
  • Sensor: IMX219
  • Static resolution: 8 Megapixels
  • Video modes (for NVIDIA Jetson Orin NX/Orin Nano/AGX Orin platform):
    • 3280x2464 at 21 fps
    • 3280x1848 at 28 fps
    • 1920x1080 at 30 fps
    • 1640x1232 at 30 fps
    • 1280x720 at 60 fps
  • Sensor resolution: 3280 × 2464 pixels
  • Sensor image area: 3.68 x 2.76 mm (diagonal 4.6 mm)
  • Pixel size: 1.12 µm × 1.12 µm
  • Optical size: 1/4"
  • Infrared sensitivity: No IR-cut filter, sensitive to IR light
• Lens:
  • Focus type: Manual
  • Focal length: 1.3 mm
  • Aperture (F.NO): F2.0
  • Field of view (FOV): 155° (horizontal) × 115° (vertical) × 175° (diagonal)
  • Lens mount: M12 Mount
  • Peak current: 300 mA
  • Camera board size: 25 x 24 mm

Kit contains

• Arducam IMX219 NoIR camera module for NVIDIA Jetson boards
• 15 cm 15-22 pin FPC cable
• 15 cm 22-22 pin FPC cable
