ArduCAM 12MP IMX708 USB UVC Camera - USB camera with 12MP IMX708 sensor
ID: 1195309
5902186308022
zł248.20
Tax included
zł201.79 tax excl.
A USB camera with a Sony sensor, offering 12MP resolution and a wide 66° viewing angle, ideal for surveillance and nature photography. Thanks to its UVC-compliant USB 2.0 interface, it requires no drivers, and the fixed-focus lens ensures fast and stable images. A built-in microphone and compatibility with multiple systems make it an excellent choice for DIY projects and professional applications. ArduCAM B0304
Description

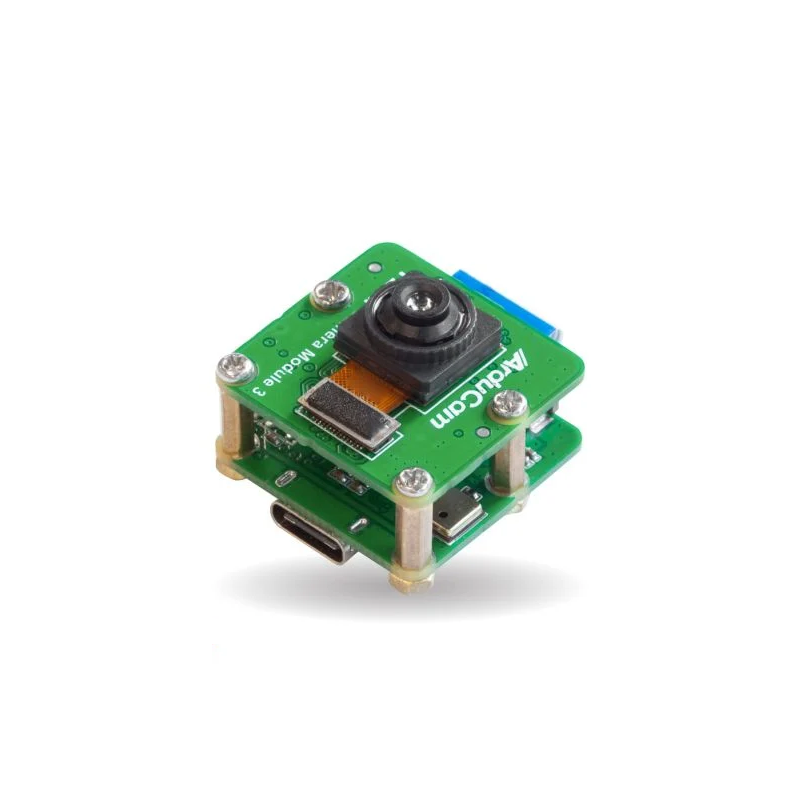

ArduCAM 12MP IMX708 USB UVC Fixed-Focus Camera Module 3 is a versatile and easy-to-use USB camera, based on the high-quality Sony IMX708 image sensor with a 12 MP resolution. The camera uses a USB 2.0 interface compatible with the UVC protocol, which means it requires no additional drivers—just plug it in and it’s ready to go. The fixed-focus lens ensures a stable and fast image without any need for manual adjustment. A 66° (H) field of view allows you to capture a wide scene, making it ideal for applications such as home surveillance, wildlife photography, or use as a webcam.
The module is equipped with a built-in microphone, enabling high-quality audio recording. It supports Windows, Linux, macOS, and Android systems, making it suitable for various environments. With its high resolution of 4608 × 2592 pixels and MJPG/YUY2 support, the device offers clear and detailed imaging. A robust build and compact dimensions make it easy to integrate the camera into a variety of DIY or professional industrial projects. It’s a reliable tool for hobbyists and professionals alike.
Features
- Image sensor: Sony IMX708, 12MP (4608 × 2592)
- Shutter type: Rolling Shutter
- Optical size: 1/2.43"
- Pixel size: 1.4μm × 1.4μm
- Lens: Fixed Focus
- Field of View: 75°(D) × 66°(H) × 41°(V)
- Focus range: from 150 cm to infinity
- IR Filter: Integrated 650nm filter, visible light only
- Video format: MJPG/YUY2
- Supported resolutions (MJPG): 4608x2592@10fps, 2304x1296@30fps, 1920x1080@30fps, 1280x720@30fps
- Interface: USB 2.0, JST B4B-ZR connector
- Power supply: 5V via USB, power consumption up to 1.5W
- Operating temperature: from 0°C to 70°C
- System compatibility: Windows, Linux, MacOS
- Supported UVC controls: brightness, contrast, saturation, white balance, exposure, sharpness, low light compensation
- Dimensions: 24 x 25mm
Kit contains
- ArduCAM IMX708 Fixed Focus Camera Module with UVC adapter
- 1m USB 2.0 cable
1195309
Data sheet
- Resolution
- 12 MPx
- Interface
- USB
- Sensor
- IMX708
- IR filter
- Yes
- Lens assembly
- none
Manufacturer BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
Responsible person BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
