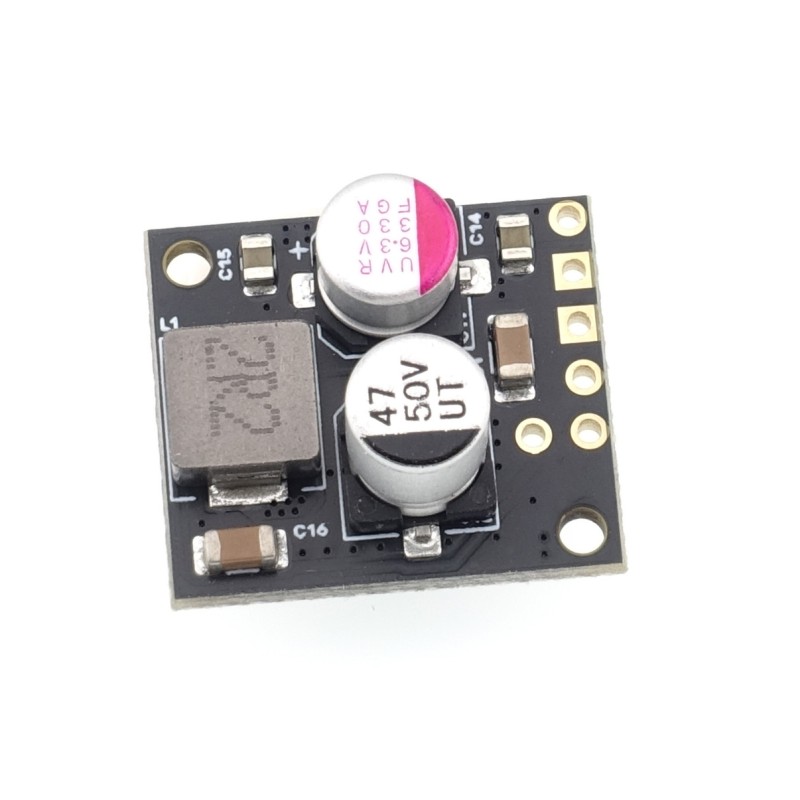

Compact Step-Down switching converter module designed to reduce the input voltage to a regulated 5 V output. Operates with an input voltage from 5 V to 42 V, delivering up to 2.5 A continuous output current and up to 3.5 A peak current. Equipped with an MP4315 regulator, EN control input, PG status output, and protection against overload, overheating, and reverse input polarity. Its compact 21 × 18 mm dimensions allow integration into small electronic devices. MODIG MD07005

24h
Available
Available quantity: 190

Description

The MODIG MD07005 Step-Down converter module reduces DC input voltage to a regulated 5 V output in electronic circuits and embedded systems. It uses an MP4315 switching regulator operating with an input voltage from 5 V to 42 V and a switching frequency of approximately 700 kHz. The maximum output current is 2.5 A during continuous operation and 3.5 A for short periods, depending on thermal conditions. Compact dimensions of 21 × 18 mm allow the module to be used in devices with limited installation space, including power supplies for microcontrollers, sensors, and control circuits.

The converter achieves efficiency exceeding 90% at a 3 A load and features protection against overload, overheating, and reverse input polarity. The EN input allows the regulator to be disabled and switched to standby mode, where current consumption drops below 0.5 mA. The PG output indicates the correct output voltage, making it easier to monitor the power supply circuit. To obtain a regulated 5 V output, the input voltage should be at least 5.5 V.

The PCB features solder pads with a 2.54 mm pitch, allowing the power supply, load, and control signals to be connected using wires or pin headers. The module has two mounting holes with a diameter of 2 mm. Detailed pin descriptions, wiring diagrams, and dimensions are available in the MODIG MD07005 documentation.

Features

  • Electrical specifications
    • Converter type: Step-Down (Buck) switching converter
    • Regulator IC: MP4315
    • Input voltage: 5 V to 42 V
    • Output voltage: 5 V ±5%
    • Minimum difference between input and output voltage: 0.5 V
    • Maximum continuous output current: 2.5 A
    • Maximum peak output current: 3.5 A, depending on thermal conditions
    • Switching frequency: approximately 700 kHz
    • Efficiency: over 90% at a 3 A load
  • Control and protection
    • EN input: enables and disables the regulator
    • Standby current consumption: below 0.5 mA
    • PG output: indicates correct converter operation
    • Overload protection
    • Overtemperature protection
    • Reverse input polarity protection
  • Construction and connections
    • Nominal dimensions: 21 × 18 mm
    • PCB dimensions: 20.3 × 17.8 mm
    • Connections: solder pads with a 2.54 mm pitch
    • Power pins: VI, VO, GND
    • Control pins: EN, PG
    • Mounting holes: 2 × Ø2 mm

Kit Includes

  • Assembled and tested MODIG MD07005 converter module - 1 pc.
1205055

Data sheet

Output voltage
5th
Output current
3,5 A
Converter type
Step-down
Supply voltage min
5 V
Supply voltages max
42 V
