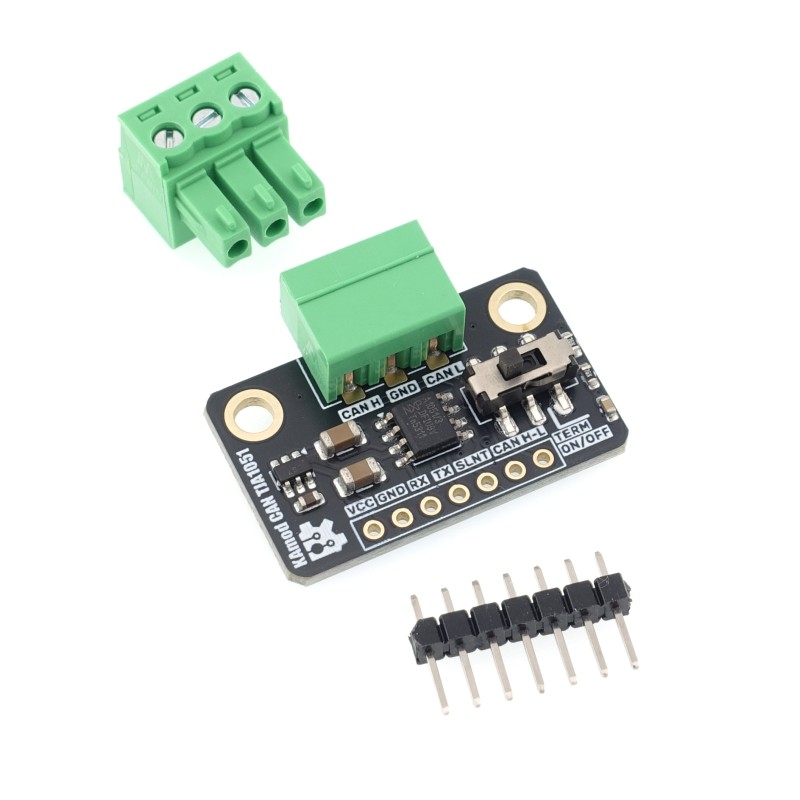

Main view
search
  • Main view
  • Kit
  • Transceiver
ID: 1202965
zł21.50
Tax included

zł17.48 tax excl.

CAN bus transceiver module based on the NXP TJA1051T/3 chip, designed to work with microcontrollers and CAN controllers using RX and TX signals. Supports data transmission at speeds up to 1 Mbps and a supply voltage of 3 V to 5 V thanks to the built-in step-up converter. Equipped with a switchable 120 Ω termination resistor, an SLNT input for activating Silent mode, and connectors for CAN bus communication. The 32 x 19 mm board is designed for automation systems, robotics, and communication between electronic devices. KAmod CAN TJA1051

24h
Available
Available quantity: 200

Description

The KAmod CAN TJA1051 CAN transceiver module enables communication between a CAN controller and the physical CAN bus using the NXP TJA1051T/3 chip. The transceiver converts the controller's digital TX and RX signals into differential CAN-H and CAN-L signals and performs conversion in the opposite direction. It supports data transmission at speeds up to 1 Mbps and works with microcontrollers equipped with a hardware CAN controller or external CAN controllers providing the appropriate signal lines. The module is suitable for automation systems, robotics, control devices, and projects requiring data exchange over a CAN bus.

The built-in step-up converter allows the module to operate with a supply voltage of 3 V to 5 V, ensuring proper transceiver operation even in systems powered by 3 V. The logic levels of the RX and TX signals correspond to the voltage supplied to the VCC input. The module provides an SLNT input for activating Silent mode, in which the bus transmitter is disabled while data reception remains active. This function allows CAN communication to be monitored without transmitting data onto the bus.

The board features a switchable 120 Ω termination resistor that can be connected between the CAN-H and CAN-L lines. The resistor should be enabled when the module is located at one of the bus ends requiring termination. A 7-pin connector with a 2.54 mm pitch is provided for connecting the CAN controller, while the CAN bus can be connected through a 3-pin Phoenix MC connector with a 3.81 mm pitch. The board measures 32 x 19 mm and has two mounting holes with a diameter of 3.2 mm. Detailed information about the pinout, power supply, and connection method is available in the KAmod CAN TJA1051 documentation.

Features

  • CAN communication specifications
    • Module type: CAN bus transceiver
    • Transceiver chip: NXP TJA1051T/3
    • Maximum data rate: 1 Mbps
    • Bus signals: CAN-H, CAN-L
    • Controller interface signals: RX, TX
    • Control input: SLNT (Silent), active high
    • Silent mode: transmitter disabled while data reception remains active
    • Termination resistor: 120 Ω, switchable between CAN-H and CAN-L
    • Requires a CAN controller
  • Power supply and logic levels
    • Supply voltage: 3 V to 5 V DC
    • Minimum power supply current capacity: 100 mA
    • Built-in step-up converter
    • RX and TX logic levels: compatible with the VCC supply voltage
  • Connectors and pinout
    • Controller interface connector: 1x7 pin header, 2.54 mm pitch
    • CAN bus connector: 3-pin Phoenix MC, 3.81 mm pitch
    • VCC: positive power supply input
    • GND: power supply and control signal ground
    • RX: output for data received from the CAN bus
    • TX: input for data transmitted to the CAN bus
    • SLNT: Silent mode activation input
    • CAN-H and CAN-L: differential CAN bus lines
  • Mechanical specifications
    • Board dimensions: 32 x 19 mm
    • Number of mounting holes: 2
    • Mounting hole diameter: 3.2 mm

Kit Includes

  • Assembled and tested KAmod CAN TJA1051 module - 1 pc.
  • 1x7 male pin header, 2.54 mm pitch - 1 pc.
