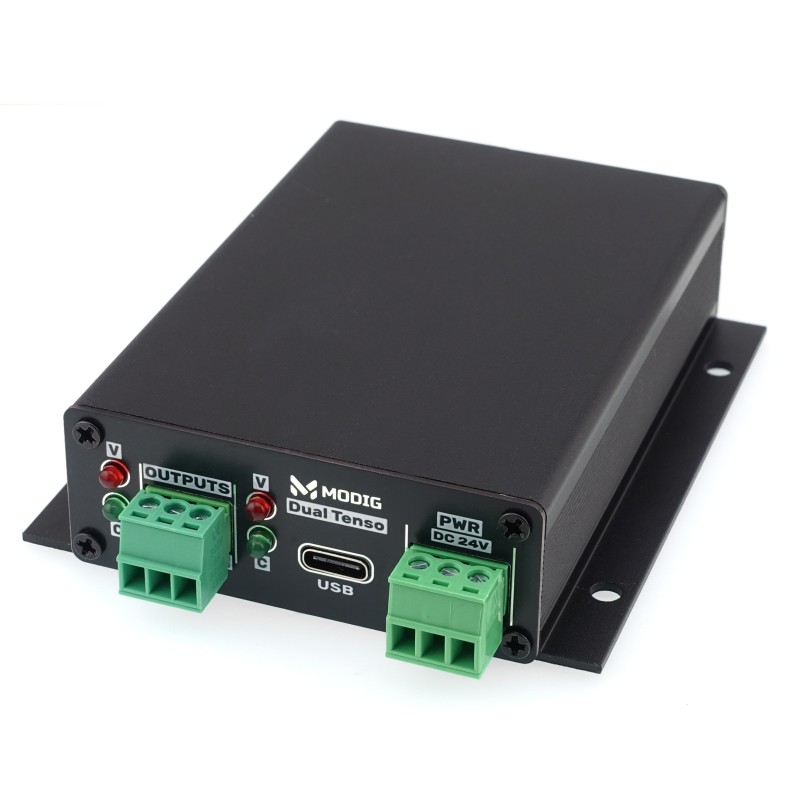

Dual-channel strain gauge transducer designed for use with load cells and strain gauge bridges. Features two independent measurement channels and two configurable analog outputs operating in 0-10 V voltage mode or 0-20 mA and 4-20 mA current modes. The USB-C interface with serial port emulation enables parameter configuration, taring, calibration, and measurement readout in grams. Powered by 24 V DC, the module is designed for weighing systems, automation, and load monitoring applications. MODIG MD61001

24h
Available
Available quantity: 46

Description

The MODIG MD61001 dual-channel strain gauge transducer enables load measurement using load cells and strain gauge bridges. The module features two independent measurement channels that convert signals from connected sensors into proportional analog signals. Each of the two outputs can be configured to operate in 0-10 V voltage mode or 0-20 mA and 4-20 mA current modes. The device is suitable for weighing systems, measurement stations, and industrial automation applications requiring weight or load monitoring.

Communication with a computer is provided through a USB-C interface supporting the CDC-ACM class, which emulates a virtual serial port. Simple text commands allow measurement results, including values converted into grams, to be read and the measurement range and operating mode of each output to be configured. The module supports taring and calibration using the ZERO buttons assigned to individual channels or commands sent via USB. The number of samples used to calculate measurement results can also be adjusted.

A 24 V DC power supply ensures proper operation of the measurement channels and analog outputs. The SENSOR1 and SENSOR2 connectors provide connections for strain gauge bridges, including bridge excitation, differential signal, and shield terminals. The OUTPUTS connector provides two independent analog signals, while LED indicators show the selected output modes. Detailed connector descriptions, communication commands, and calibration procedures are available in the MODIG MD61001 documentation.

Features

  • Measurement specifications
    • Device type: dual-channel strain gauge bridge transducer
    • Number of independent measurement channels: 2
    • Supported sensors: strain gauge bridges and load cells
    • Number of analog outputs: 2, independently configurable
    • Analog output modes: 0-10 V voltage, 0-20 mA current, 4-20 mA current
    • Measurement results readout in grams via USB
    • Configurable measurement ranges: 3 kg and 10 kg by default
    • Configurable measurement range value: 1000 g to 15000 g
    • Weight result display resolution via USB: rounded to 10 g
    • Number of samples used to calculate the result: 10 to 64, default 18
  • Communication and configuration
    • Communication interface: USB-C
    • USB class: CDC-ACM, virtual COM port emulation
    • Communication using GET and SET text commands
    • Reading and configuration of parameters for each measurement channel
    • Taring and calibration using ZERO buttons or the USB interface
    • Calibration using a reference load
    • Configurable calibration weight: 500 g to 10000 g, default 1000 g
    • Calibration parameters stored in non-volatile memory
  • Connectors and indicators
    • Sensor inputs: SENSOR1 and SENSOR2
    • Strain gauge bridge terminals: E+, E-, A+, A-, shield
    • OUTPUTS connector: O1, GND, O2
    • LED indicators for voltage or current output operating modes
    • ZERO buttons assigned to individual channels
  • Power supply
    • Supply voltage: 24 V DC
    • Required power supply current capacity: minimum 0.1 A
    • Power connector: PWR

Kit Includes

  • Assembled and tested MODIG MD61001 module - 1 pc.
  • USB-A to USB-C cable - 1 pc.
