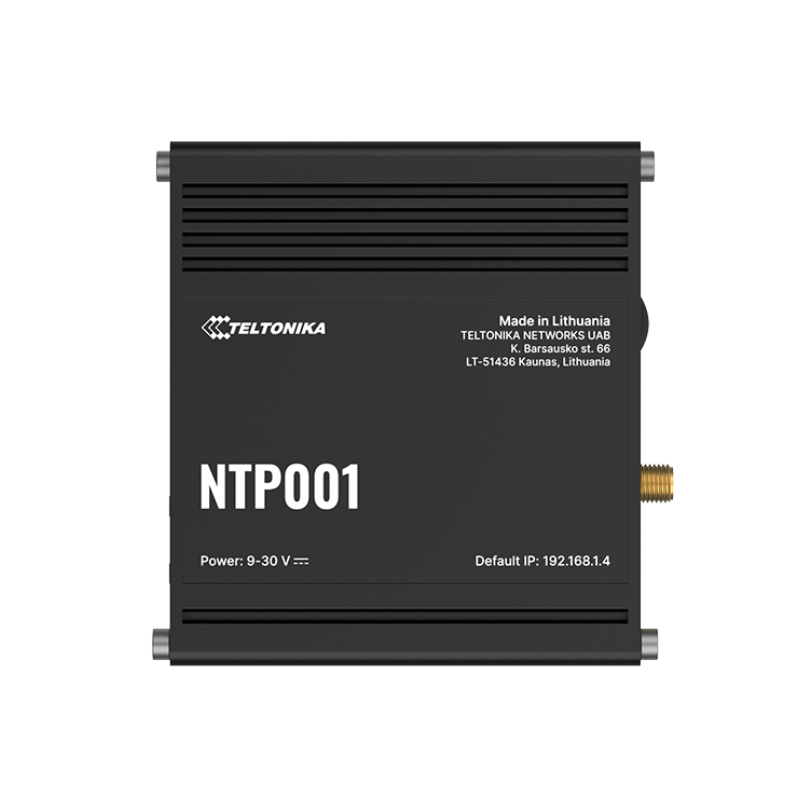

Main view
search
  • Main view
  • Angled view
  • Angled view
  • Side view
  • Side view
ID: 1207978
4779051843275
zł515.00
Tax included

zł418.70 tax excl.

Industrial NTP Stratum 1 time server for synchronizing devices and systems with accurate UTC time without Internet access; GNSS-based synchronization; NTP accuracy over Ethernet of ±1 ms; over 300 NTP requests per second; 10/100 Mbps Ethernet; RS232 and RS485; digital inputs and outputs; Modbus RTU/TCP and MQTT support; 9-30 VDC power supply; RutOS operating system. Teltonika NTP001

2 weeks
Awaiting delivery

Description

Industrial NTP Stratum 1 time server designed for time synchronization in public and private networks without requiring Internet access. Teltonika NTP001 uses GNSS signals from GPS, GLONASS, Galileo and BeiDou as a source of accurate UTC-traceable time, which can then be distributed to devices across the network. The server supports NTPv4 in Unicast, Multicast and Broadcast modes, providing NTP accuracy over Ethernet of ±1 ms and performance exceeding 300 NTP requests per second. Time can also be distributed via RS232 and RS485 interfaces, allowing integration with industrial equipment without an Ethernet interface.

A 10/100 Mbps Ethernet port, RS232 and RS485 interfaces and digital I/Os enable integration with network infrastructure and industrial automation systems. The device also supports Modbus RTU/TCP, Modbus MQTT Gateway, MQTT, SNMP, as well as authentication and access control mechanisms. OpenWrt-based RutOS provides configuration and management through WEB UI, SSH and API. An anodised aluminium housing, 9-30 VDC power input and operating temperature range from -40°C to 75°C allow the NTP001 to operate in industrial automation, energy, telecommunications, monitoring systems, data centres and other installations requiring a common and accurate time source.

Features

  • Time synchronization
    • Type: NTP Stratum 1 time server
    • Protocol: NTPv4
    • Time source: GNSS
    • Supported GNSS systems: GPS, GLONASS, Galileo, BeiDou
    • NTP accuracy over Ethernet: ±1 ms
    • Typical LAN synchronization accuracy: 1-10 ms
    • Performance: over 300 NTP requests per second
    • NTP modes: Unicast, Multicast, Broadcast
    • NTP authentication: MD5, SHA1
    • Daytime Protocol: TCP/UDP
    • Date over Serial: RS232/RS485
    • Cold GPS acquisition: < 120 s
    • Acquisition sensitivity: -146 dBm
    • Reacquisition sensitivity: -157 dBm
    • Tracking sensitivity: -157 dBm
  • Ethernet and interfaces
    • 1 x RJ45 10/100 Mbps port
    • IEEE 802.3, IEEE 802.3u and IEEE 802.3az compliance
    • Auto MDI/MDIX
    • RS232: TX, RX, RTS, CTS
    • RS485: D+, D-, R+, R-
    • RS485: 2-wire and 4-wire operation
    • 1 x SMA connector for GNSS antenna
    • 16-pin industrial terminal block
    • Reset button
  • Inputs and outputs
    • 3 x digital input
    • Digital input logic low: 0-6 V
    • Digital input logic high: 8-30 V
    • 3 x open-collector digital output
    • Maximum output parameters: 30 V / 300 mA
  • Industrial and communication protocols
    • Modbus RTU: Client, Server via RS232 and RS485
    • Modbus TCP: Client, Server
    • Modbus MQTT Gateway
    • MQTT
    • TCP
    • UDP
    • IPv4
    • IPv6
    • ICMP
    • NTP
    • DNS
    • HTTP
    • HTTPS
    • SSL/TLS
    • ARP
    • SSH
    • DHCP
    • SNMP
  • Network and security
    • Pre-shared key authentication
    • Digital and X.509 certificates
    • TACACS+
    • Internal and external RADIUS user authentication
    • IP and login attempt blocking
    • Time-based login blocking
    • Access control for SSH, WEB UI, CLI and Telnet
    • 802.1X
    • WEB filtering
    • DDNS with support for over 77 service providers
    • Ping Reboot
    • Wget Reboot
    • Periodic Reboot
  • Management and software
    • Operating system: OpenWrt-based RutOS
    • WEB UI via HTTP/HTTPS
    • SSH v1 and v2
    • SNMP v1, v2 and v3
    • SNMP Trap
    • JSON-RPC
    • Modbus TCP status/control
    • Teltonika Networks Web API
    • Firmware updates via WEB UI
    • Configuration profiles
    • Configuration backup
    • Firmware updates with settings retention
    • BusyBox shell, Lua 5.1, C and C++ support
    • SDK for custom software development
  • Hardware
    • CPU: MediaTek 580 MHz, MIPS 24KEc
    • RAM: 128 MB DDR2
    • Flash storage: 16 MB NOR Flash
  • Power supply
    • Input voltage: 9-30 VDC
    • Power connection via 16-pin terminal block
    • Overvoltage protection
    • Reverse polarity protection
    • Surge protection: ±1 kV, 50 µs max.
    • Idle power consumption: < 2 W
    • Maximum power consumption: < 3.5 W
  • Mechanical and environmental specifications
    • Housing: anodised aluminium
    • Dimensions: 83 x 25 x 82.6 mm
    • Weight: 180 g
    • Ingress protection rating: IP30
    • Operating temperature: -40°C to 75°C
    • Operating humidity: 10% to 90%, non-condensing
    • DIN rail, wall or flat-surface mounting with an additional mounting kit
    • 1 x power LED
    • 2 x GNSS status LED
    • 1 x NTP server status LED
    • 3 x I/O status LED

Kit includes

  • Teltonika NTP001 NTP server
  • Quick Start Guide
  • 2 x 8-pin terminal block connector
1207978

Data sheet

Device Type
NTP time server
WiFi module
No
Wi-Fi standard
None
WiFi Band
None
Number of Ethernet Ports
1
Ethernet Speed
10/100 Mb/s
PoE
No
VPN
No
Bluetooth module
No
DIN Rail Mounting
Yes
Power supply voltage
9 - 30 V DC
Tightness class
IP30
