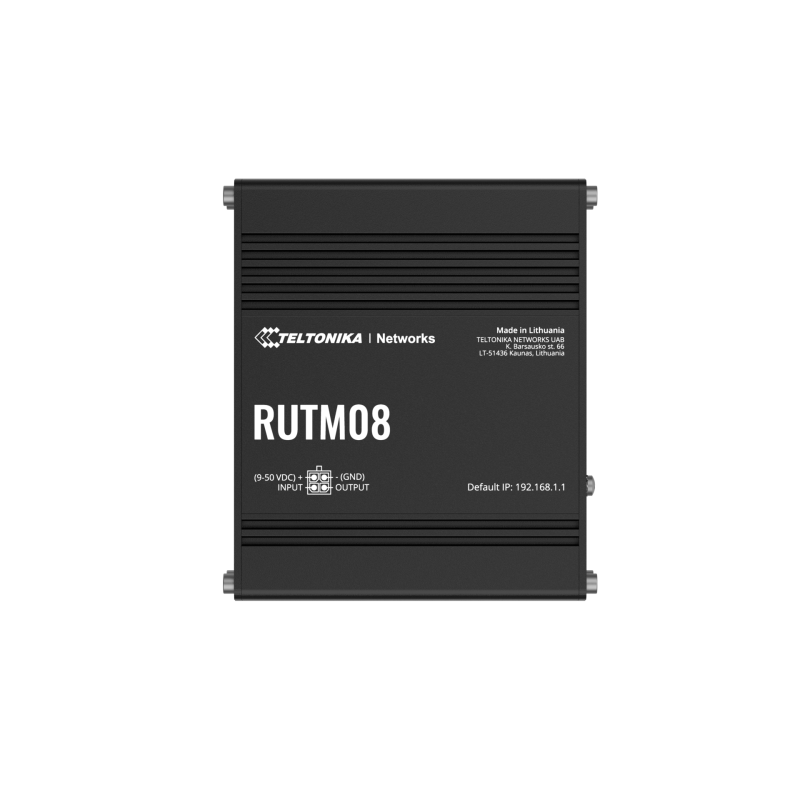

Main view
search
  • Main view
  • Angled view
  • Angled view
  • Side view
  • Side view
ID: 1208039
4779051840465
zł426.15
Tax included

zł346.46 tax excl.

Industrial wired router for automation, IoT, M2M and network infrastructure; 1 WAN and 3 LAN Gigabit Ethernet ports; support for up to 128 port- and tag-based VLANs; automatic Failover and Load Balancing; Modbus TCP/USB, DNP3, DLMS/COSEM, OPC UA, BACnet/IP and MQTT; OpenVPN, IPsec, WireGuard, ZeroTier and Tailscale; USB 2.0; digital input and output; dual-core MediaTek 880 MHz CPU; 256 MB DDR3 RAM; passive PoE 9-50 VDC; RutOS; Teltonika RMS; operating temperature from -40°C to 75°C. Teltonika RUTM08

24h
Available
Available quantity: 1

Description

Industrial wired router designed for building and segmenting Ethernet networks in automation, IoT, M2M and distributed industrial installations. Teltonika RUTM08 provides four 10/100/1000 Mbps Gigabit Ethernet ports, including one WAN and three LAN ports, along with support for up to 128 port- and tag-based VLANs. Static and dynamic routing, Policy Based Routing, automatic Failover, Load Balancing and extensive VPN functionality support redundant and isolated network architectures. The router supports OpenVPN, IPsec, WireGuard, ZeroTier and Tailscale, as well as industrial and M2M protocols including Modbus, DNP3, DLMS/COSEM, OPC UA, BACnet and MQTT.

A dual-core MediaTek 880 MHz processor, 256 MB of DDR3 RAM and 256 MB of NAND Flash memory provide resources for network services and M2M communication. The USB 2.0 port supports storage devices, USB-to-Serial adapters, additional modems and other peripherals, while the digital input and open-collector output enable interaction with external equipment. OpenWrt-based RutOS provides firewall, VLAN, VPN, traffic monitoring and IoT integration functions, while Teltonika RMS enables remote management, access and VPN services. 9-50 VDC power input and passive PoE via the LAN1 port, an anodised aluminium enclosure and an operating temperature range from -40°C to 75°C support deployment in industrial automation, energy systems, transportation, monitoring installations and wired IoT infrastructure.

Features

  • EEthernet
    • 1 x WAN RJ45 port 10/100/1000 Mbps
    • 3 x LAN RJ45 ports 10/100/1000 Mbps
    • Total: 4 x Gigabit Ethernet ports
    • IEEE 802.3, IEEE 802.3u and IEEE 802.3az compliant
    • Auto MDI/MDIX
    • Support for up to 128 port- and tag-based VLANs
  • Network and routing
    • Static routing
    • Dynamic routing: BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP
    • Policy Based Routing
    • Network Backup: VRRP and wired connections
    • Automatic Failover
    • Load Balancing for multiple WAN connections
    • Protocols: TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, SFTP, FTP, SMTP, SSL/TLS, ARP, VRRP, PPP, PPPoE, UPnP, SSH, DHCP, Telnet, SMPP, SNMP, MQTT, Wake On LAN, VXLAN
    • VoIP Passthrough: H.323 and SIP ALG
    • DHCP Server and DHCP Relay
    • QoS / Smart Queue Management
    • DDNS
    • DNS over HTTPS
    • Hotspot
    • SSHFS
    • VRF
    • Real-time traffic monitoring
  • VLAN
    • Up to 128 VLANs
    • Port-based VLAN
    • Tag-based VLAN
  • Security
    • Firewall
    • NAT, NAT-T, NAT64 and DMZ
    • 802.1X Client
    • DDoS attack prevention
    • Port scan prevention
    • Web filtering
    • Access control for SSH, WEB UI, CLI and Telnet
    • Authentication using pre-shared keys and X.509 certificates
    • TACACS+
    • RADIUS
    • Certificate Manager
  • VPN
    • OpenVPN
    • IPsec with IKEv1 and IKEv2
    • WireGuard
    • ZeroTier
    • Tailscale
    • GRE
    • PPTP
    • L2TP and L2TPv3
    • SSTP
    • DMVPN
    • Tinc
    • Stunnel
  • Industrial and IoT protocols
    • Modbus TCP: Client, Server
    • Modbus via USB
    • OPC UA: Client, Server
    • BACnet/IP: Router
    • DNP3: Station, Outstation
    • DNP3 via TCP and USB
    • DLMS/COSEM: Client
    • DLMS/COSEM via TCP and USB
    • MQTT
    • Modbus MQTT Gateway
    • Data to Server: HTTP(S), MQTT, Azure MQTT
    • Lua scripting support in Data to Server
    • Teltonika Networks Web API
  • USB
    • 1 x USB Type-A port
    • Standard: USB 2.0
    • Samba Share
    • USB-to-Serial
    • External HDD support
    • Flash drive support
    • Additional modem support
    • Printer support
    • USB-to-Serial adapter support
    • Supported file systems: FAT, FAT32, exFAT, NTFS read-only, ext2, ext3, ext4
  • Inputs and outputs
    • 1 x digital input
    • Digital input logic low: 0-6 V
    • Digital input logic high: 8-50 V
    • 1 x open-collector digital output
    • Maximum output parameters: 50 V / 300 mA
    • Input and output on the 4-pin power connector
    • Event support via Email and RMS
    • I/O Juggler
  • Management and software
    • Operating system: OpenWrt-based RutOS
    • WEB UI via HTTP/HTTPS
    • Teltonika Remote Management System (RMS)
    • FOTA
    • SSH v1 and v2
    • SNMP v1, v2 and v3
    • SNMP Trap
    • TR-069
    • JSON-RPC
    • MQTT Broker and MQTT Publisher
    • Email notifications
    • Cumulocity support
    • Azure IoT Hub support
    • Package Manager
    • BusyBox shell, Lua, C and C++ support
    • SDK for custom software development
  • Hardware
    • Processor: MediaTek Dual-Core 880 MHz MIPS1004Kc
    • RAM: 256 MB DDR3
    • Flash memory: 16 MB Serial NOR Flash
    • NAND Flash: 256 MB Serial NAND Flash
  • Power supply
    • Power connector: industrial 4-pin DC
    • Input voltage: 9-50 VDC
    • Reverse polarity protection
    • Surge protection
    • Passive PoE through LAN1
    • Passive PoE: Mode B, 9-50 VDC
    • Passive PoE not compliant with IEEE 802.3af, IEEE 802.3at or IEEE 802.3bt
    • Idle power consumption: below 1.8 W
    • Maximum power consumption: below 5.5 W
  • Mechanical and environmental specifications
    • Enclosure: anodised aluminium
    • Dimensions: 115 x 32.2 x 95.2 mm
    • Weight: 353 g
    • Ingress protection rating: IP30
    • Operating temperature: from -40°C to 75°C
    • Operating humidity: from 10% to 90%, non-condensing
    • 4 x RJ45 10/100/1000 Mbps ports
    • 1 x USB Type-A port
    • 1 x 4-pin power connector
    • 8 x LAN status LED
    • 1 x power LED
    • 1 x grounding screw
    • Reset button
    • DIN rail, wall or flat-surface mounting with an additional mounting kit

Kit includes

  • Teltonika RUTM08 router
  • 18 W power supply
  • 1.5 m Ethernet cable
  • Quick Start Guide
1208039

Data sheet

Device Type
Router
WiFi module
No
Wi-Fi standard
None
WiFi Band
None
Number of Ethernet Ports
4
Ethernet Speed
10/100/1000 Mb/s
PoE
Yes
VPN
Yes
Bluetooth module
No
DIN Rail Mounting
No
Power supply voltage
9 - 50 V DC
Tightness class
IP30
