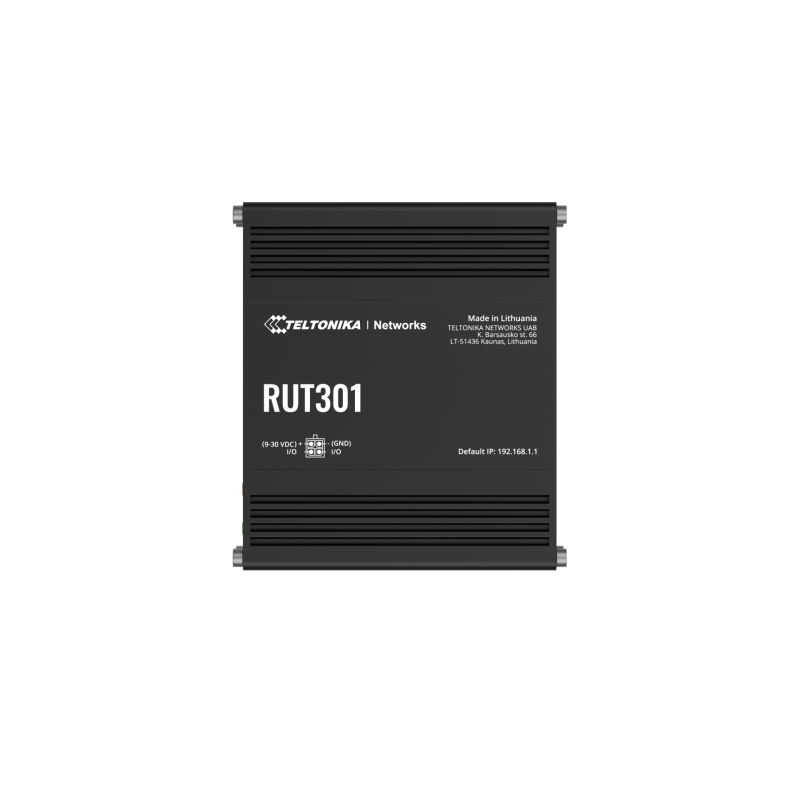

Main view
search
  • Main view
  • Angled view
  • Angled view
  • Side view
  • Side view
ID: 1208012
4779051840786
zł291.83
Tax included

zł237.26 tax excl.

Industrial Ethernet router for building and isolating wired networks in automation, industrial systems and IoT installations; 5 x 10/100 Mbps Ethernet ports; 1 x WAN and 4 x LAN; 2 configurable digital I/O; USB 2.0; Modbus TCP/USB, DNP3, DLMS/COSEM, OPC UA, BACnet and MQTT; advanced VPN and firewall functions; 9-30 VDC power supply; aluminium housing; RutOS operating system; Teltonika RMS support. Teltonika RUT301

24h
Available
Available quantity: 2

Description

Industrial Ethernet router designed for building, isolating and securing wired networks in automation systems, industrial installations and IoT solutions. Teltonika RUT301 features five 10/100 Mbps Ethernet ports – one WAN and four LAN ports, allowing several network devices to be connected directly without an additional switch in simple installations. The router also provides a USB 2.0 port and two configurable digital I/O lines, which can operate as digital inputs or open-collector outputs. USB support enables connection of external storage, USB-to-Serial adapters, an additional modem or a printer, expanding integration possibilities in industrial environments.

The OpenWrt-based RutOS operating system provides static and dynamic routing, load balancing, wired failover, firewall, VLAN, VPN, QoS and support for Modbus TCP and USB, DNP3, DLMS/COSEM, OPC UA, BACnet and MQTT. Teltonika RMS enables remote configuration, monitoring, firmware updates and device access. A 9-30 VDC power input, aluminium housing, operating temperature range from -40°C to 75°C and support for DIN rail, wall or flat-surface mounting allow the RUT301 to be used in control cabinets, machine networks, monitoring systems, retail infrastructure and other installations requiring a compact wired router with industrial networking functions.

Features

  • Ethernet
    • 1 x RJ45 WAN port, 10/100 Mbps
    • 4 x RJ45 LAN ports, 10/100 Mbps
    • Total: 5 x Ethernet ports, 10/100 Mbps
    • IEEE 802.3, IEEE 802.3u and IEEE 802.3az compliance
    • Auto MDI/MDIX
  • USB
    • 1 x USB Type-A port
    • Standard: USB 2.0
    • Samba Share support
    • USB-to-Serial support
    • External HDD support
    • USB flash drive support
    • Additional modem support
    • Printer support
    • USB-to-Serial adapter support
    • Supported file systems: FAT, FAT32, exFAT, NTFS read-only, ext2, ext3, ext4
  • Inputs and outputs
    • Up to 2 x configurable digital input
    • Up to 2 x configurable digital output
    • Shared I/O lines
    • Digital input logic low: 0-6 V
    • Digital input logic high: 8-30 V
    • Open-collector outputs
    • Maximum output parameters: 30 V / 300 mA
    • Event support via Email and RMS
    • I/O Juggler for triggering events based on I/O state
  • Industrial and IoT protocols
    • Modbus TCP: Client, Server
    • Modbus over USB
    • DNP3: Station, Outstation over TCP and USB
    • DLMS/COSEM: Client over TCP and USB
    • OPC UA: Client, Server
    • BACnet/IP: Router
    • BACnet RTU over USB
    • MQTT
    • Modbus MQTT Gateway
    • Data to Server: HTTP(S), MQTT, Azure MQTT
    • Teltonika Networks Web API
  • Network and routing
    • Static routing
    • Dynamic routing: BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP
    • Policy Based Routing
    • Network Backup: VRRP, wired connections
    • Automatic Failover
    • Load Balancing for multiple WAN connections
    • Protocols: TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, SFTP, FTP, SMTP, SSL/TLS, ARP, VRRP, PPP, PPPoE, UPnP, SSH, DHCP, Telnet, SMPP, SNMP, MQTT, Wake On LAN, VXLAN
    • VoIP Passthrough: H.323 and SIP ALG
    • DHCP Server and DHCP Relay
    • QoS / Smart Queue Management
    • DDNS
    • DNS over HTTPS
    • Hotspot
    • SSHFS
    • Real-time network traffic monitoring
  • Security and VPN
    • Firewall
    • NAT, NAT-T, NAT64 and DMZ
    • Port-based and tag-based VLAN
    • DDoS attack prevention
    • Port scan prevention
    • Web filtering
    • Access control for SSH, WEB UI, CLI and Telnet
    • Pre-shared key and X.509 certificate authentication
    • TACACS+
    • RADIUS
    • 802.1X
    • Certificate Manager
    • OpenVPN
    • IPsec with IKEv1 and IKEv2
    • WireGuard
    • ZeroTier
    • GRE
    • PPTP
    • L2TP and L2TPv3
    • SSTP
    • DMVPN
    • Tinc
    • Stunnel
  • Management and software
    • Operating system: OpenWrt-based RutOS
    • WEB UI via HTTP/HTTPS
    • Teltonika Remote Management System (RMS)
    • FOTA
    • SSH v1 and v2
    • SNMP v1, v2 and v3
    • SNMP Trap
    • TR-069
    • JSON-RPC
    • MQTT Broker and MQTT Publisher
    • Cumulocity support
    • Azure IoT Hub support
    • Package Manager
    • BusyBox shell, Lua, C and C++ support
    • SDK for custom software development
  • Hardware
    • CPU: MediaTek 580 MHz, MIPS 24KEc
    • RAM: 128 MB DDR2
    • Flash storage: 16 MB Serial NOR Flash
  • Power supply
    • Input voltage: 9-30 VDC
    • Power connector: industrial 4-pin connector
    • Reverse polarity protection
    • Voltage surge and transient protection
    • Idle power consumption: < 0.8 W
    • Maximum power consumption: < 3.8 W
  • Mechanical and environmental specifications
    • Housing: anodised aluminium
    • Dimensions: 100 x 30 x 85 mm
    • Weight: 233 g
    • Ingress protection rating: IP30
    • Operating temperature: -40°C to 75°C
    • Operating humidity: 10% to 90%, non-condensing
    • DIN rail, wall or flat-surface mounting with an additional kit
    • 1 x WAN status LED
    • 4 x LAN status LED
    • 1 x power LED
    • Reset button

Kit includes

  • Teltonika RUT301 router
  • 9 W power supply
  • 1.5 m Ethernet cable
  • Quick Start Guide
1208012

Data sheet

Device Type
Router
WiFi module
No
Wi-Fi standard
None
WiFi Band
None
Number of Ethernet Ports
5
Ethernet Speed
10/100 Mb/s
PoE
No
VPN
Yes
Bluetooth module
No
DIN Rail Mounting
Yes
Power supply voltage
9 - 30 V DC
Tightness class
IP30
