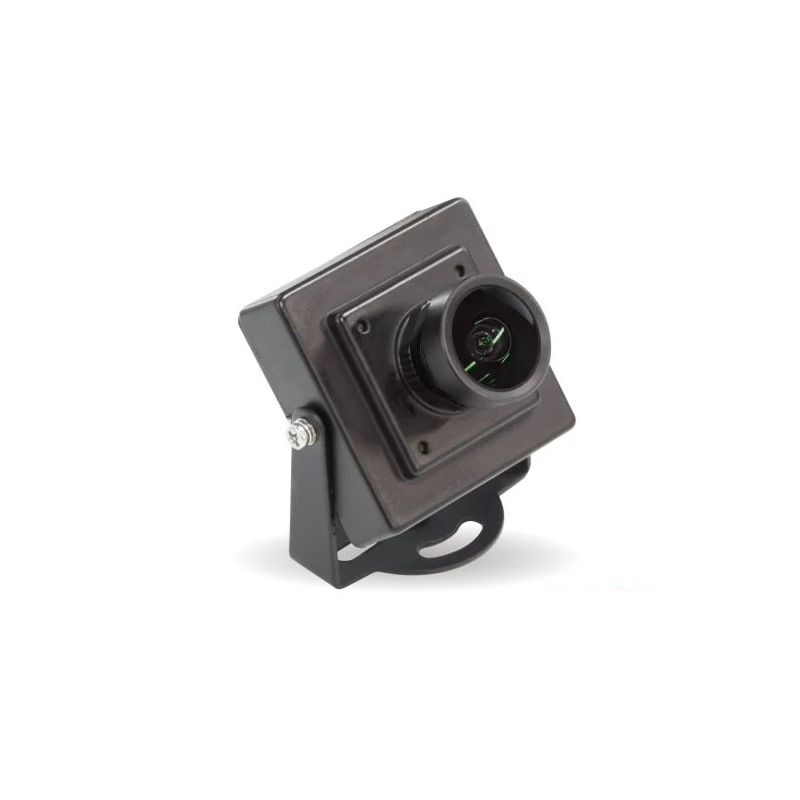

ArduCAM 5MP OV5648 USB Camera - USB camera with 5MP OV5648 sensor
ID: 1195307
5902186308008
zł198.08
Tax included
zł161.04 tax excl.
This OV5648-based camera offers a 2592x1944 px resolution at 30 fps and a wide 95° field of view, making it ideal for surveillance, streaming, and industrial applications. Equipped with an M12 lens with manual focus, a metal housing, a microphone, and an IR-cut filter, it delivers high-quality image and sound with realistic color reproduction. The camera is plug-and-play and compatible with Windows, Linux, Android, Mac OS, and platforms such as the Raspberry Pi. ArduCAM B0454C
Description
This USB camera is based on the OV5648 image sensor and offers a resolution of up to 2592×1944 pixels at 30 frames per second. This high-quality device is equipped with an M12 lens with manual focus adjustment and a metal housing that ensures both durability and aesthetic design. With a wide horizontal field of view of 95°, the camera is ideal for applications such as surveillance, video conferencing, live streaming, or 3D printer monitoring.
The device supports MJPG and YUY2 compression and various formats and frame rates, making it a flexible tool for a wide range of environments. It operates on a plug-and-play basis without the need for additional drivers, ensuring full compatibility with Windows, Linux, Android, and Mac OS. Thanks to the integrated IR-cut filter, the camera operates exclusively in the visible light spectrum, delivering realistic color reproduction.
The camera is also equipped with a built-in microphone, further enhancing its functionality. It operates reliably with 5V power supply and across a wide operating temperature range, making it suitable for both home and industrial use. The product is also an excellent fit for projects based on Raspberry Pi and visual automation systems.
Features
- Sensor: OV5648 CMOS, 5 MP
- Maximum resolution: 2592 × 1944 pixels
- Shutter type: Rolling shutter
- Output format: MJPG / YUY2
- Pixel size: 1.4 µm × 1.4 µm
- Lens: M12
- Focal length 2.1 mm, FOV 95° (H), 110° (D), 76° (V)
- IR filter: IR-cut, visible light only
- Focus adjustment: Manual Focus
- TV distortion: <20%
- Interface: USB 2.0 (B4B-ZR connector)
- UVC compliant
- Built-in mono microphone
- Supported OS: Windows, Linux, Android, Mac OS
- UVC controls: brightness, contrast, saturation, sharpness, white balance, gain
- Power supply voltage: 5V DC ±5%
- Current consumption: up to 300 mA
- Operating temperature: -20°C to 70°C
- Board dimensions: 38 × 38 mm
Kit contains
- ArduCAM 5MP Wide Angle USB Camera
- 1 m USB cable
- Quick start guide
1195307
Data sheet
- Resolution
- 5MPx
- Interface
- USB
- Sensor
- OV5648
- IR filter
- Yes
- Lens assembly
- M12
