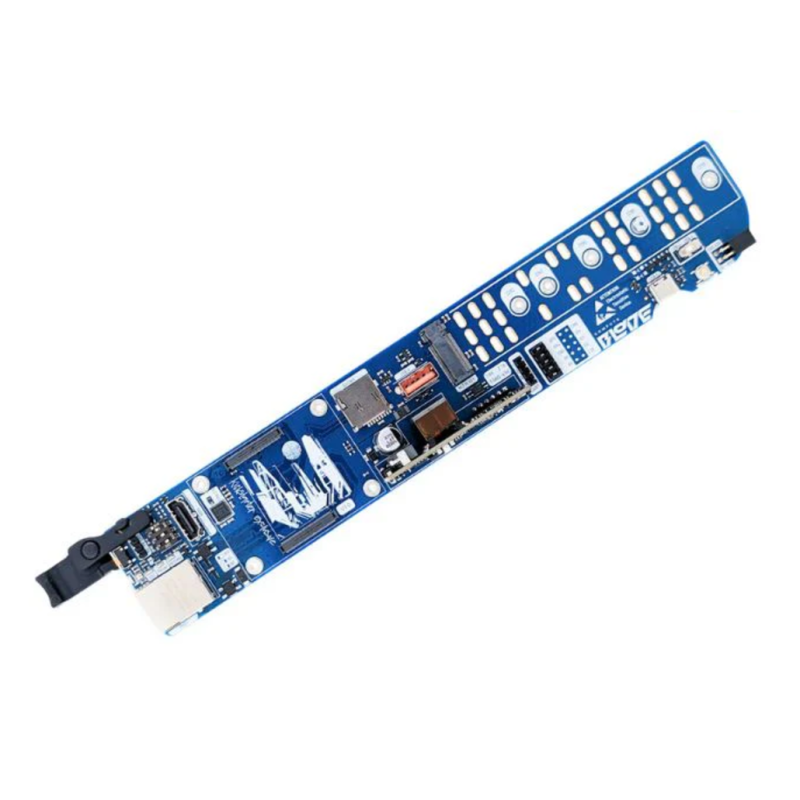

BladeDev-V1-0 - Baseboard for Raspberry Pi CM4 and CM5
ID: 1195108
zł363.12
Tax included
zł295.22 tax excl.
Advanced carrier board compatible with Raspberry Pi Compute Module 5 (CM5) and Compute Module 4 (CM4), offering support for modules in high-performance and energy-efficient servers. With PoE power supply, rack-mountability, and support for up to 20 units in a 1U space, it allows for scaling performance to 80 ARM cores, 160 GB RAM, and 10 TB NVMe storage, meeting needs from IoT projects to advanced cloud systems. BladeDev-V1-0
Description
The Compute Blade is a professional baseboard designed for use with the Raspberry Pi Compute Module 5 (CM5), Compute Module 4 (CM4), and compatible modules. With support for Power over Ethernet (PoE) and industrial rack mounting, the Compute Blade enables the creation of an efficient, energy-saving, plug-and-play server suitable for both home and professional data centers.
Engineered for 24/7 operation, it offers reliability and high performance. Up to 20 Compute Blades can be installed in a 1U standard 19-inch rack slot, delivering up to 80 ARM cores, 160 GB of RAM, and 10 TB NVMe storage. The DEV version of the Compute Blade adds features like WiFi, Bluetooth, and an HDMI port. This solution is ideal for applications demanding high computing density, ranging from simple projects to advanced cloud systems.
Features
- Compatibility: Raspberry Pi Compute Module 4 / 4 Lite, Raspberry Pi Compute Module 5 / 5 Lite, and CM4/CM5-compatible boards
- M.2 NVMe connector supporting up to 22110 form factor (2230, 2242, 2260, 2280)
- Micro SD card slot
- Networking: Gigabit Ethernet (WiFi available on certain CM4/CM5 models, not recommended for rack environments)
- GPIO: 2 UART, 7 programmable GPIOs (including I2C), fan connector, programmable button, and 2 controllable RGB LEDs
- Operating Voltage: 5V USB-C, 5.1V Power over Ethernet IEEE 802.3at (PoE+) delivering up to 30W at 5.1V
- Power Consumption: 2–8W during typical operation
- Ports: HDMI (4K60), USB-A, USB-C
- WiFi and Bluetooth support
- EEPROM write protection
- Switchable WiFi, Bluetooth, and nRPIBOOT mode (requires WiFi/BT-enabled CM5)
- Dimensions: 42.5 x 250 x 17.5 mm
