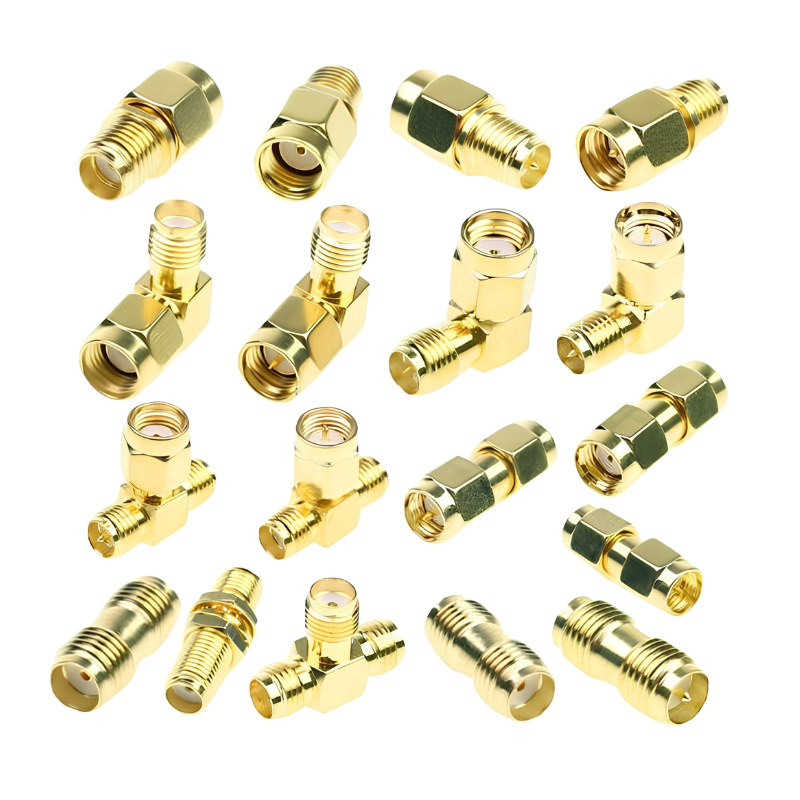

SMA 50Ω Adapter Kit for WiFi Antennas, 18 pcs.
ID: 1208128
zł98.35
Tax included
zł79.96 tax excl.
A set of 18 50 Ω SMA coaxial adapters designed for connecting and converting standard male and female SMA connectors. The kit includes straight, 90° right-angle, T-type, and panel-mount adapters suitable for RF signal paths up to 6 GHz. The connectors use the standard SMA interface and are not reverse-polarity RP-SMA connectors.
Description
The adapters can be used to connect cables, antennas, communication modules, and devices equipped with standard SMA-J male and SMA-K female connectors. The DC-6 GHz frequency range allows the kit to be used in 2.4 GHz and 5 GHz WiFi installations, 5.8 GHz systems, wireless data transmission modules, routers, IoT devices, and RF test setups. The kit includes straight and right-angle versions, T-type adapters, and panel-mount adapters.
The bodies are made of gold-plated brass, with gold-plated copper inner contacts and PTFE dielectric. The nominal impedance is 50 Ω, VSWR does not exceed 1.2 over the DC-6 GHz range, and contact resistance is up to 5 mΩ. The adapters use a 1/4-36 UNS SMA thread and are intended for indoor use. The construction is not waterproof.
Features
- Type: RF coaxial adapter kit
- Connector standard: SMA
- Supported interfaces: SMA-J male and SMA-K female
- Number of pieces: 18
- Nominal impedance: 50 Ω
- Frequency range: DC-6 GHz
- VSWR: ≤ 1.2 at DC-6 GHz
- Contact resistance: ≤ 5 mΩ
- Insulation resistance: ≥ 1000 MΩ
- Dielectric withstand voltage: 500 V RMS
- Operating temperature range: -40°C to 85°C
- Body material: gold-plated brass
- Inner contact: gold-plated copper
- Dielectric: PTFE
- Thread: 1/4-36 UNS
- Mechanical durability: ≥ 500 mating cycles
- Mechanical tolerance: ±0.2 mm
- Adapter versions: straight, 90° right-angle, T-type, panel-mount, and couplers
- Intended use: indoor
- Waterproof: no
- RP-SMA standard: no
Kit includes
- 18 SMA adapters in various configurations
- Straight SMA male-to-male adapters
- Straight SMA female-to-female adapters
- SMA male-to-female adapters
- 90° right-angle SMA male-to-female adapters
- T-type adapters
- Panel-mount adapters
- SMA couplers
