I2C RGB Backlight LCD 16x2 Display - 16x2 LCD display module for Arduino (RGB text)
ID: 1183266
5902186310827
zł93.57
Tax included
zł76.07 tax excl.

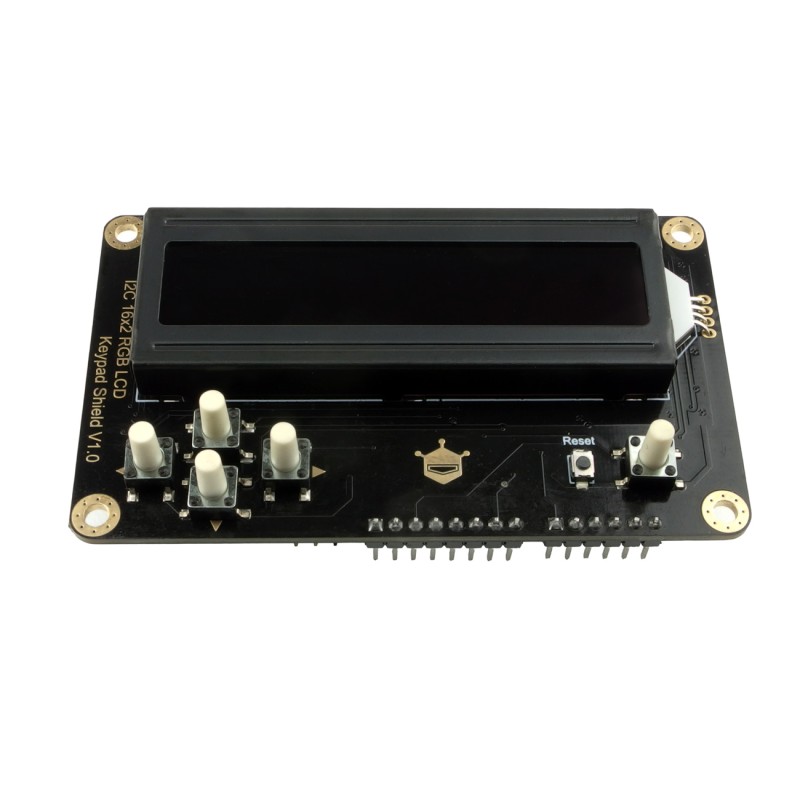

Alphanumeric LCD 16x2 character display module with backlight and RGB text. Equipped with I2C converter and 6 buttons. DFRobot DFR0936
Description
LCD alphanumeric display module with RGB backlight dedicated to Arduino boards. The content is displayed in two rows of 16 characters each, and the text color can be configured by the user and take any color from the RGB palette. The module is equipped with an I2C converter, which greatly simplifies the operation of the display and reduces the number of microcontroller pins needed for the SDL and SDA lines of the I2C interface. The converter board also features 6 buttons (5 for user use and reset) and connectors with Ardunio pins, so you can easily attach additional sensors to the board and display measurements on the display. Full documentation is available on the product page.
Features
- LCD display
- Resolution: 16x2 characters
- I2C interface
- Arduino connectors
- Reset button and 5 user buttons
- LED backlight: RGB
- Text color: RGB
- Power supply: 3.3 V to 5 V
- Current consumption: <0.8 mA
- Dimensions: 87 x 52 x 14.8 mm
1183266
Data sheet
- Screen type
- LCD alfanumeric
- Diagonal (inch)
- Nie dotyczy
- Resolution
- 2 x 16 characters
- Interface
- I2C
- Touch
- No
Manufacturer BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
Responsible person BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
