3.5-inch DSI touchscreen with an IPS panel, 5-point capacitive touch, and 640 × 480 resolution, designed for Raspberry Pi series boards. Waveshare 3.5inch DSI LCD (E)

6 weeks
Awaiting delivery
Kamami is the official distributor of Waveshare displays, accessories and modules.

Description

Waveshare 33086 is a compact DSI touchscreen display designed for use with Raspberry Pi series boards. The integrated 3.5-inch IPS panel with a resolution of 640 × 480 pixels provides a 4:3 aspect ratio, wide viewing angles up to 170°, and good readability for embedded applications, user interfaces, and educational projects.

The display uses the DSI interface, allowing direct connection to the dedicated Raspberry Pi connector without occupying GPIO pins. The native screen orientation corresponds to landscape mode (640 × 480), with the option to change orientation through software configuration.

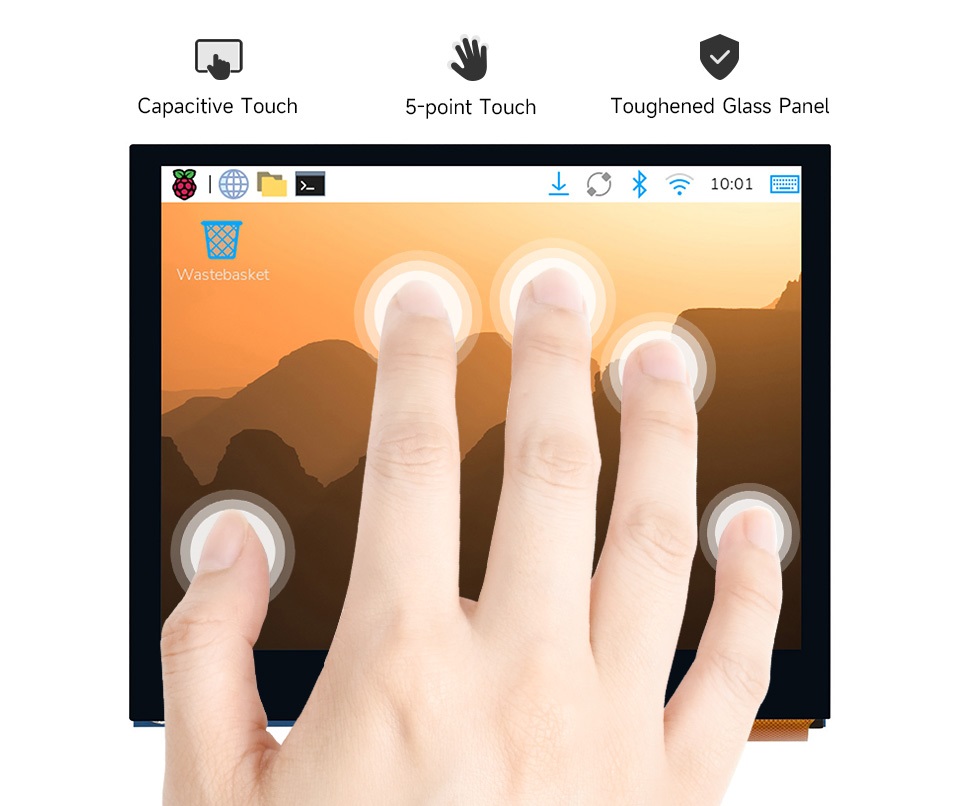

The integrated capacitive touch panel supports up to five simultaneous touch points and communicates via the I2C bus. The front surface is protected by tempered glass with hardness up to 6H, improving resistance to scratches and mechanical damage. Touch operation is supported natively under Raspberry Pi OS, ensuring full software compatibility.

The solution targets HMI interfaces, control panels, measurement systems, educational projects, and embedded devices where a compact touchscreen with classic 4:3 proportions and straightforward Raspberry Pi integration is required. The product is offered by Waveshare, a company specializing in display solutions for embedded systems.

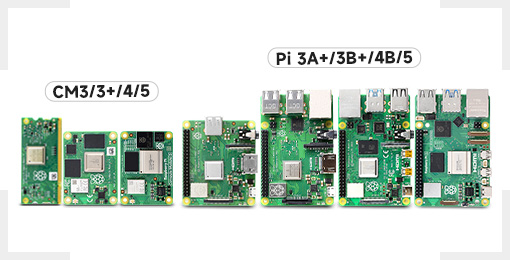

                                                                                                                  Compatibile with Raspberry



Features

  • Display
    • Diagonal size: 3.5 inch
    • Panel type: IPS
    • Resolution: 640 × 480
    • Viewing angle: 170°
    • Default orientation: landscape (H × V)
  • Touch Panel
    • Type: capacitive
    • Touch points: up to 5
    • Touch interface: I2C
    • Protective glass: tempered, hardness up to 6H
  • Interface
    • Display interface: DSI
    • Connector: FPC ribbon cable
  • Compatibility
    • Supported boards: Raspberry Pi (including Raspberry Pi 3B+, 4, 5)
    • Supported OS: Raspberry Pi OS
  • Mechanical Parameters
    • Weight: approx. 0.096 kg

Kit includes

  • 1 × 3.5inch DSI LCD (E) display
  • 1 × 15-pin FPC ribbon cable, 1.0 mm pitch, 50 mm length (opposite contacts)
  • 1 × DSI cable, 12 cm length
  • 1 × 15-pin FPC ribbon cable, 1.0 mm pitch, 160 mm length (opposite contacts)
  • 1 × mounting standoff set
1202653

Data sheet

Screen type
IPS
Diagonal (inch)
3,5
Resolution
640 x 480 px
Interface
DSI
Touch
Yes
