9" IPS DSI display with capacitive touch panel 720x1280 - Waveshare 32772

Description

9-inch DSI display designed for applications requiring clear image presentation, high color quality, and multi-touch operation. The IPS panel with a 720 x 1280 resolution operates in portrait orientation by default, enabling the development of modern user interfaces, control panels, and visual applications. Display orientation can be changed to landscape mode via software configuration.

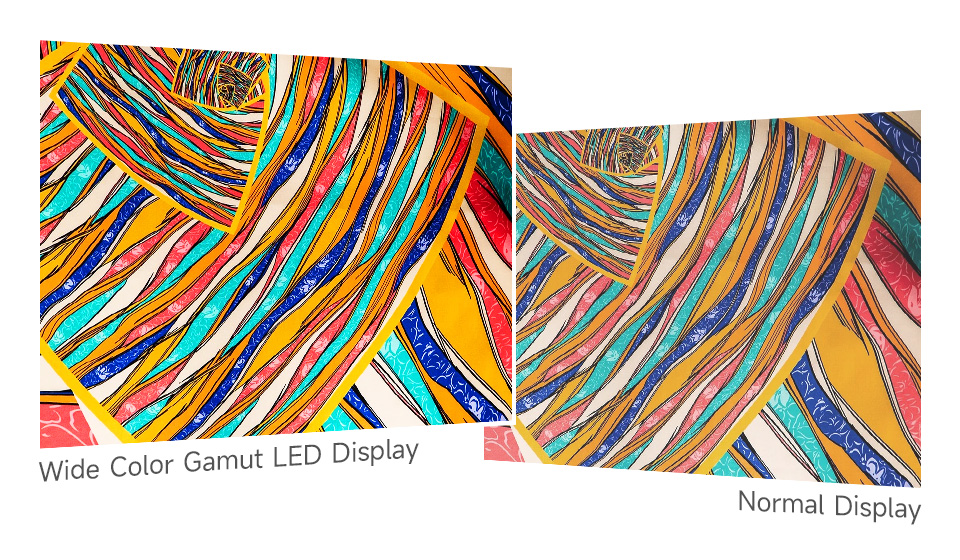

The use of Wide Color Gamut LED technology provides an extended color space and improved color reproduction compared to standard LCD displays. A 160° viewing angle ensures consistent image quality regardless of the viewing position, which is important in operator panels and presentation systems.

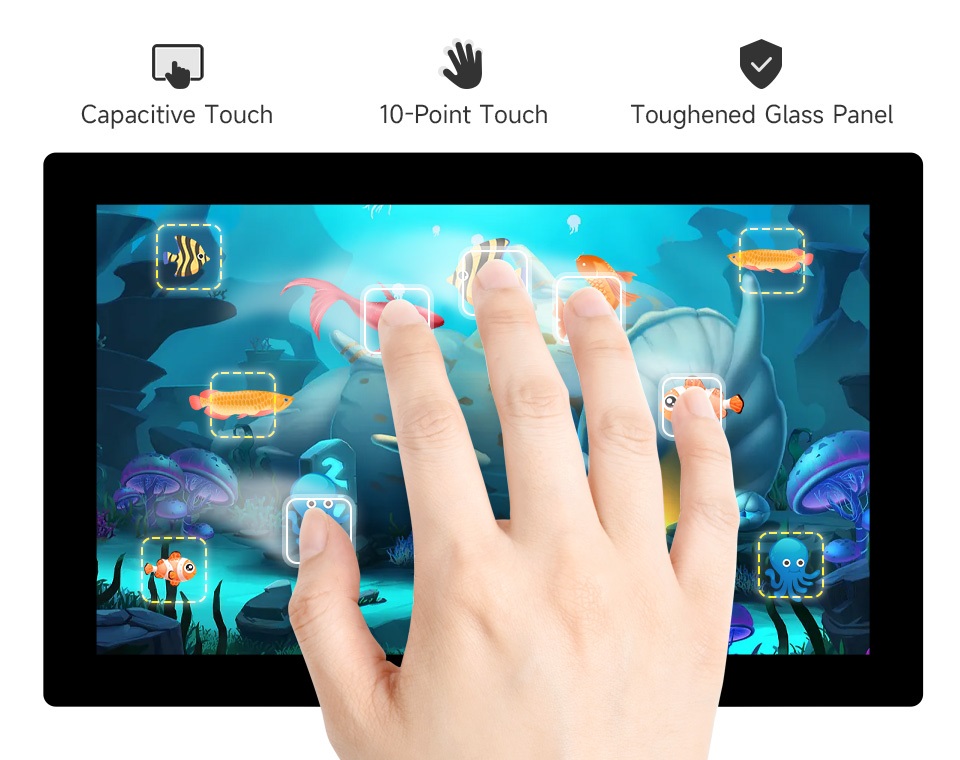

The display is equipped with a capacitive touch panel supporting up to 10 touch points, depending on the operating system. The touch surface is covered with toughened glass with hardness up to 6H, increasing mechanical durability and suitability for industrial and educational environments. Touch communication is handled via the I2C interface.

The MIPI DSI interface enables direct connection to platforms such as Raspberry Pi, as well as selected systems based on RK3576, RK3506, and ESP32-P4, including applications built with the LVGL graphics library. Backlight brightness can be adjusted via software. The display is suitable for use in HMI systems, operator panels, IoT projects, multimedia kiosks, and educational solutions.

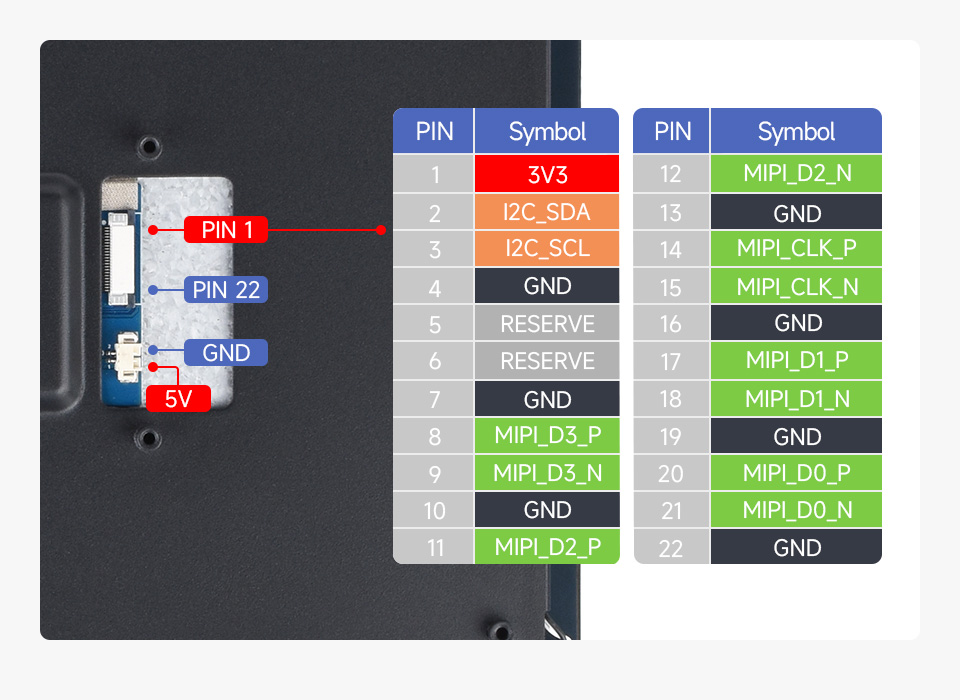

                                                                                                                             Pin definition

Features

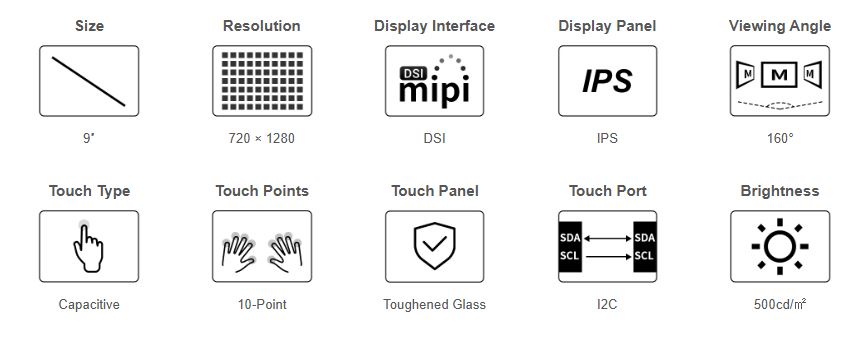

• Display type: IPS LCD
• Display size: 9 inch
• Resolution: 720 x 1280
• Default orientation: Portrait
• Video interface: MIPI DSI
• Viewing angle: 160°
• Brightness: 500 cd/㎡
• Color technology: Wide Color Gamut
• Touch panel type: Capacitive
• Number of touch points: Up to 10
• Touch interface: I2C
• Protective panel: Toughened glass
• Glass hardness: Up to 6H
• Brightness adjustment: Software-controlled
• Compatibility: Raspberry Pi, RK3576, RK3506, ESP32-P4
• Weight: 0.63 kg

Kit includes

• 9-DSI-TOUCH-B display
• 12 cm MIPI DSI cable
• MX1.25 2-pin to 2.54 mm 3-pin cable
• FFC 22-pin cables approx. 200 mm (opposite-side contacts) x2
• MX1.25 2-pin to MX1.25 4-pin cable approx. 150 mm
• Mounting screws set
