21.5 inch Full HD HDMI Touch Monitor + Raspberry Pi 5 2GB - Waveshare 32008
ID: 1199748
zł2,828.36
Tax included
zł2,299.48 tax excl.

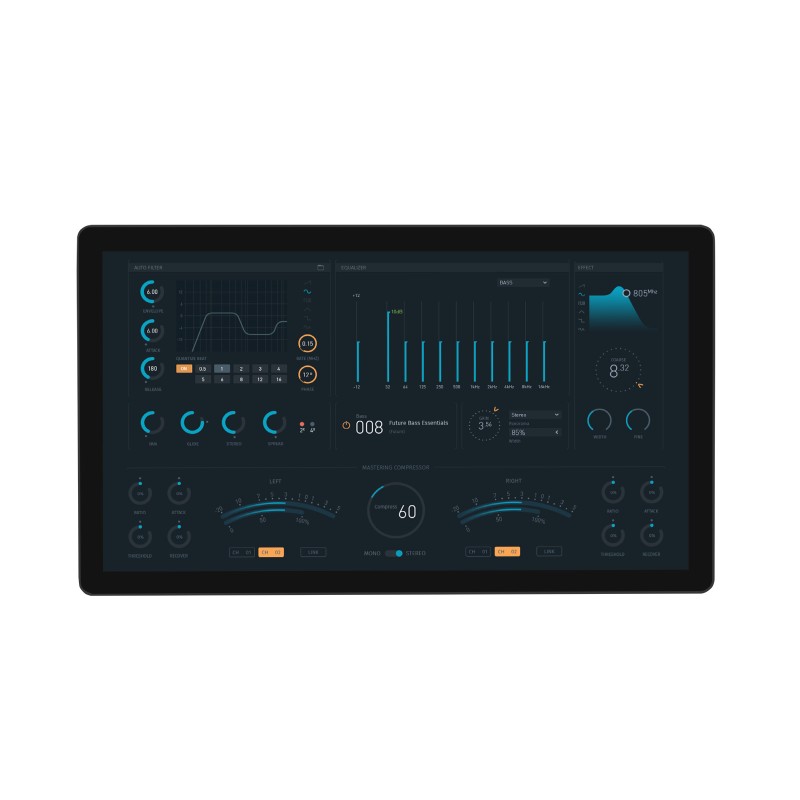

21.5 inch Full HD touch monitor with a 10-point capacitive panel, toughened glass with optical bonding and HDMI interface, equipped with a built-in Raspberry Pi 5 2GB module. Waveshare 21.5inch FHD Monitor (D) (EU)
Description
The Waveshare 32008 touch monitor is designed for industrial, commercial and educational applications where high image quality, reliable touch operation and compact system integration are required. The 21.5 inch IPS panel with a resolution of 1920 x 1080 provides wide viewing angles up to 170° and good color reproduction, supporting use in multi-user environments.

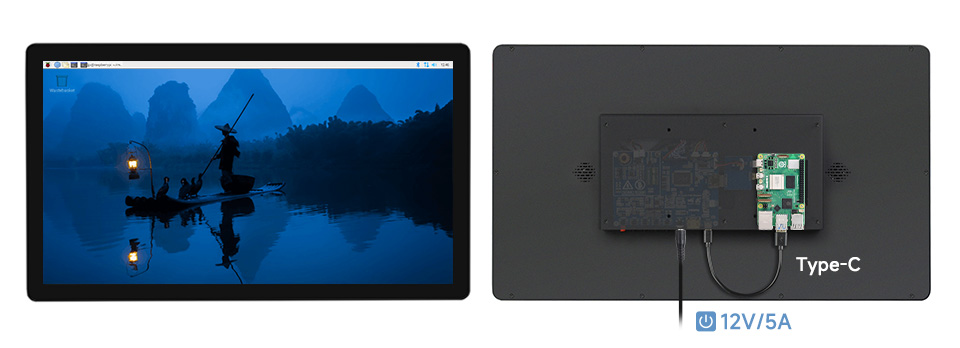

The capacitive touch panel supports up to 10 touch points depending on the operating system, while toughened glass with up to 6H hardness and optical bonding technology improves image clarity and reduces dust accumulation. The version designated as 21.5inch FHD Monitor (D) includes a Raspberry Pi 5 2GB module, enabling the creation of a standalone HMI station or terminal without the need for an external computer.
The aluminum alloy enclosure increases mechanical durability, and compatibility with the VESA 100 x 100 mm standard allows mounting on monitor arms and wall brackets. Built-in Hi-Fi speakers enable audio playback without additional accessories, and the OSD menu allows adjustment of display parameters.
Features
- Screen size: 21.5 inch
- Resolution: 1920 x 1080
- Panel type: IPS
- Viewing angles: 170°
- Display colors: 16.7 M
- Display interface: HDMI
- Touch type: capacitive
- Touch points: up to 10
- Touch panel: toughened glass
- Panel technology: optical bonding
- Touch interface: USB Type-C
- Enclosure: aluminum alloy
- Mounting: VESA 100 x 100 mm
- Operating temperature range: -5°C ~ 60°C
- Audio: built-in Hi-Fi speakers
- Built-in module: Raspberry Pi 5 2GB
- Power supply: 12 V
Kit includes
- 21.5inch FHD Monitor (D) touch monitor - 1 pc
- Raspberry Pi 5 2GB module - 1 pc
- 16 GB TF card - 1 pc
- Pi5 Active Cooler - 1 pc
- USB-A to USB-C cable ~15 cm - 1 pc
- 5 W thermal pad - 1 pc
- 12 V 5 A EU power supply - 1 pc
1199748
Data sheet
- Screen type
- IPS
- Diagonal (inch)
- 21,5
- Resolution
- 1920 x 1080 px
- Interface
- HDMI
- Touch
- Yes
