VIFLY StoreSafe - LiPo 2S-6S Discharger XT
ID: 1209241
zł28.38
Tax included
zł23.07 tax excl.

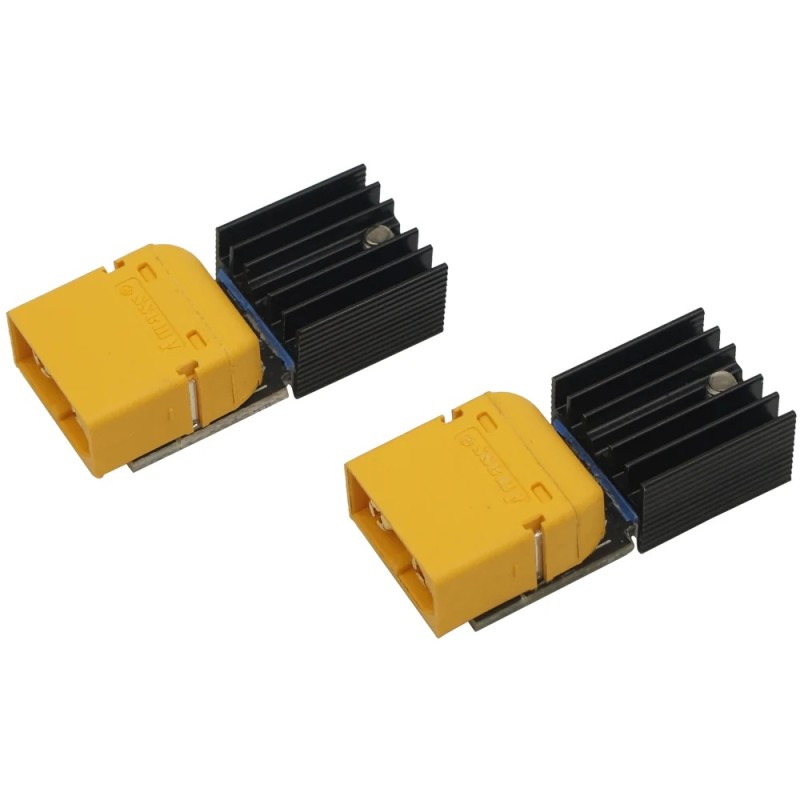

Automatic discharger designed to reduce the voltage of 2S-6S LiPo batteries to a suitable storage level. The device automatically detects the number of cells, stops discharging at 3.85 V ± 0.08 V per cell, and uses a temperature sensor and heatsink to control temperature during operation. VIFLY StoreSafe XT60.
Description
Automatic LiPo battery discharger prepares 2S-6S battery packs for long-term storage by reducing the voltage of each cell to approximately 3.85 V. After connecting the battery, the device automatically detects its voltage without requiring manual selection of the number of cells. The control algorithm and built-in temperature sensor adjust the discharging process according to the battery voltage and device temperature.
The heatsink supports heat dissipation during operation with a discharge power of up to 1 W. Once the storage voltage is reached, the discharging process stops automatically and current consumption drops below 10 µA, limiting further discharge of the connected battery pack. The XT60 version supports batteries with an operating voltage from 7.9 V to 26 V.
Features
- Application: discharging LiPo batteries to storage voltage
- Supported batteries: LiPo 2S-6S
- Automatic cell count detection
- Operating voltage: 7.9 - 26 V
- Storage voltage: 3.85 V ± 0.08 V per cell
- Discharge power: 1 W
- Automatic discharge termination
- Current consumption after discharge: < 10 µA
- Built-in temperature sensor
- Heatsink for heat dissipation
- Connector: XT60
- Dimensions: 37 x 16 x 10 mm
- Weight: 8 g
Kit includes
- VIFLY StoreSafe XT60 discharger - 2 pcs.
1209241
