Charger for Electric Cars Akyga CEE 5pin Type2 LCD 3-Phases 32A 22kW 5m
ID: 1196315
zł1,586.40
Tax included
zł1,289.76 tax excl.
The Akyga® AK-EC-22 is a professional three-phase charger designed for fast and safe charging of electric vehicles using the Type 2 standard. Featuring adjustable current settings, advanced safety protections, and compatibility with 400 V power systems, the charger offers both convenience and flexibility for use in residential and commercial environments.
Description

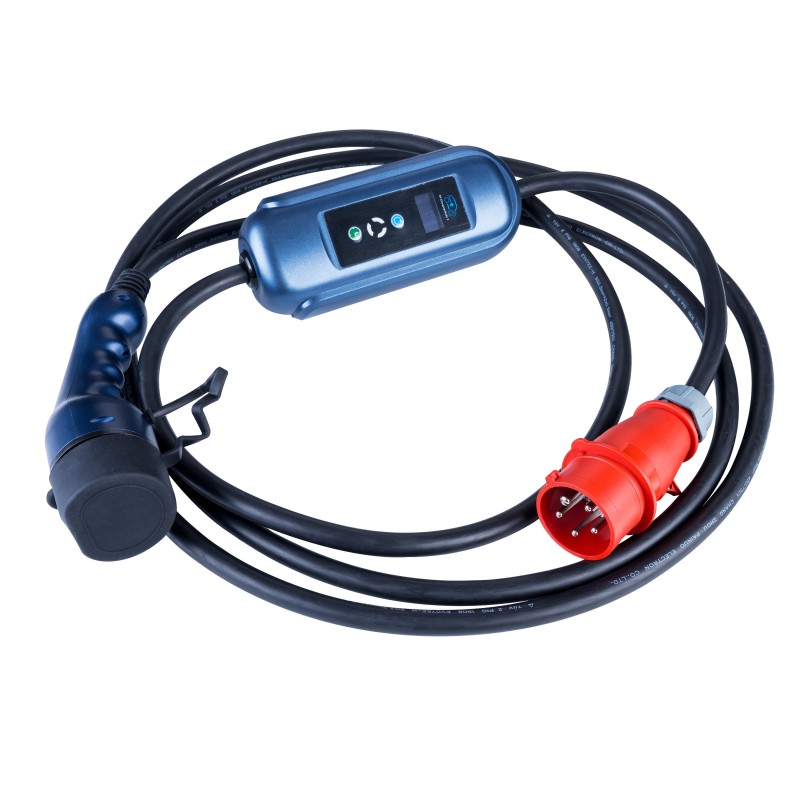

The Akyga® AK-EC-22 is a three-phase charger designed for efficient and safe charging of electric vehicles, equipped with a 5-meter cable featuring CEE 5-pin and Type 2 connectors. The Type 2 plug ensures compatibility with most electric vehicles on the European market, while the CEE 5-pin connector allows direct connection to 400 V installations, enabling full charging power up to 22 kW.
The charger features a ControlBox with an LCD display, allowing adjustment of the charging current in steps of 10 A, 16 A, 24 A, and 32 A, as well as real-time monitoring of operating parameters. Integrated safety systems including OVP, OCP, OPP, OTP, SCP, and Type B RCD effectively protect the charger and vehicle against overvoltage, overheating, overloads, and current leakage.
Thanks to its high IP54 ingress protection rating and materials resistant to damage and varying weather conditions, the Akyga® AK-EC-22 is perfectly suited for use in garages as well as outdoor environments.
Specifications
- Input voltage: 240–450 V AC, 50/60 Hz
- Number of phases: 3 phases
- Maximum current: 32 A
- Maximum charging power: 22 kW
- Plug #1: CEE 5-pin (IEC 60309)
- Plug #2: Type 2 female connector (IEC 62196-2)
- Cable length: 5 m
- Cable cross-section: 5 × 6 mm² + 2 × 0.5 mm²
- Insulation material: TPE
- Housing material: ABS
- LCD display: yes
- Adjustable current: 10 A / 16 A / 24 A / 32 A
- Ingress protection rating: IP54
- Protections: OVP, OCP, OPP, OTP, SCP, Type B RCD
- Flame resistance: UL94V-0
- Operating temperature: from -30°C to +50°C
- MTBF: 10,000 h
- Product color: blue
- Product dimensions: 5000 × 150 × 85 mm
- Net weight: 4.2 kg
- Compliance: CE, FCC, RoHS, REACH
1196315
Manufacturer AKYGA EUROPE SPÓŁKA Z OGRANICZONĄ ODPOWIEDZIALNOŚCIĄ Wrocławska 1C 52-200 Suchy Dwór Poland contact@akyga.com
Responsible person AKYGA EUROPE SPÓŁKA Z OGRANICZONĄ ODPOWIEDZIALNOŚCIĄ Wrocławska 1C 52-200 Suchy Dwór Poland contact@akyga.com
