- New

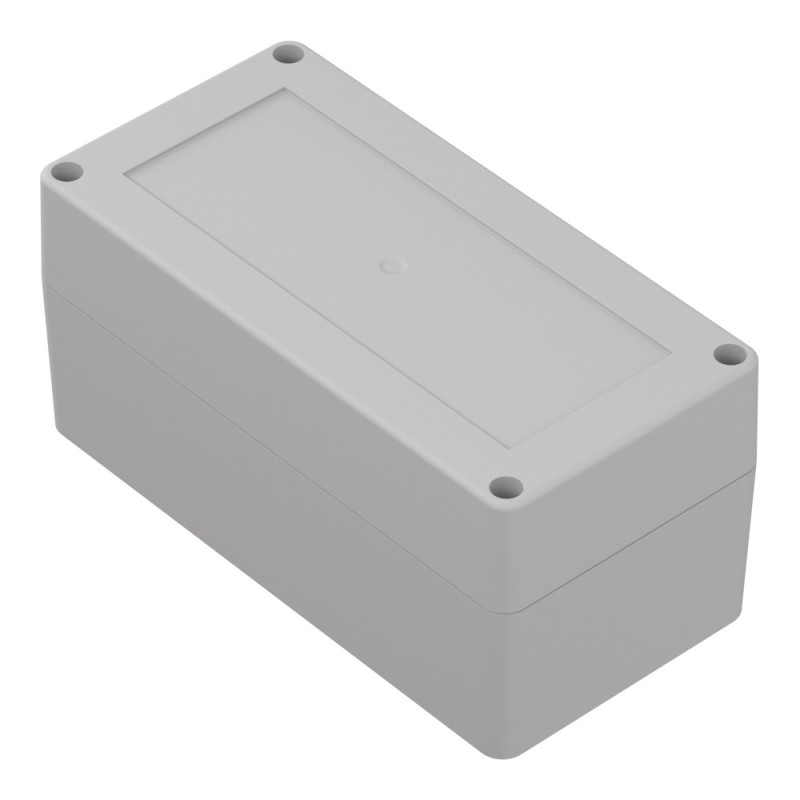

ZP160.80.75SJ-IP67 TM ABS – Hermetic enclosure ABS, light gray, brass inserts, Kradex
ID: 1200764
zł51.27
Tax included
zł41.68 tax excl.
Hermetic enclosure ZP160.80.75 made of ABS with poured gasket and brass inserts intended for industrial applications where protection against moisture, dust and temporary immersion in accordance with IP67 standard is required.
Description
Enclosure ZP160.80.75 made of ABS material intended for protecting electronic systems in conditions requiring increased tightness. The cover integrated with a poured gasket provides IP67 protection rating, protecting the interior against dust and temporary immersion in water. The enclosure is equipped with mounting posts with brass inserts enabling durable mounting of PCB boards, modules or DIN rails. The cover is fastened with captive screws, increasing the convenience of installation and servicing.
Properties
- Type: Full
- Variant: With poured gasket and brass inserts
- Material: ABS
- Color: Light gray
- Height: 75.0 mm
- Width: 80.0 mm
- Length: 160.0 mm
- Protection rating: IP67
Included
- M3/17/10 screw – 4 pcs.
1200764
Data sheet
- Colour
- Jasnoszary
- Materiał
- ABS
- Hermetyczna
- Tak
- Brass bushings
- Tak
- Tightness class
- IP67
- Strength class
- none
- Length
- 160 mm
- Width
- 80 mm
- Height
- 75 mm
- Housing type
- Universal
- Flammability class
- none
Manufacturer Kradex Sp. z o.o. ul. Minerska 4 04-506 Warszawa Poland kradex@kradex.com.pl
Responsible person Kradex Sp. z o.o. ul. Minerska 4 04-506 Warszawa Poland kradex@kradex.com.pl
