Gravity:TT Motor Encoders Kit
ID: 204394
zł59.96
Tax included
zł48.75 tax excl.
This encoders are designed for DFRobot 3PA and AWD Rovers. It can give you the rotation degree of the wheels. Encoder uses non-contact method to convert the angular displacement signals. Best fit with Micro DC Geared Motor. SEN0038
Free shipping
free shipping in Poland for all orders over 500 PLN
Same day shipping
If your payment will be credited to our account by 11:00
14 days for return
Each consumer can return the purchased goods within 14 days
Description
This encoders are designed for DFRobot 3PA and AWD Rovers. It can give you the rotation degree of the wheels. Encoder uses non-contact method to convert the angular displacement signals. Best fit with Micro DC Geared Motor. It includes encoders, plastic tube, paper-mediated gasket etc. It uses Gravity interace which is a plug&play design to get connected with Arduino IO Expansion Shield or Raspberry IO Expansion Shield.
Features
- Voltage:+5V
- Current:<20mA
- Resolution:20 PPR
- Weight:20g

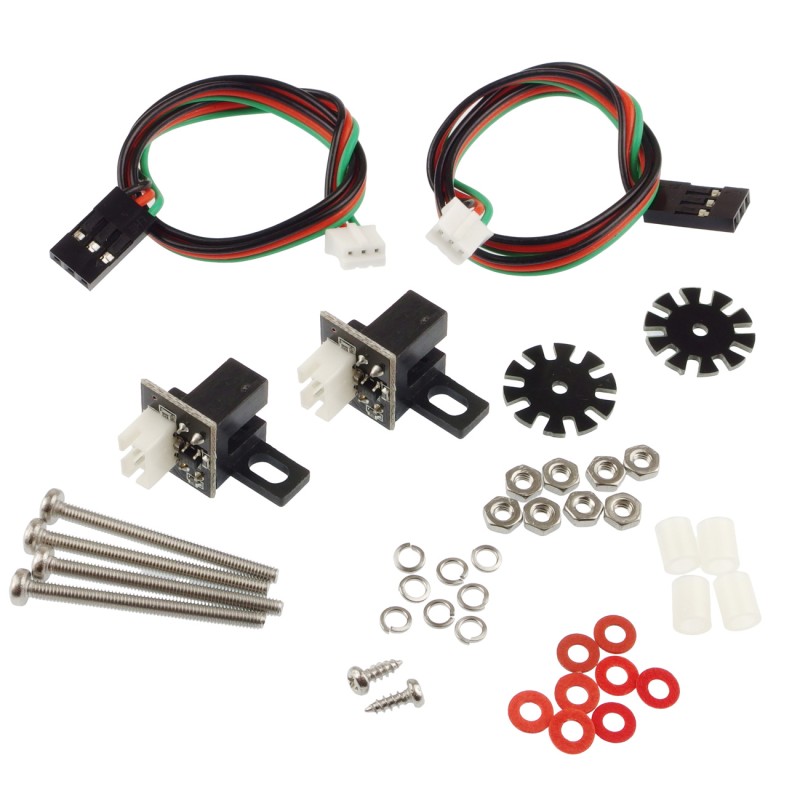

Kit content:
- M3*5 screws x2
- M3*50 screws x4
- Rubber ring x4
- Washer x4
- Plastic cover x4
- Grating disk x2
- Digital cable x2
204394
