ESP32-S3-Touch-LCD-1.47-M
search
  • ESP32-S3-Touch-LCD-1.47-M
  • ESP32-S3-Touch-LCD-1.47-M
  • ESP32-S3-Touch-LCD-1.47-M
  • ESP32-S3-Touch-LCD-1.47-M
ID: 1198944
5902186308831
zł73.14
Tax included

zł59.46 tax excl.

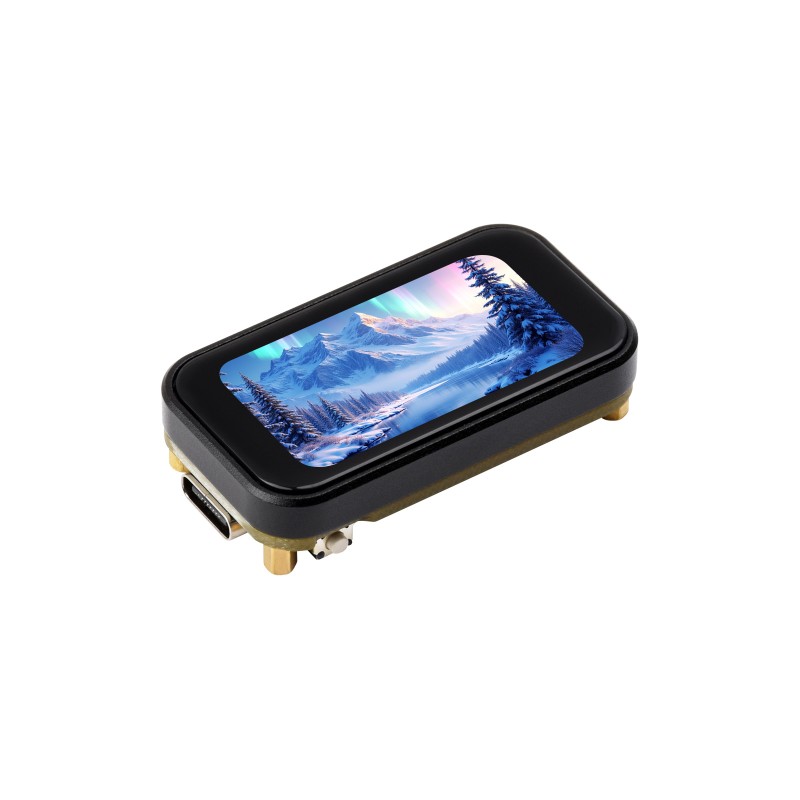

ESP32-S3-Touch-LCD-1.47-M is a compact development board with an ESP32-S3 and a 1.47" IPS touchscreen display, combining high computing performance with a ready set of interfaces and connectors. With factory-soldered pin headers, it is ideal for rapid prototyping of IoT, AIoT, and HMI interface applications.

24h
Available
Available quantity: 3
Kamami is the official distributor of Waveshare displays, accessories and modules.

Description

ESP32-S3-Touch-LCD-1.47-M is a version of the development board with the ESP32-S3R8 chip and factory-soldered pin headers, allowing rapid prototyping and connection of additional modules without the need for soldering. The module features a 1.47" IPS display with a resolution of 172×320 pixels and capacitive touch support, enabling the creation of modern user interfaces (HMI) and the use of graphics libraries such as LVGL.

The ESP32-S3R8 provides a powerful 32-bit dual-core Xtensa LX7 processor running up to 240 MHz, integrated 16 MB Flash, and 8 MB PSRAM, ensuring smooth performance even for more complex IoT and AIoT applications.

Properties

  • Microcontroller: ESP32-S3R8, 32-bit Xtensa LX7 dual-core, up to 240 MHz
  • Memory: 512 KB SRAM, 384 KB ROM, 16 MB Flash, 8 MB PSRAM
  • Display: 1.47" IPS, 172×320 resolution, 262k colors
  • Display driver: JD9853, touch controller AXS5106L
  • Interfaces: 4-wire SPI for display, I2C for touch
  • Connectivity: Wi-Fi 2.4 GHz (802.11 b/g/n), Bluetooth 5 LE, BLE Mesh
  • Support for multiple power-saving modes
  • Built-in ceramic antenna
  • TF card slot for image and file storage
  • USB-C port for power, programming, and communication
  • Buttons: BOOT and RESET
  • Regulator: ME6217C33M5G (LDO, up to 800 mA)
  • Pre-soldered black pin headers – immediate connection of peripherals
  • Dimensions: 44.50 × 24.55 × 10.60 mm
