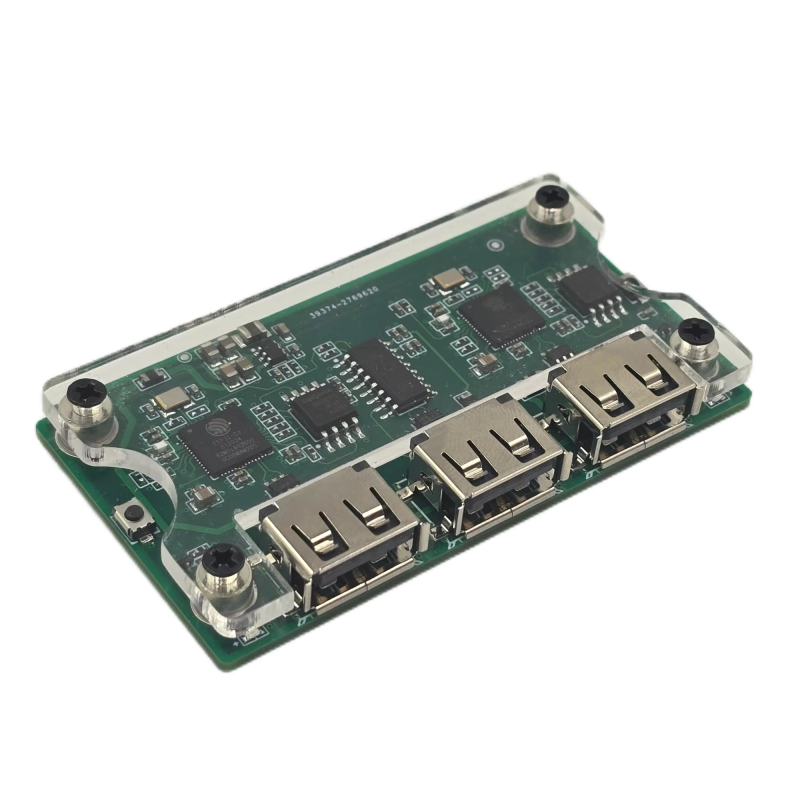

  • Main view
  • Top view
  • Angled view - close-up
  • Angled front view
  • Angled rear view
ID: 1206372
zł103.69
Tax included

zł84.30 tax excl.

Development module equipped with two ESP32-S3 microcontrollers, designed for developing USB HID devices that communicate with computers, USB mice, and keyboards. The board features three USB ports, multiple communication and debugging interfaces, and supports the ESP-IDF development framework. MAKCU ESP32-S3

4 weeks
Awaiting delivery

Description

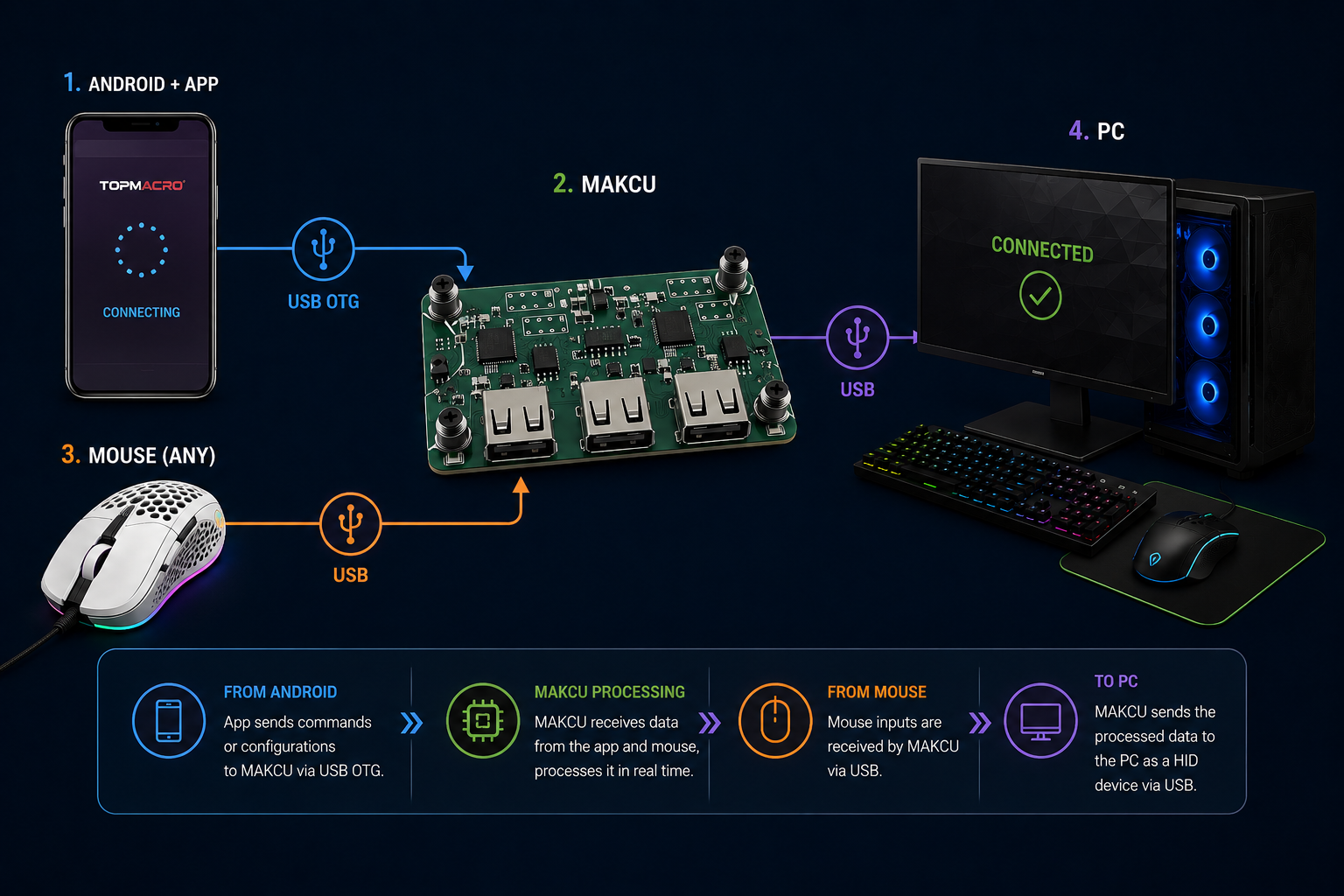

The development module is designed for creating USB HID devices that act as an interface between a computer and USB peripherals such as mice and keyboards. Its dual ESP32-S3 architecture separates USB communication from application logic across two independent microcontrollers. The manufacturer provides support for the ESP-IDF development framework, enabling firmware development and debugging.


The board is equipped with two ESP32-S3 microcontrollers, two W25Q32 Flash memory chips, a CH343G USB-to-UART converter, and three USB ports for programming and communication with a computer. Available GPIO, UART, I2C, SPI, ADC, and DAC interfaces allow integration with peripheral devices and the development of custom USB communication solutions. Each microcontroller can be programmed independently using dedicated buttons and its corresponding USB port.

The module is suitable for developing USB HID devices, USB communication interfaces, controllers, and applications requiring parallel data processing using two ESP32-S3 microcontrollers. The official MAKCU website provides a getting started guide and additional resources for device setup and firmware development.

Features

  • Microcontroller: 2× ESP32-S3
  • Processor: Xtensa® LX7 up to 240 MHz
  • SRAM: 512 KB
  • Flash memory: 2× W25Q32 4 MB
  • Wireless connectivity: WiFi 802.11 b/g/n
  • Wireless connectivity: Bluetooth® 5.0
  • USB-to-UART converter: CH343G
  • USB ports: 3
  • Interfaces: GPIO, UART, I2C, SPI, ADC, DAC
  • ESP-IDF support
  • Independent programming of each microcontroller
  • Programming and reset buttons
  • Low power consumption
